2-12

Dell Dimension L Series Systems Reference and Troubleshooting Guide

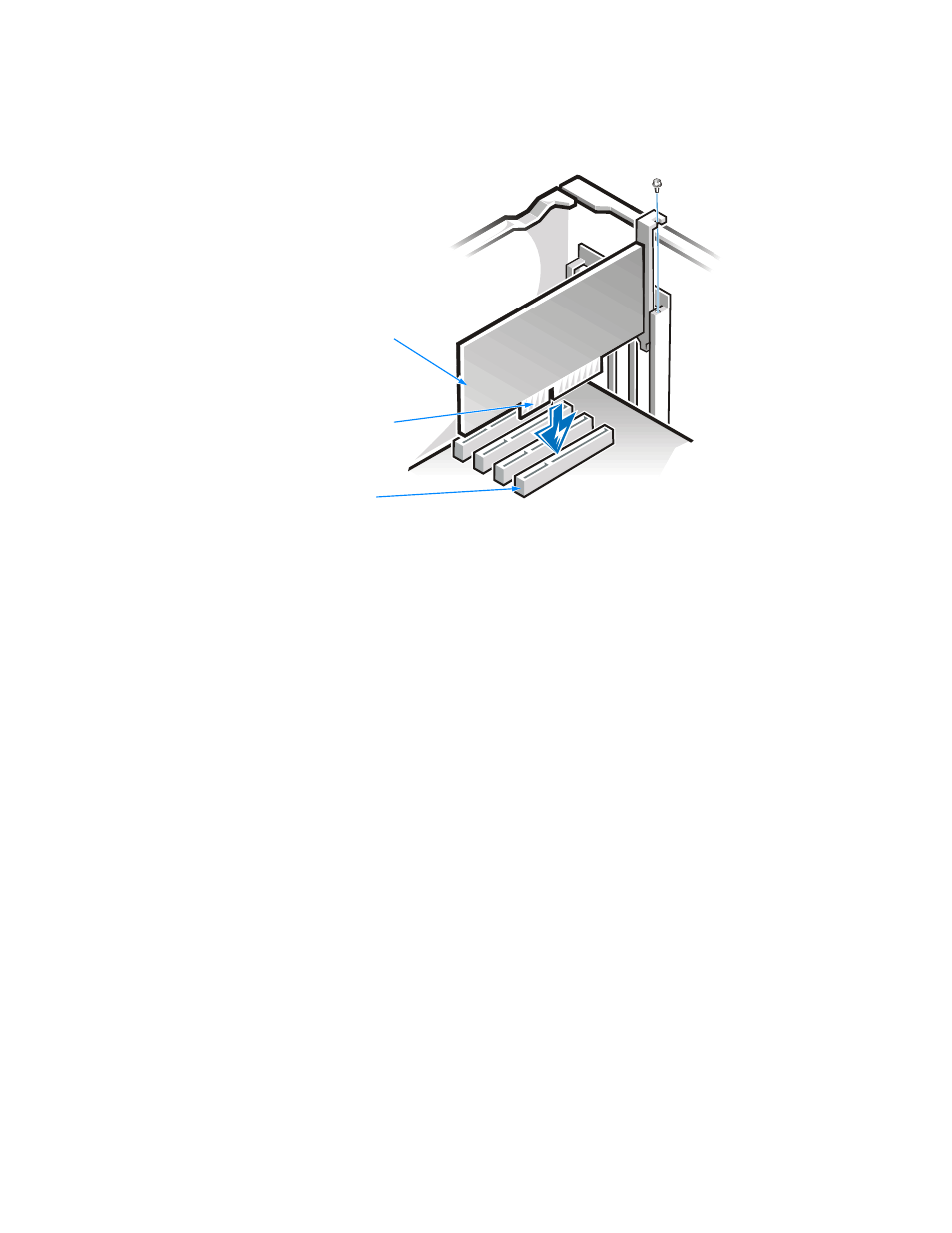

Figure 2-8. Installing an Expansion Card

When the card is firmly seated in the connector, secure the card-mounting
bracket with the screw you removed in step

p 5.

Make sure the front of the card-edge connector is completely seated in the
expansion-card connector. The bottom of the card-mounting bracket must be
inside the card-slot opening, and the top of the bracket must be flush against
the chassis with the notch aligned with the screw hole in the chassis (see
Figure 2-9). “Expansion Cards” in Chapter 6 provides more information on cor-

Expansion Cards” in Chapter 6 provides more information on cor-

rectly seating an expansion card.

card-edge
connector

expansion card

expansion-card
connector
