Rotating the Power Supply Away From the
System Board
To access components on the system board, you must rotate the power supply out of
the way by performing the following steps:
1. Remove the computer cover as instructed in the previous section, “Removing
and Replacing the Computer Cover.”
2. Lay the computer on its side as shown in Figure 2-2.
3. Press the release latch (see Figure 2-2) while lifting the power supply. Rotate the
power supply out of the chassis while keeping the power cables clear.
bles clear.

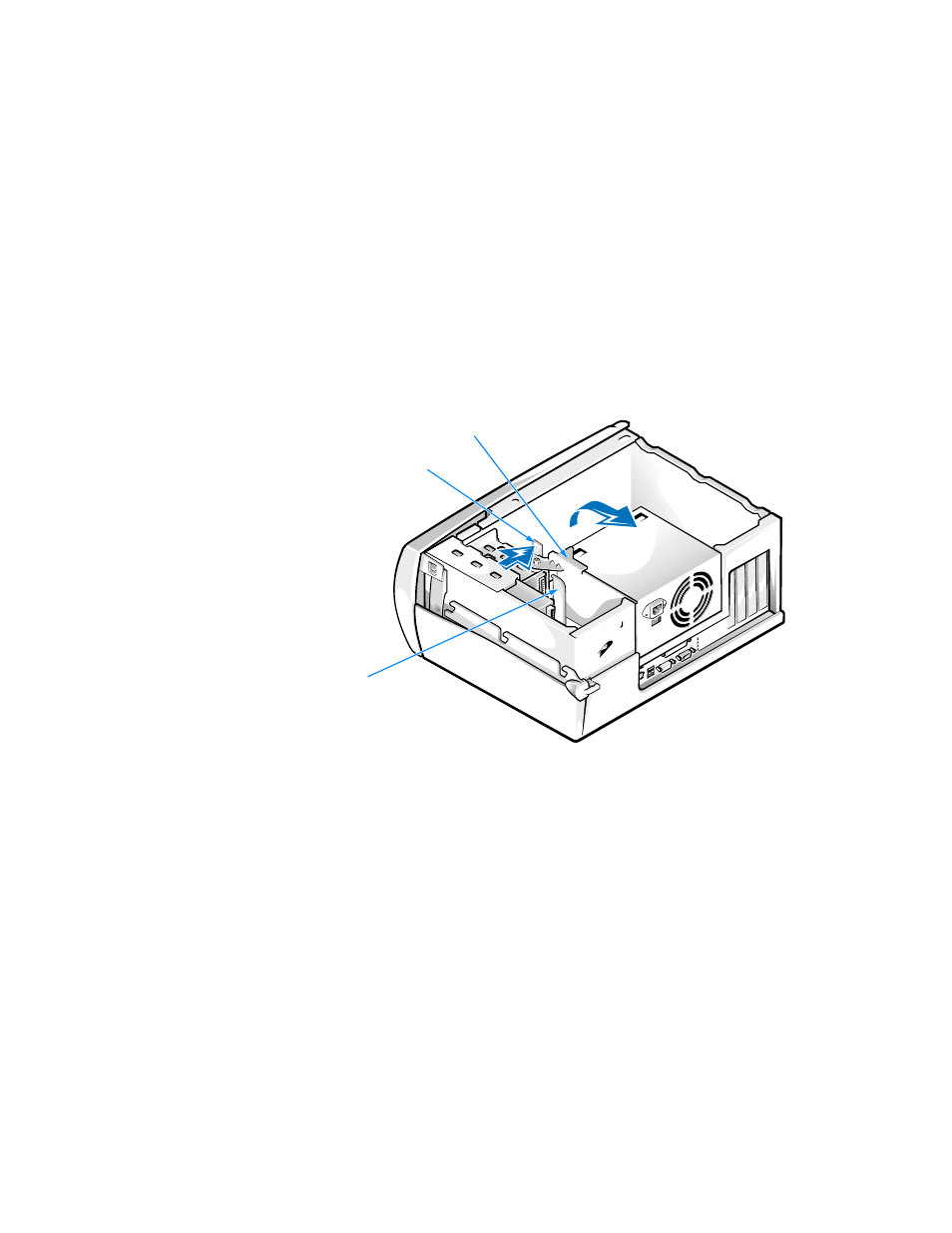

Figure 2-2. Rotating the Power Supply
When you rotate the power supply back into the chassis, gently lift the cable retainer
and hold the drive cables out of the way. Rotate the power supply into position until
its release latch clicks. Wrap the drive cables along the top of the latch in the retainers
as shown in Figure 2-3.
cable retainer
power supply
release latch
