Palm Rest: Dell XPS M1210 Service Manual
file:///C|/Users/santhosh_v.ASIA-PACIFIC/Desktop/Hawke/New%20folder/palmrest.htm[2/21/2014 11:14:43 AM]
8. Disconnect the coin-cell battery cable from the system board.
9. Disconnect the touch-pad connector from the system board.
NOTE:
If you are unable to reach the touch-pad connector with the palm rest in place, you may want to wait
until
when you can raise the palm rest enough to reach under it and access the touch-pad connector.

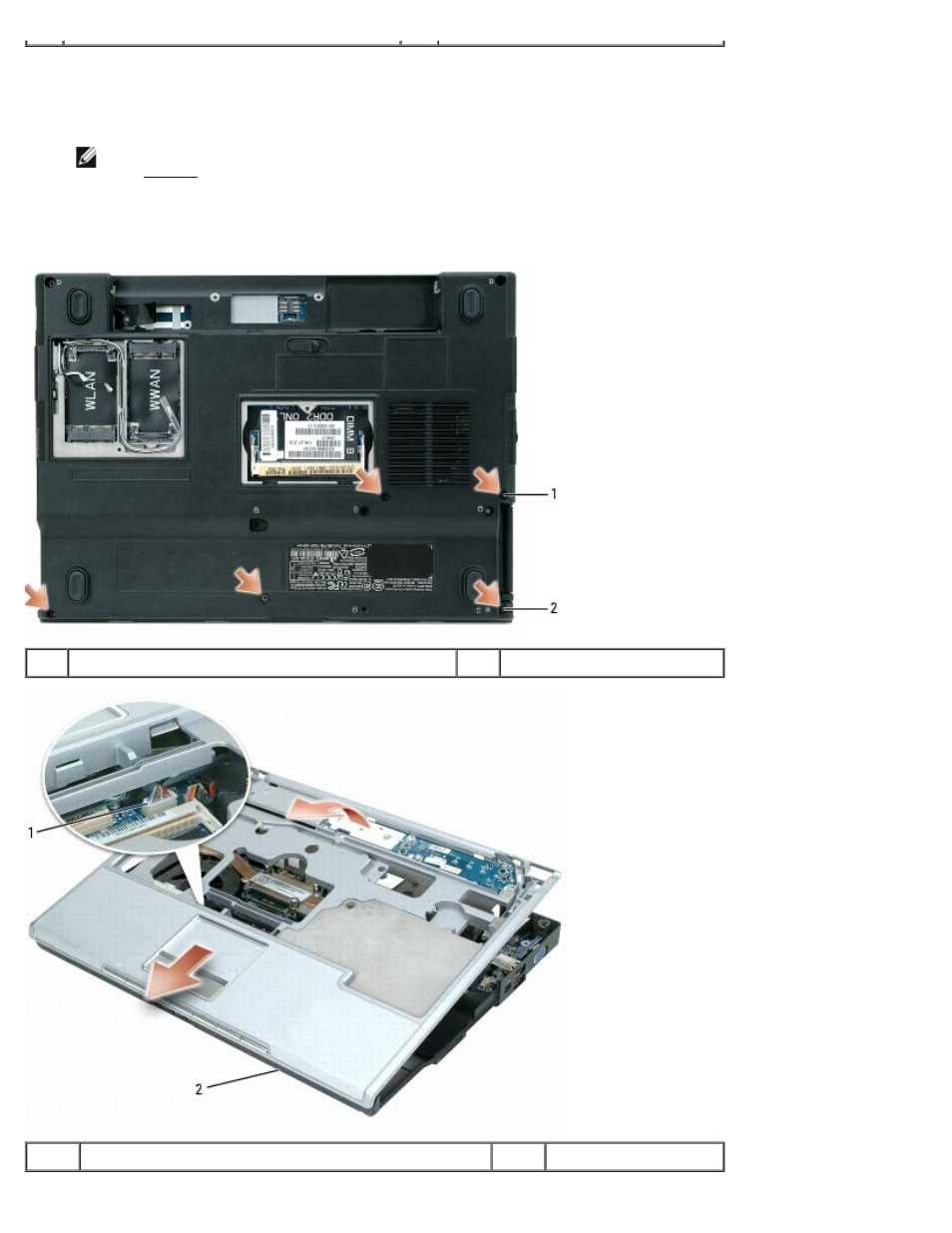

10. Turn the computer upside down, loosen the captive screw, and remove the four M2.5 x 8-mm screws from the bottom
of the computer.
1
M2.5 x 8-mm screws (4)
2
captive screw
1
touch-pad connector
2
tabs (4)
