Display : Dell XPS M1210 Service Manual
file:///C|/Users/santhosh_v.ASIA-PACIFIC/Desktop/Hawke/New%20folder/display.htm[2/21/2014 11:15:04 AM]
2. Remove the display assembly (see Removing the Display Assembly ).
3. Remove the display bezel (see Removing the Display Bezel ).
4. If an optional camera is present on the computer, disconnect the camera cable connector.
5. Remove the four M2 x 3-mm screws (two on each side of the display panel).
6. Remove the M2 x 3-mm ground screw that attaches the display-panel ground wire to the display back cover.
7. Turn the display assembly over so that the display panel is face down and the display hinges are toward you.
8. Lift the display back only enough to allow you to disconnect the speaker connector.
9. Lift the display back cover away from the display panel.
10. Remove the display-panel brackets from the display panel (see Removing the Display-Panel Brackets ).

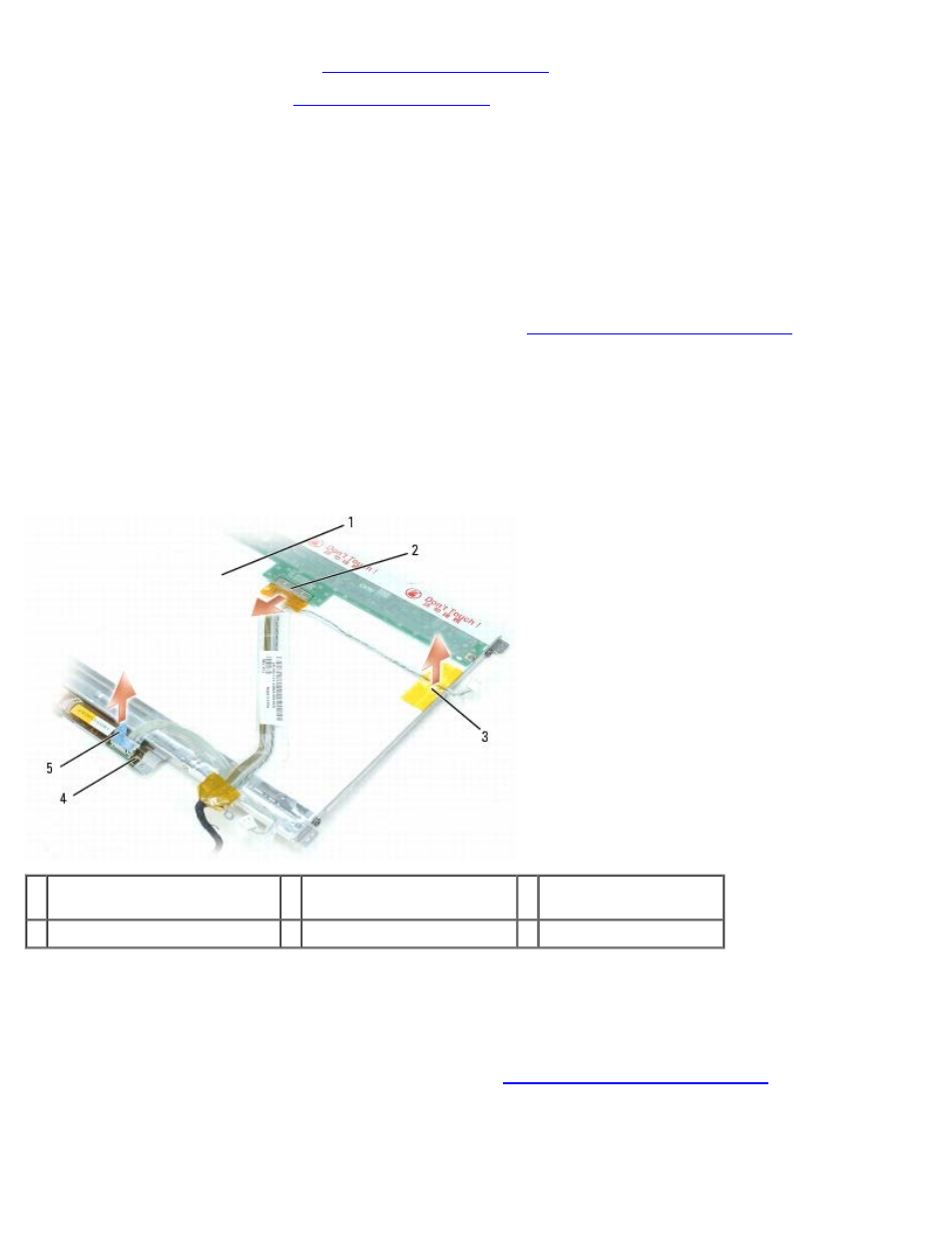

11. Remove the cable assembly from the back of the display panel:
a. Use the pull-tab to disconnect the bottom flex-cable connector from the inverter connector.
b. Lift the tape, if present, as necessary to pull the top flex-cable connector away from the display connector.
c. If an optional camera is present on the computer, lift the tape that holds the camera cable in place on the back
of the display panel.
1 back of display-panel cable
assembly
3 tape holding camera cable
in place
5 pull-tab on inverter
connector
2 top flex-cable connector 4 bottom flex-cable connector
Replacing the Display Panel
1. Reconnect the cable assembly to the back of the display panel.
2. Replace the display-panel brackets on the display panel (see Replacing the Display-Panel Brackets ).
3. Place the display panel inside the display back cover.
4. Reconnect the speaker connector.
