Display : Dell XPS M1210 Service Manual
file:///C|/Users/santhosh_v.ASIA-PACIFIC/Desktop/Hawke/New%20folder/display.htm[2/21/2014 11:15:04 AM]
Replacing the Display Bezel
1. Starting at any corner, use your fingers to gently snap the bezel into place to secure it to the display panel.
NOTE: To facilitate replacement of the display bezel, ensure that the camera connector is tucked in place beside the
display panel before you snap the bezel into place.
2. Replace the four M2.5 x 5-mm screws on the corners of the bezel.
3. Replace the four rubber bumper/screw covers around the bezel.
Display Panel

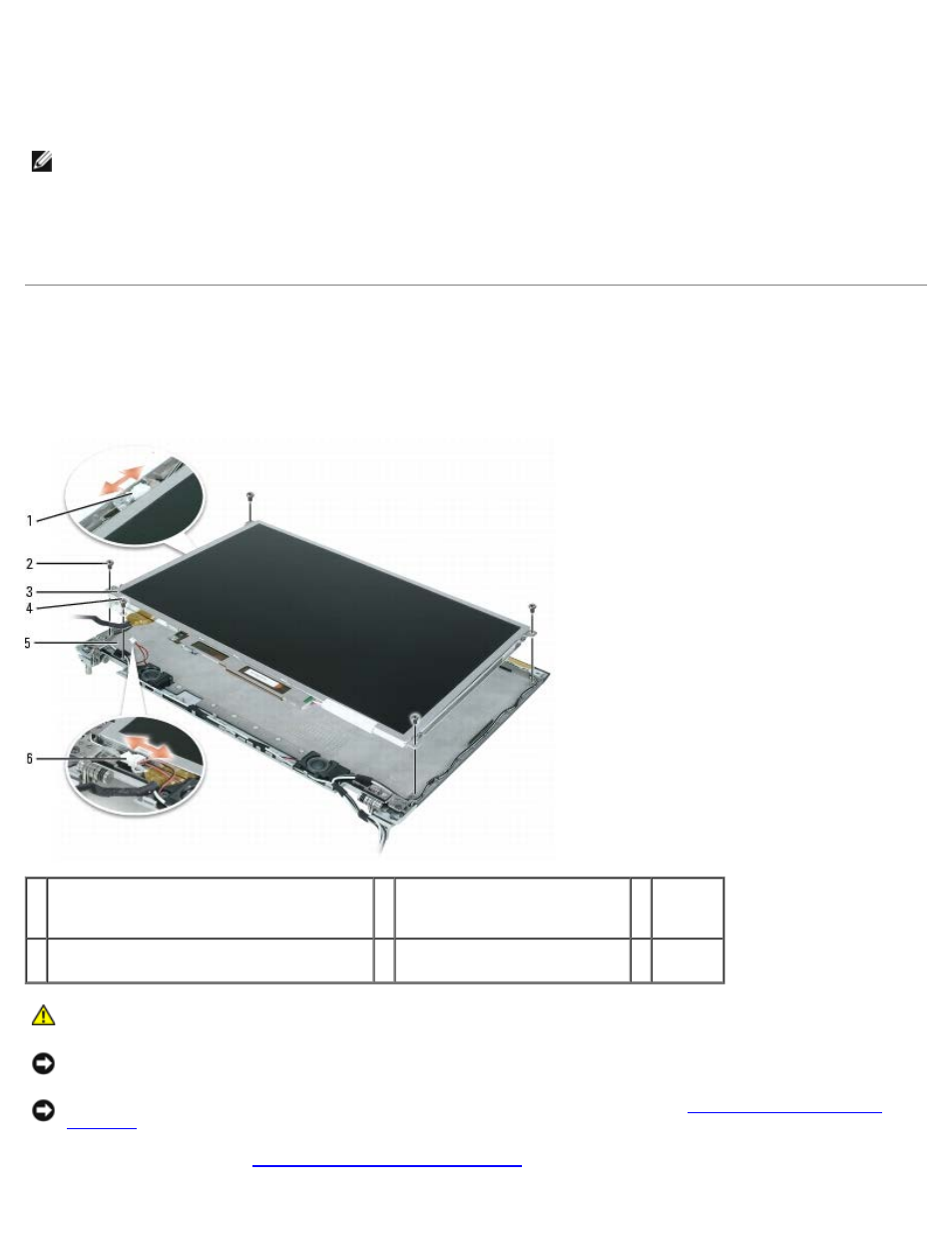

Removing the Display Panel
1 camera cable connector (present only on
computers with an optional camera)
3 display panel 5 display
back
cover
2 M2 x 3-mm screws (4) 4 M2 x 3-mm display-cable
ground screw and ground wire
6 speaker
cable
CAUTION: Before you begin the following procedure, follow the safety instructions in the Product
Information Guide.
NOTICE: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by touching an
unpainted metal surface (such as the back panel) on the computer.
NOTICE: To help prevent damage to the system board, remove the main battery (see Before Working Inside Your
Computer ) before working inside the computer.
1. Follow the instructions in Before Working Inside Your Computer .
