50
Installing and Configuring Hardware
3 Locate the PERC 6/E adapter in the system and disconnect the external
cables from the adapter.
NOTE:
The location of the PERC 6/i varies from system to system. For
information on PERC 6/i card location, see the Hardware Owner’s Manual
shipped with your system or on the Dell Support website at support.dell.com.
4 Remove any retention mechanism, such as a bracket screw, that may be
holding the PERC 6/E in the system and gently lift the controller from the
system’s PCI-E slot. For more information, see Figure 4-7.

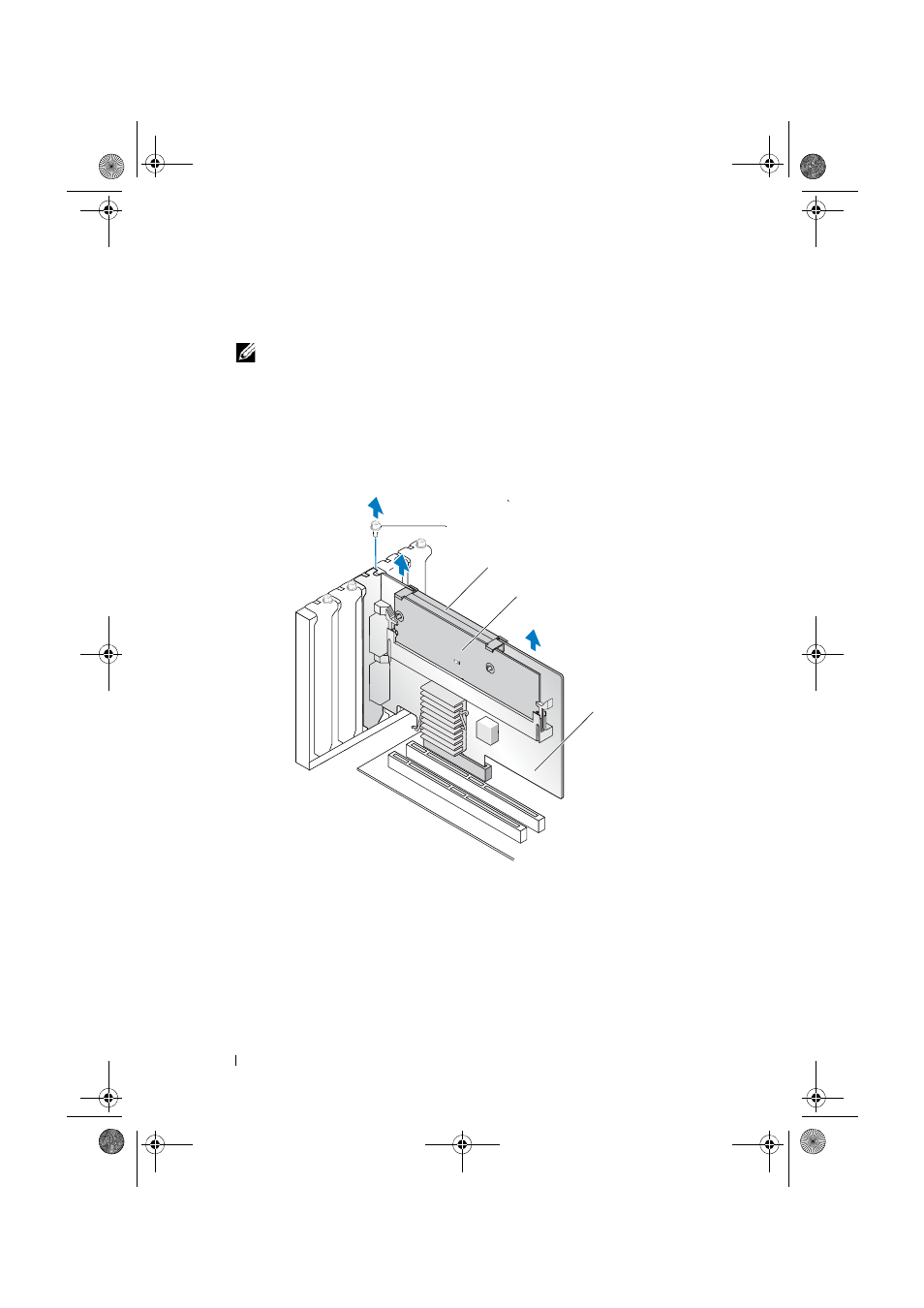

Figure 4-7. Removing the PERC 6/E Adapter
1 bracket screw 3 memory module
2 battery 4 PERC 6/E adapter
4
2
1
3
