130
Troubleshooting
Drive Carrier LED Indicators
The LED on the physical disk carrier indicates the state of each physical disk.
Each drive carrier in your enclosure has two LEDs: an activity LED (green)
and a status LED (bicolor, green/amber) as shown in Figure 7-1. The activity
LED flashes whenever the drive is accessed.

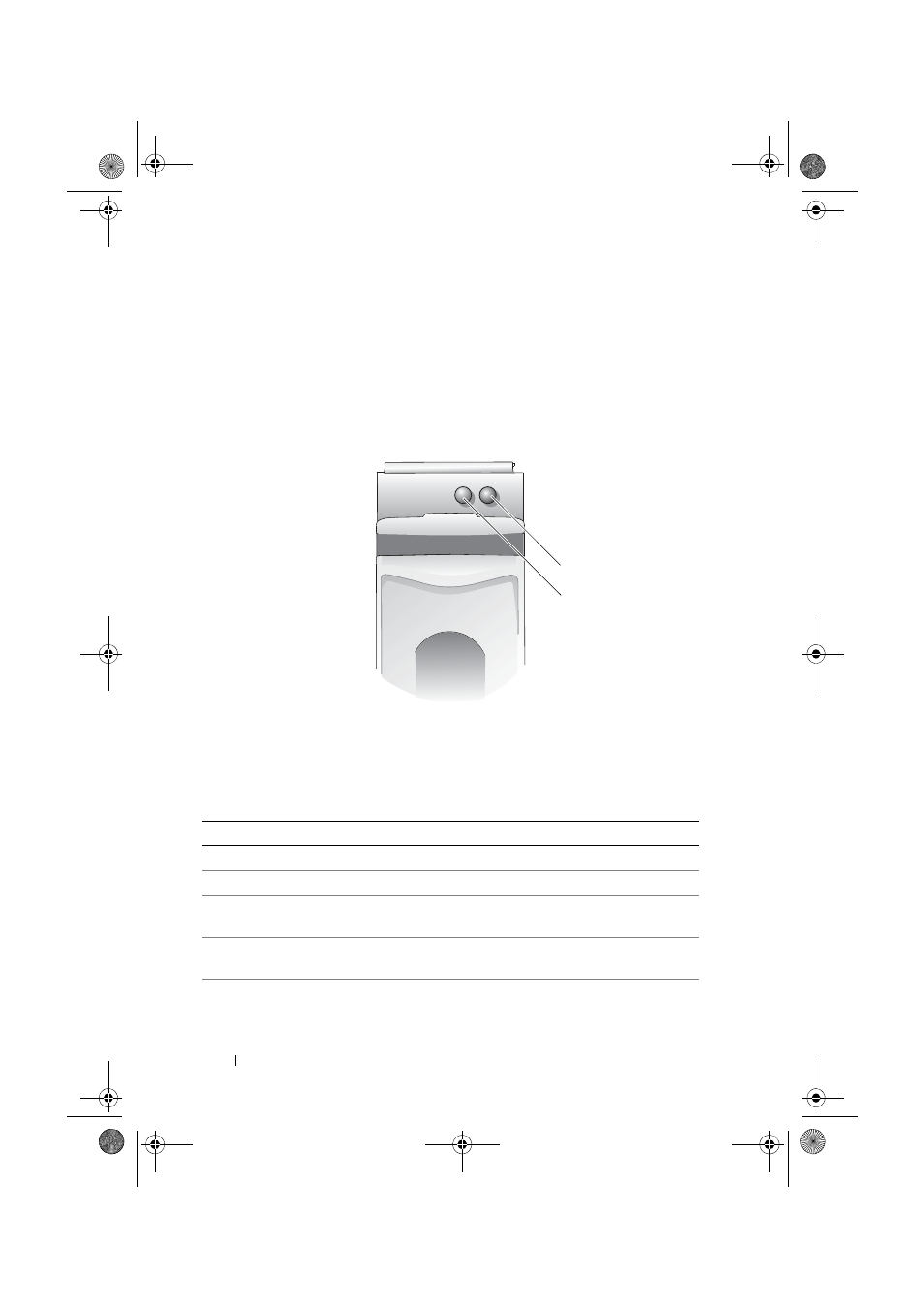

Figure 7-1. Drive Carrier LED Indicators
Table 7-10 lists the flash patterns for the status LED.
1 status LED 2 activity LED
Table 7-10. Drive Carrier Status LEDs
LED Description
Off Slot is empty, drive is not yet discovered by the system
Steady green Drive is online
Green flashing
(250 milliseconds [ms]) Drive is being identified or is being prepared for removal
Green flashing
(On 400 ms, Off 100 ms) Drive is rebuilding or undergoing a Replace Member
operation
Amber flashing
(125 ms) Drive has failed
2
1
