Adding and Replacing Parts

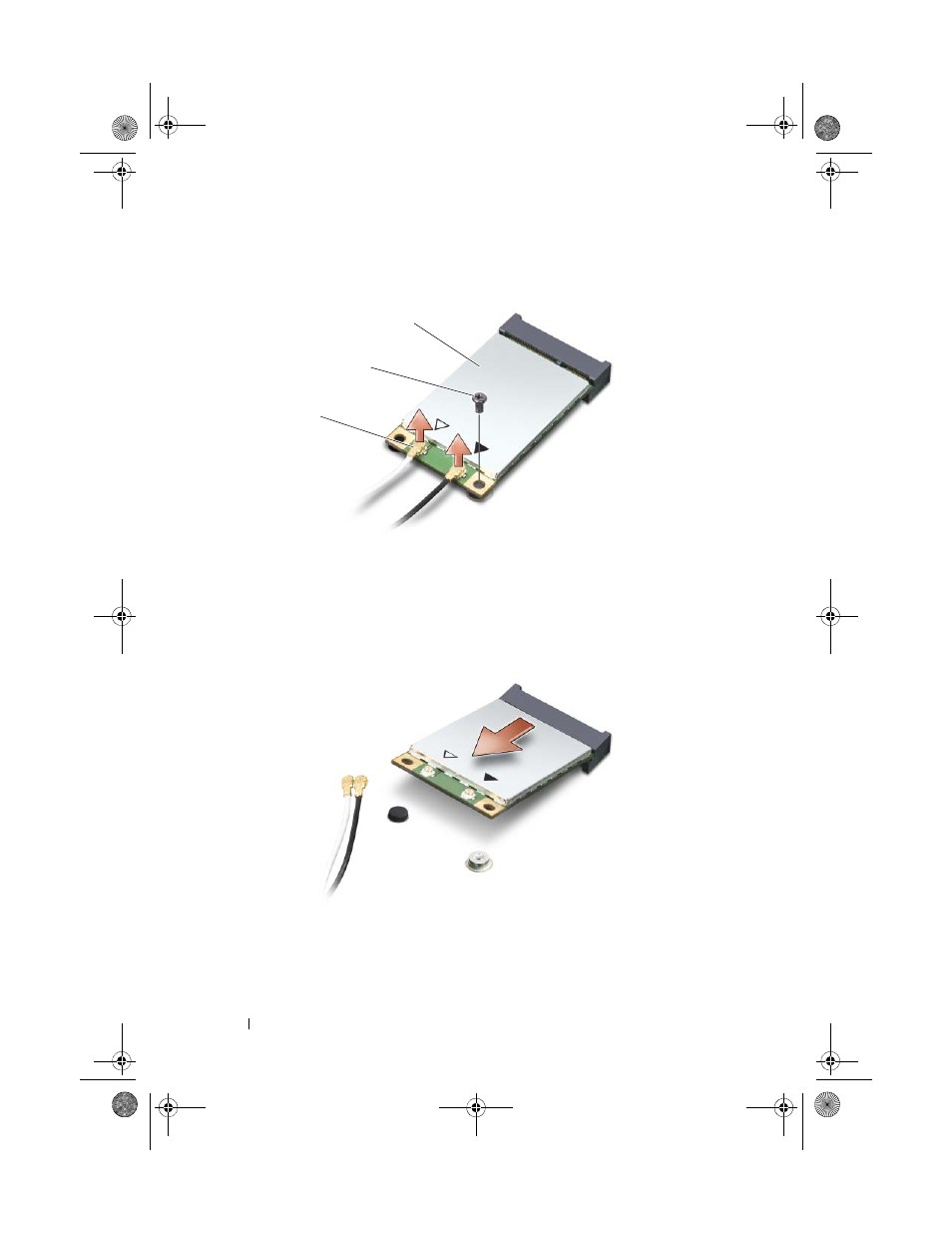

4 Disconnect the antenna cables from the

WLAN

card.

5 Release the

WLAN

card by removing the screw.

6 Lift the

WLAN card

out of its system board connector.

1

WLAN Card

2

M2 x 3-mm

screw

3

antenna cable connectors (2)

3

2

1
