Adding and Replacing Parts
Replacing the Hinge Covers and Center Control Cover
1 Reconnect the cable that attaches the center control cover to the system
board, and snap the center control cover in place.
2 Replace the hinge covers.
3 Turn the computer over and replace the two M2 x 3-mm screws that secure
the center control cover to the computer base.

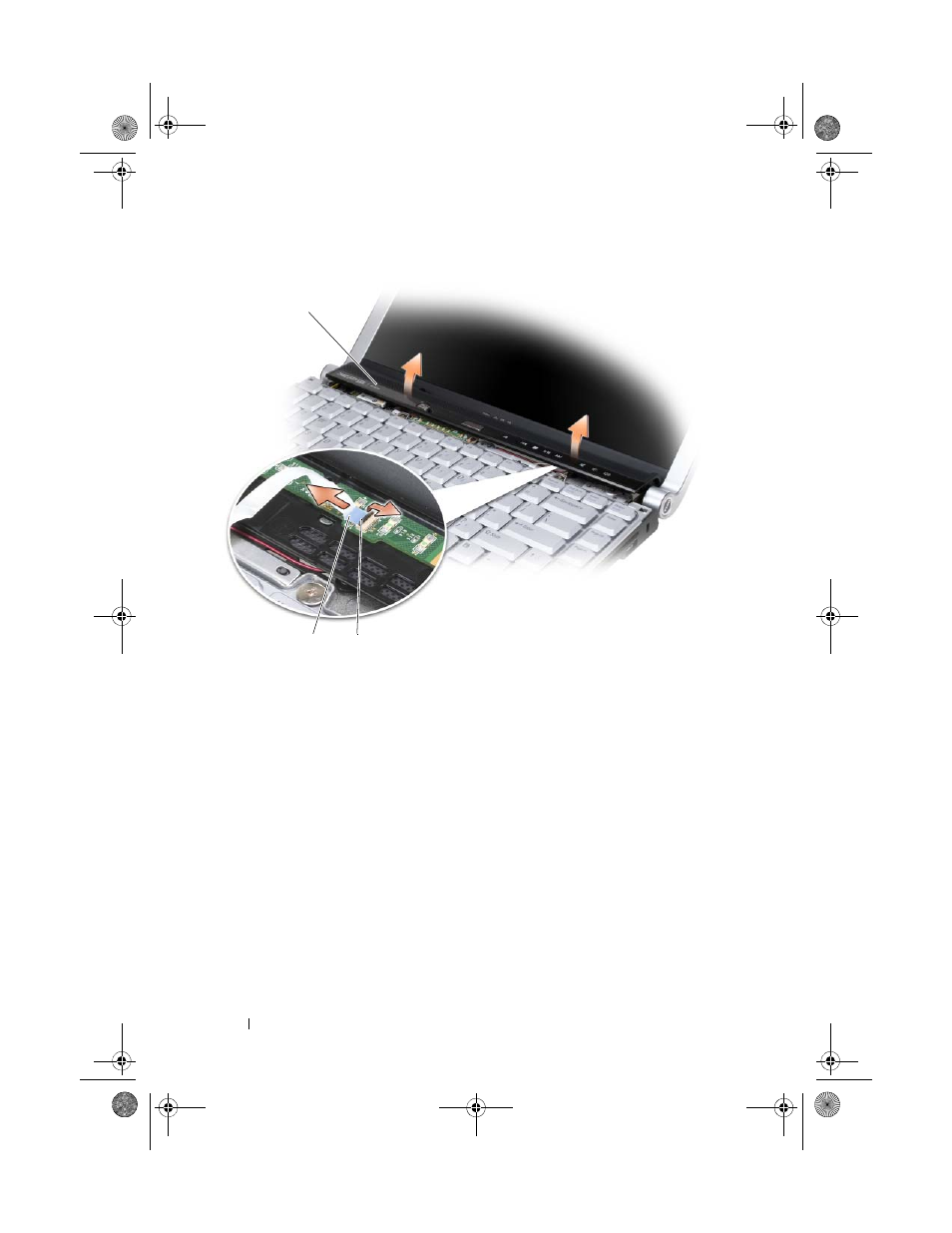

1 center control cover 2 center control cover cable 3 securing lever
1
2 3
