Page 33

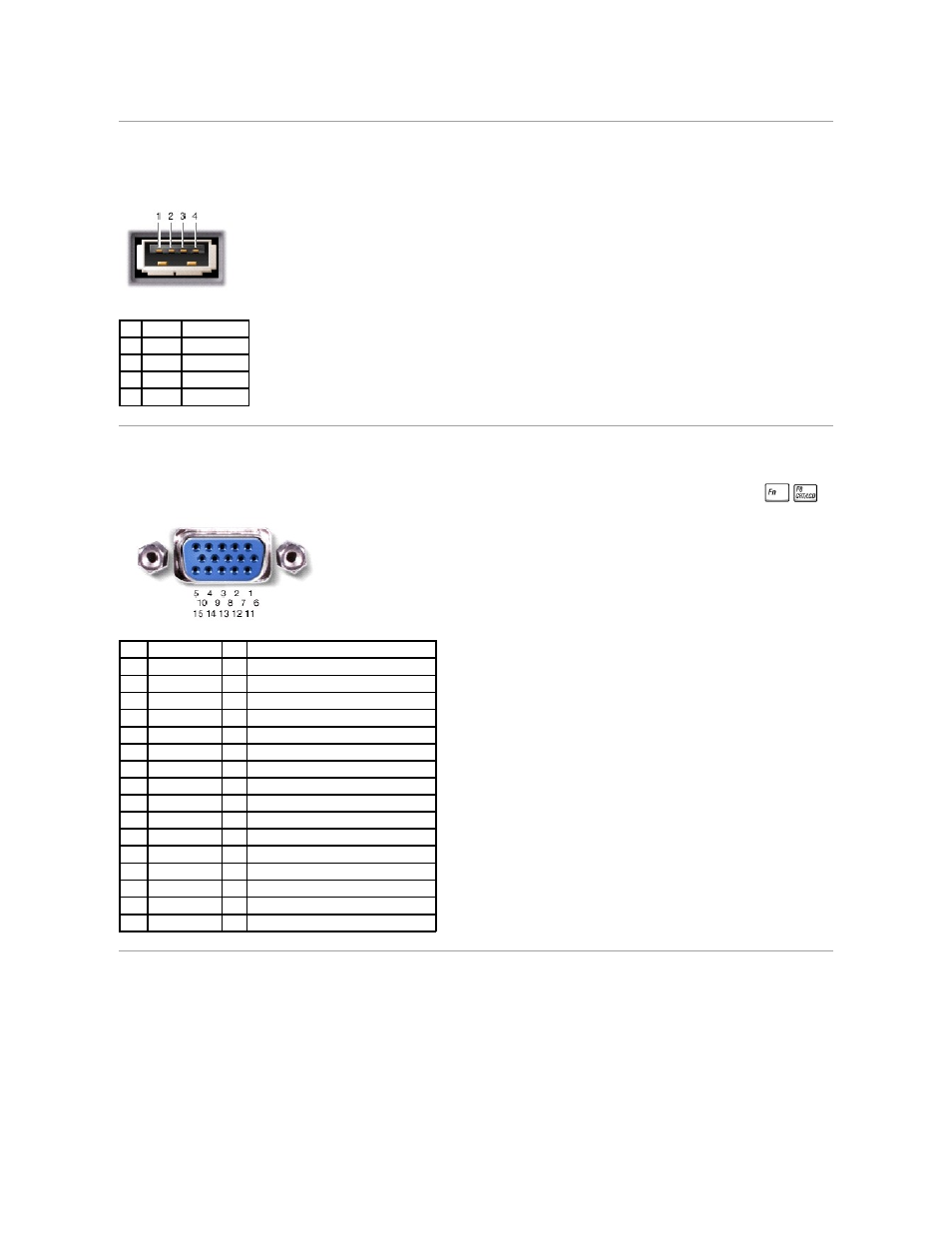

USB Connector
Use the USB connector to attach one or more USB devices, such as a mouse, to the computer. USB is a peripheral standard that enables automatic detection
of USB-compliant peripheral devices.
Video Connector
Use the 15-pin video connector to attach an external monitor to the computer. If the image does not appear on the monitor immediately, press
.
S-Video TV-Out Connector
Use this connector to connect your computer to a television.
Pin Signal Definition
1
VCC
Cable power
2
–
Data N/A
3
+Data
N/A
4
Ground Cable ground
Pin
Signal
I/O Definition
1
RED
O
Red video
2
GREEN
O
Green video
3
BLUE
O
Blue video
4
DDC2_MONID2 I
Monitor detect ID2
5
GND
N/A Signal ground
6
GND
N/A Signal ground
7
GND
N/A Signal ground
8
GND
N/A Signal ground
9
CRTVCC
O
5-V power source for CRT
10
GND
N/A Signal ground
11
M-SEN#
I
Digital monitor sense/monitor detect ID1
12
DDC_DATA
I
Monitor detect serial data
13
HSYNC
O
Horizontal synchronization
14
VSYNC
O
Vertical synchronization
15
DDC_CLK
1
Monitor Detect serial clock
Shell N/A
N/A Frame ground
