Palm Rest

Dell™ Inspiron™ 4150

1.



Remove the

hard drive

.

2.



Remove the

keyboard

.

3.



Remove the

display

and

hinge covers

.

4.



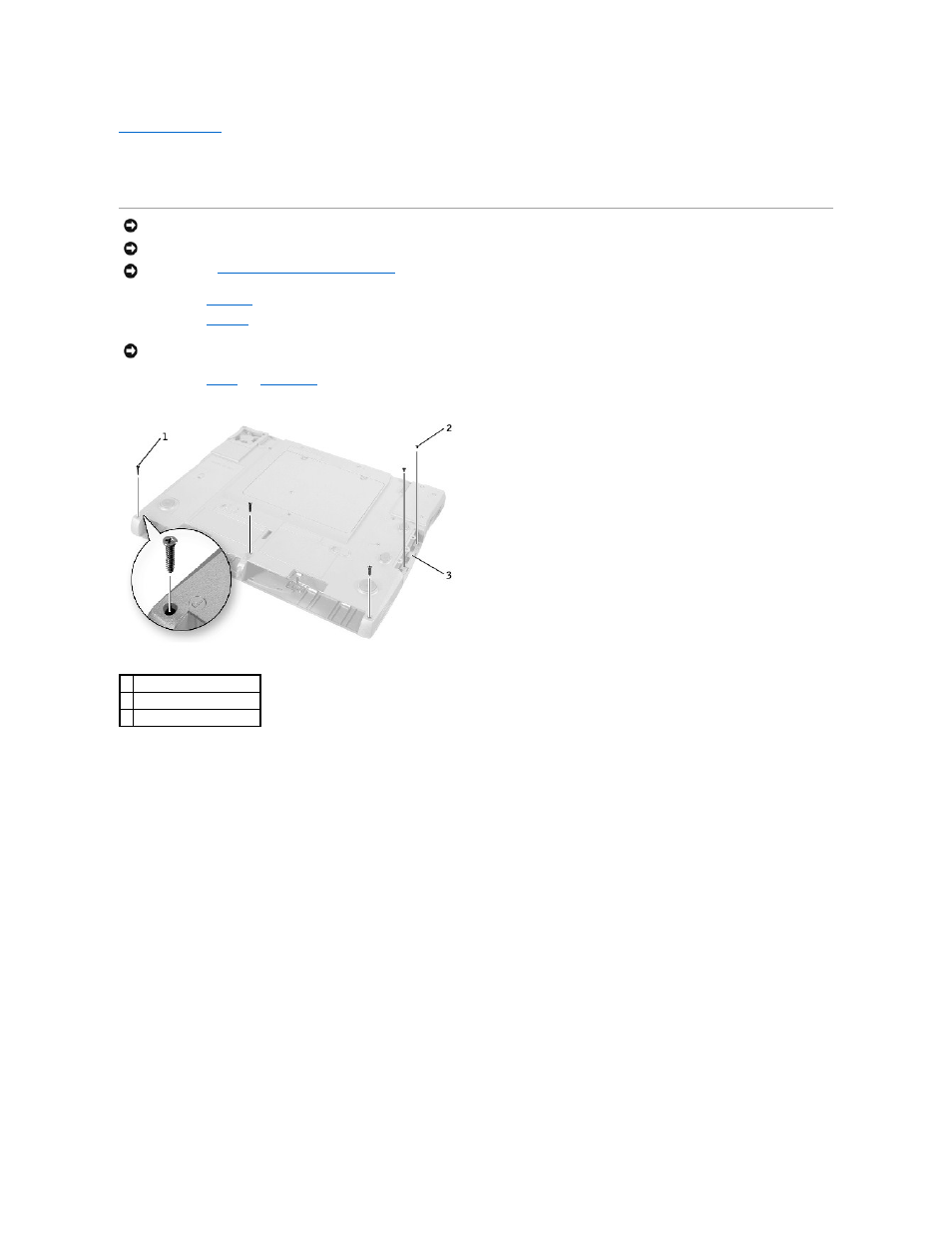

Turn the computer over and remove the three M2.5 x 12-mm screws labeled "circle P."

5.



Remove the two M2 x 3-mm screws that are located in the hard drive door labeled "circle P."

6.



Turn the computer over, and remove the three M2 x 3-mm screws that secure the palm rest to the bottom case:

a.



Remove the two M2 x 3-mm screws that are located on the back edge of the bottom case, underneath the display.

b.



Remove the M2 x 3-mm screw located underneath the keyboard, on the right side of the bottom case, next to the microprocessor thermal cooling

assembly and opposite the S-video TV-out connector.

7.



Pull up on the pull-tab that is attached to the palm-rest flex cable connector to remove it from the interface connector on the system board.

NOTICE:

Disconnect the computer and any attached devices from electrical outlets, and remove any installed batteries.

NOTICE:

To avoid ESD, ground yourself by using a wrist grounding strap or by touching an unpainted metal surface on the computer.

NOTICE:

Read "

Preparing to Work Inside the Computer

" before performing the following procedure.

NOTICE:

You must remove the display before you remove the palm rest; the display hinges pass through the back of the palm rest.

1 M2.5 x 12-mm screws (3)

2 M2 x 3-mm screws (2)

3 hard drive door
