Dell PowerVault DP500 - Manual (Page 60)

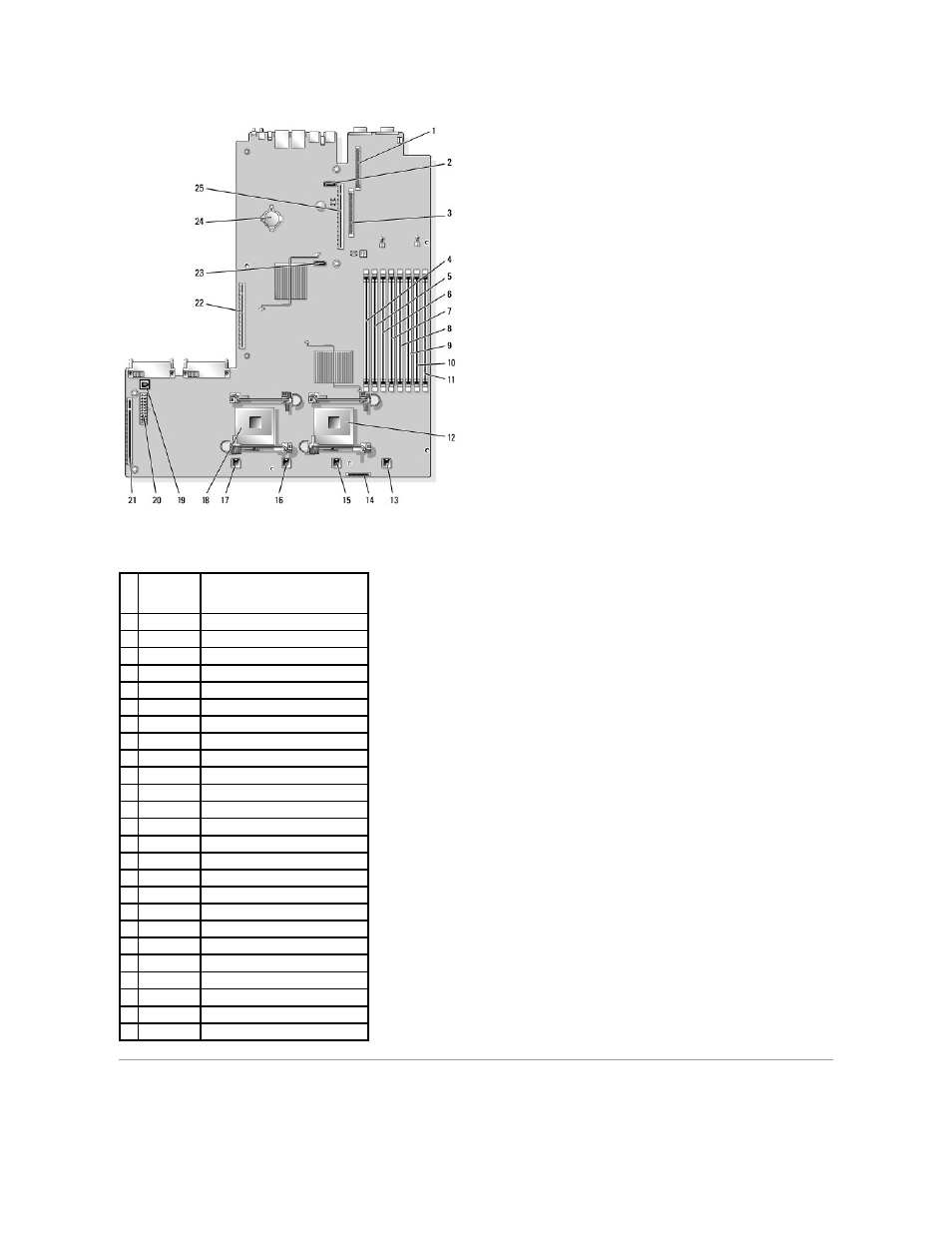

Table 6-2. System Board Connectors
SAS Backplane Board Connectors
Connector Description
1 RAC_CONN2 Remote Access Control (RAC) card 2
2 SATA_B SATA B connector
3 RAC_CONN1 Remote Access Control (RAC) card 1
4 DIMM 1 Memory module, slot 1
5 DIMM 5 Memory module, slot 5
6 DIMM 2 Memory module, slot 2
7 DIMM 6 Memory module, slot 6
8 DIMM 3 Memory module, slot 3
9 DIMM 7 Memory module, slot 7
10 DIMM 4 Memory module, slot 4
11 DIMM 8 Memory module, slot 8
12 CPU1 Microprocessor 1
13 FAN4_2U System cooling fan
14 FLOPPY Floppy drive connector
15 FAN3_2U System cooling fan
16 FAN2_2U System cooling fan
17 FAN1_2U System cooling fan
18 CPU2 Microprocessor 2
19 TOE_KEY TCP/IP Offload Engine Key
20 BACKPLANE Backplane power connector
21 SIDEPLANE Sideplane connector
22 RISER1 Left riser board connector
23 SATA_A SATA A connector
24 BATTERY System battery
25 RISER2 Central riser board connector
