Page 7

for the front-panel indicators and features.
shows the front-panel features of the system.
describes the front-panel features.

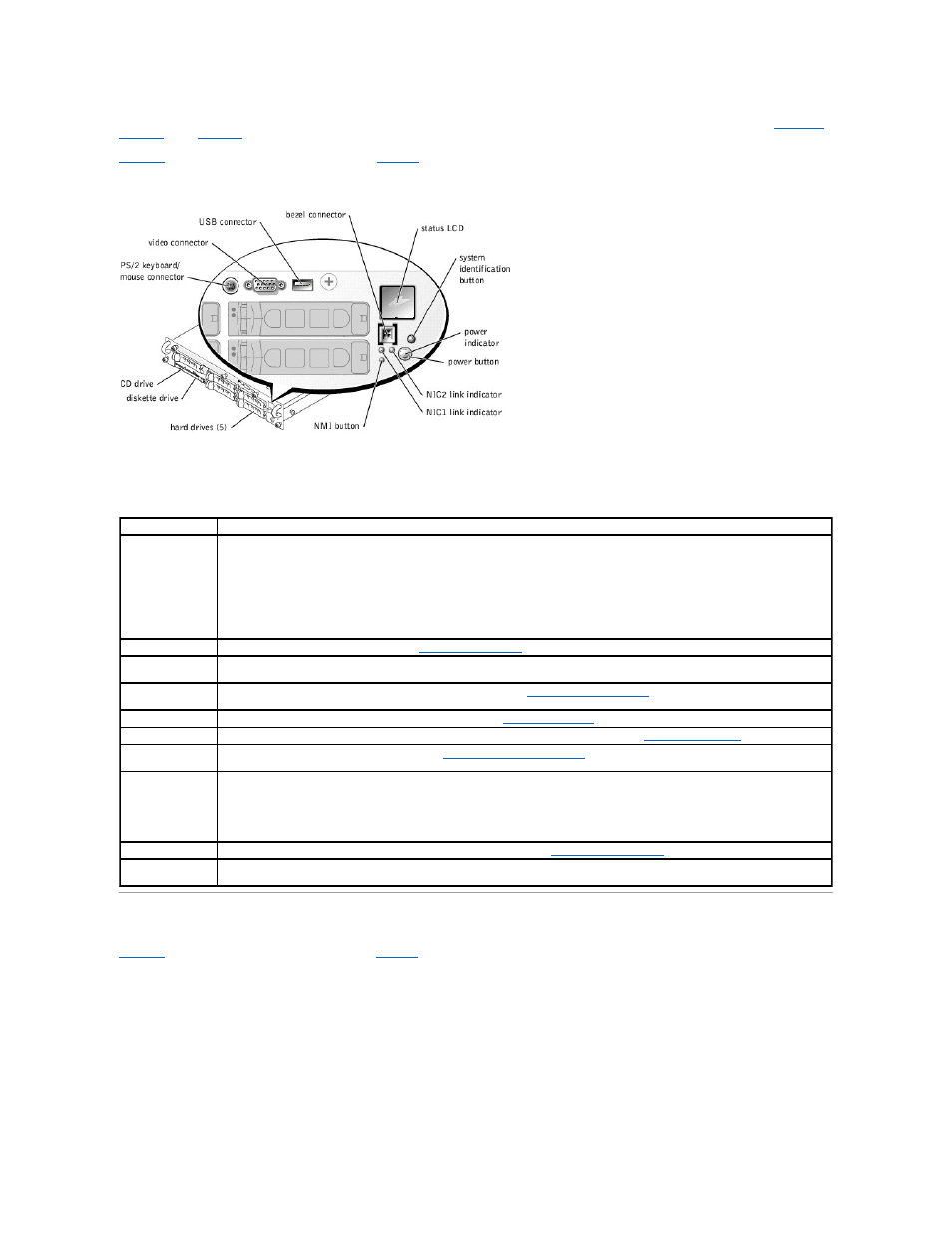

Figure 3-2. Front-Panel Features
Back-Panel Indicators and Features
shows the back-panel features of the system.
describes the back-panel features.
Figure 3-3. Back-Panel Features
Table 3-2. Front-Panel Features
Component
Description
Power button
Turns system power off and on.
l
If you turn off the system using the power button and the system is running an ACPI-compliant operating system (such as
Microsoft® Windows® 2000), the system can perform an orderly shutdown before power is turned off.
l
If the system is not running an ACPI-compliant operating system, power is turned off immediately after the power button is
pressed.
The button is enabled in the System Setup program. When disabled, the button can only turn system power on. For more information,
see your User's Guide and the operating system's documentation.
Power indicator
Provides information on power status (see "
CD and diskette
drive indicators
Indicates read or write access to the respective drive.
hard-drive
indicators
Provide information on the status of the respective hard drive (see "
").
NIC indicators
Indicate whether the NIC has a valid link to the network (see "
Status LCD
Can signify when the system is operating correctly or when the system needs attention (see "
System
identification button
Can be used to identify a particular system (see "
System Identification Indicators
NMI button
Can be used to troubleshoot software and device driver errors when using certain operating systems. This button is often referred to
as a "force dump switch" and can be pressed using the end of a paper clip. When the option is enabled in the System Setup program
and the button is pressed, an NMI alerts the system.
Use this button only if directed to do so by qualified support personnel or by the operating system's documentation. For more
information, see your User's Guide and the operating system's documentation.
Bezel connector
Transmits logic signals for the system-status indicator on the bezel (see "
").
I/O ports and
connectors
Attach peripheral devices to the system. For more information, see "I/O Ports and Connectors" in your User's Guide.
