LUN and Boot Order fields are disabled and cleared when target is set to None Selected.
Intel Ethernet® FCoE Boot cannot be enabled on an adapter that has a VLAN or is in a team. If the
current adapter is in a team or has a VLAN, then all fields are disabled.
Active Image Enables/disables the boot options in the EEPROM. The update operation modifies the EEPROM to
enable an option ROM, already contained within the flash. This may temporarily disable the operation
of the Windows* network device driver. You might need to reboot the computer following this
operation.
Boot Targets The server-side system in an FCoE SAN configuration. The FCoE Boot Target system hosts the FCoE
target drives that are accessed by an FCoE Boot initiator.

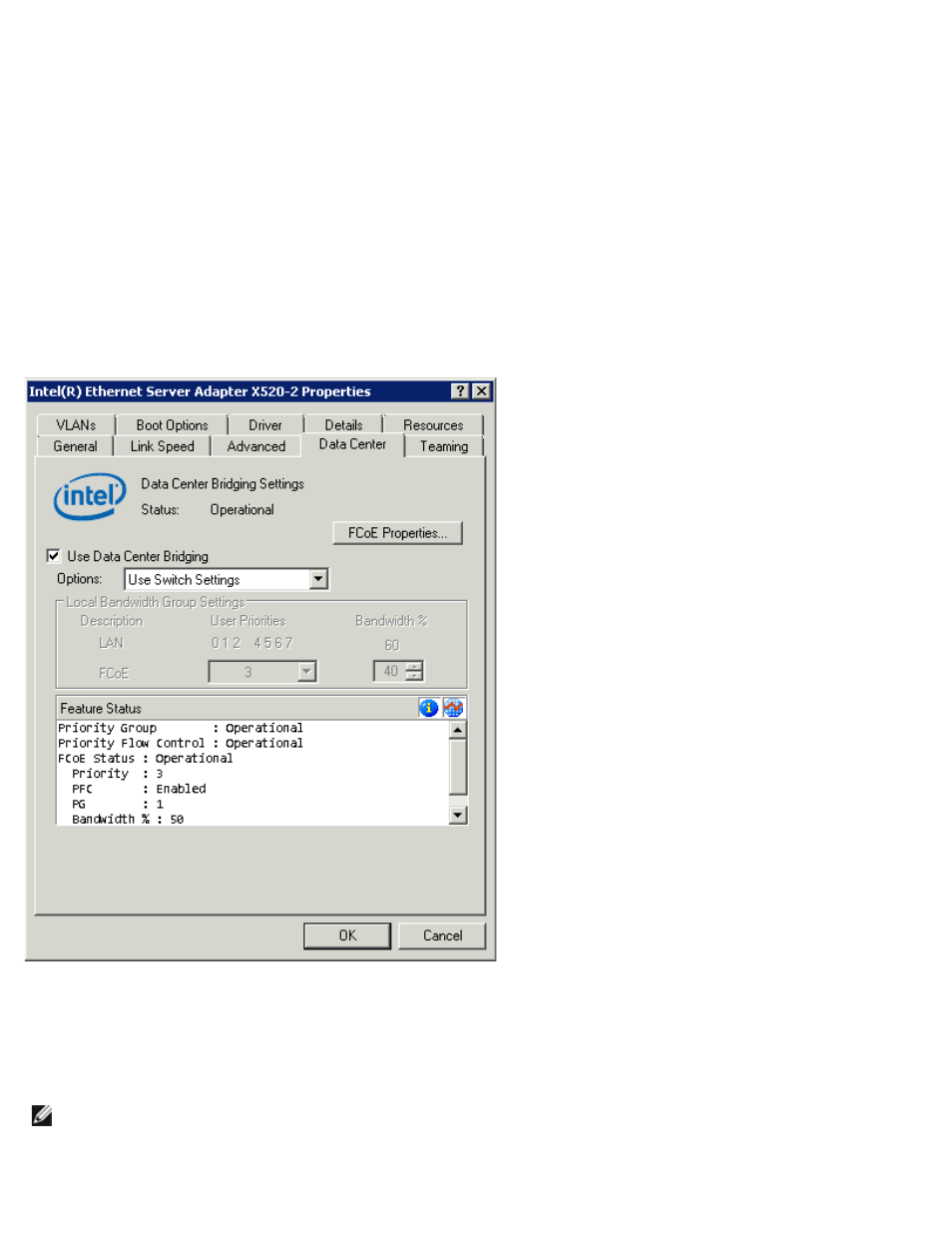

Data Center Tab
From the Data Center tab, you can enable/disable Data Center Bridging (DCB), view DCB Feature status, and access the
storage adapter miniport device's FCoE properties tabs.
The Use Data Center Bridging box must be checked (DCB enabled) to use Intel FCoE.
Options
When Using Advanced Settings is indicated, Data Center Bridging (DCB) was configured locally, using a tool like SNMP, in a
way which does not match the Use Switch Settings template. The Use Switch Settings template is Enabled, Advertising, and
Willing for all DCB features.
If you select Use Switch Settings, any Advanced configuration is overwritten.
NOTES: You cannot disable DCB while the system is booted from an FCoE drive or if the system paging file is on an
FCoE drive. The options on the Data Center tab will be grayed out if you try.
DCB Feature Status
