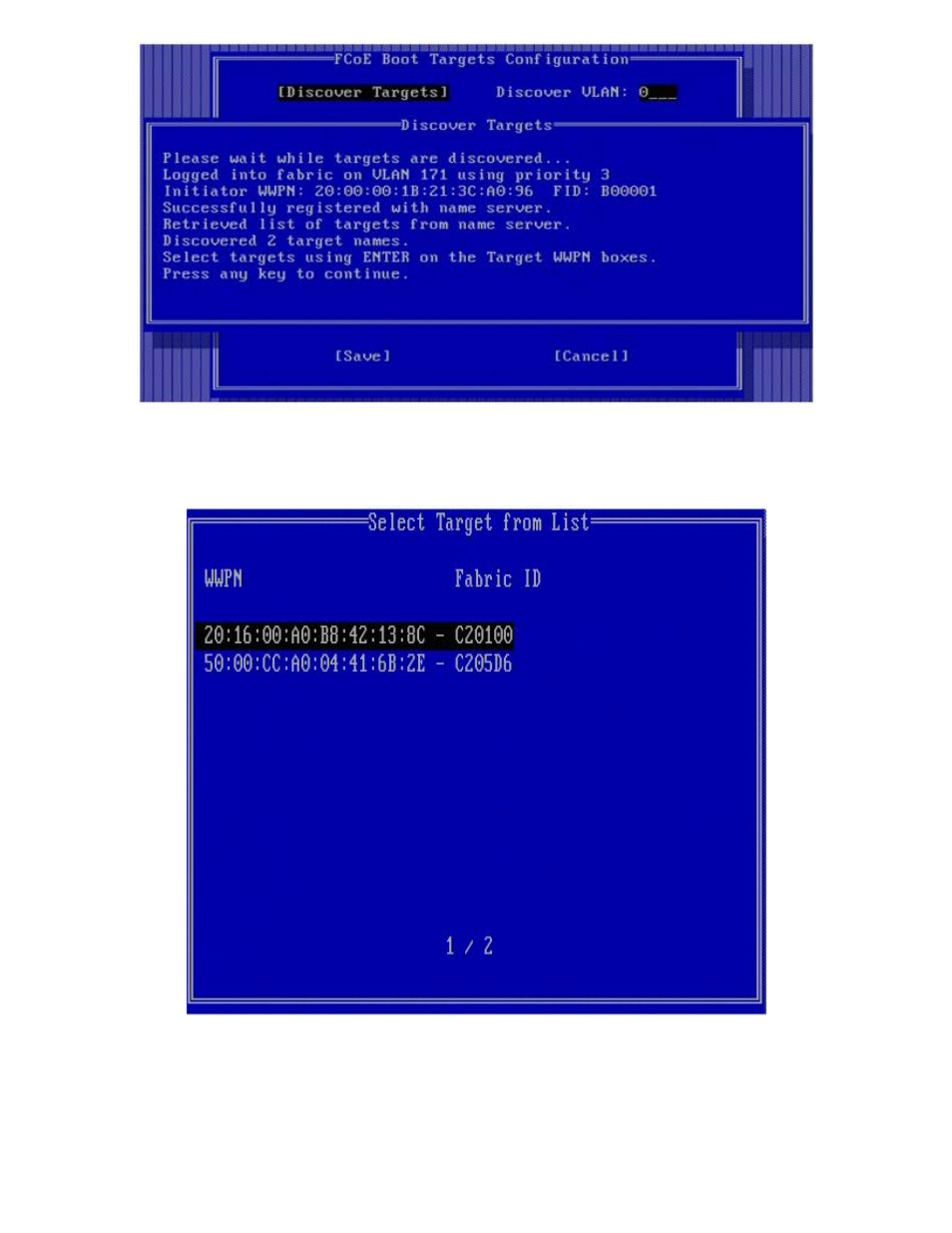

FCoE Target Selection Menu

From the FCoE Target Selection menu, highlight the desired Target from the list and press Enter.

From the FCoE Boot Targets Configuration menu, manually fill in the LUN and Boot Order values. Hit Save.

VLAN Value is 0 by default. Discover Targets may be performed, which will display a VLAN. If the VLAN

displayed is not the one desired, enter the VLAN manually and perform Discover Targets on that VLAN.

Boot

Order

Valid values are 0 through 4, where a value of 0 means no boot order or ignore the target. A 0 value

also indicates that this port should not be used to connect to the target. Boot order values of 1 through

4 can only be assigned once to targets across all FCoE boot enabled ports.
