Introduction: Dell PowerVault 220S and 221S Systems Installation and Troubleshooting Guide

file:///C|/Users/rishi_sood/Desktop/220s/en/it/6f704c11.htm[3/7/2013 12:07:17 PM]

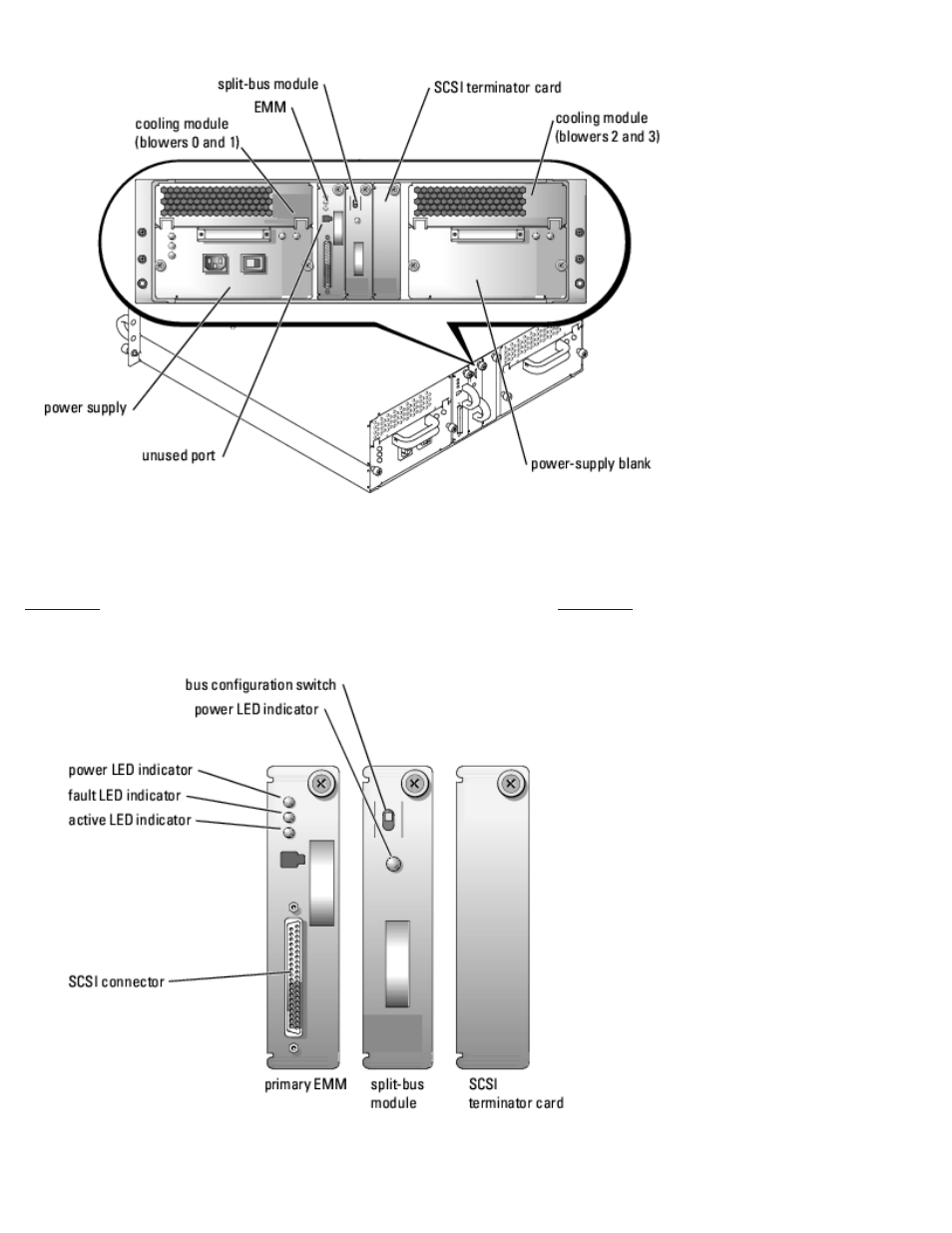

Figure 1-4. Back-Panel Features (Systems With Nonredundant EMMs and Nonredundant Power Supplies)

Back-Panel Modules

Figure 1-5

illustrates the back-panel modules features and indicators. See

Figure 1-6

for more information about bus

configuration switch modes.

Figure 1-5. Back-Panel Modules Features and Indicators
