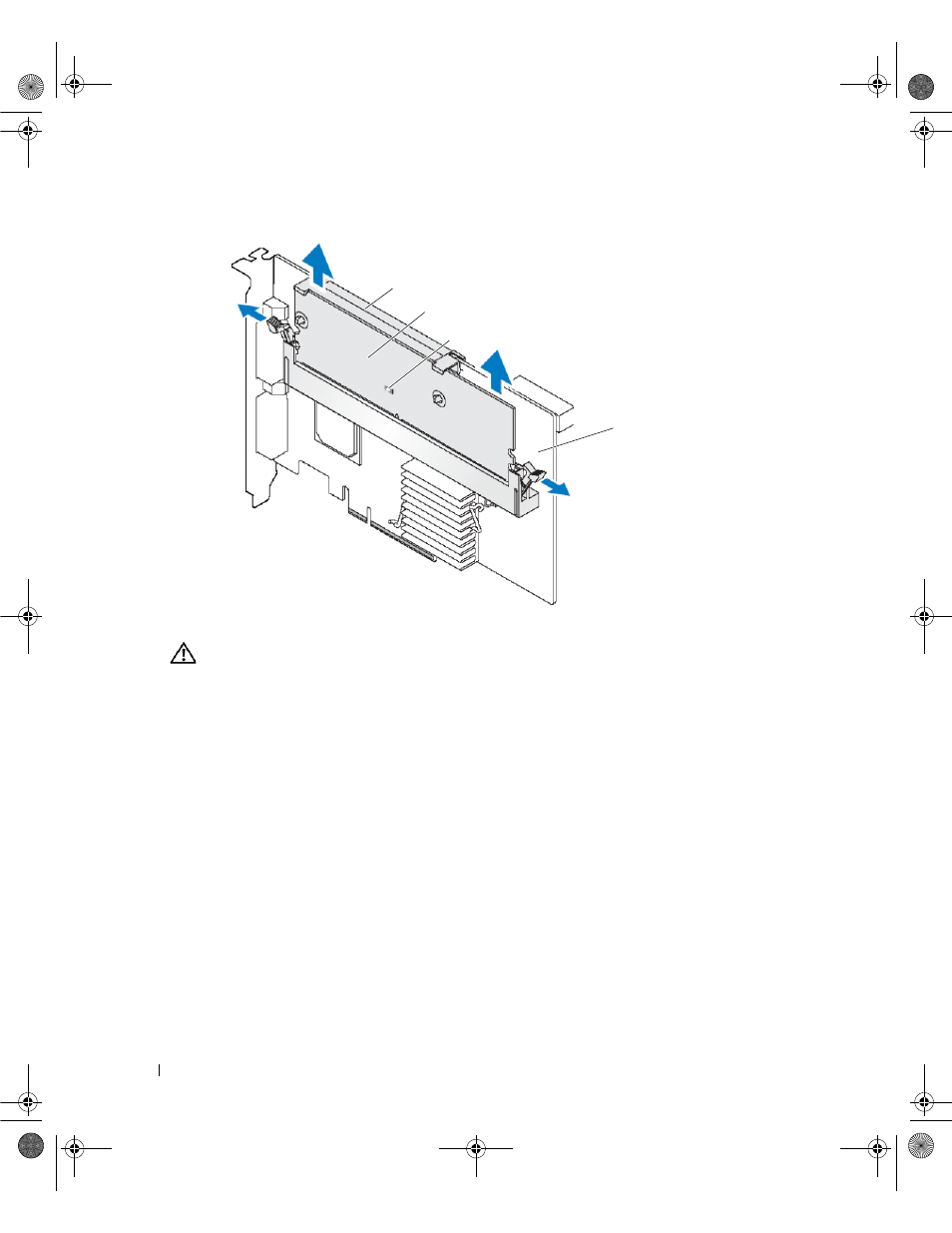

Figure 3-6. PERC 5/E Adapter Dirty Cache LED Location
CAUTION:
Running a system without the system cover installed may cause damage due to improper
cooling.
3 Remove the TBBU assembly from the adapter by pressing down on the tabs at each edge of the DIMM
connector and lifting the TBBU off the adapter.
4 Disconnect the battery cable from the DIMM.
5 Detach the battery from the DIMM by pressing out on the battery clips inserted through the DIMM
and rotating the battery off the DIMM. See Figure 3-7.
dirty cache LED
PERC 5/E Adapter
memory module
battery
