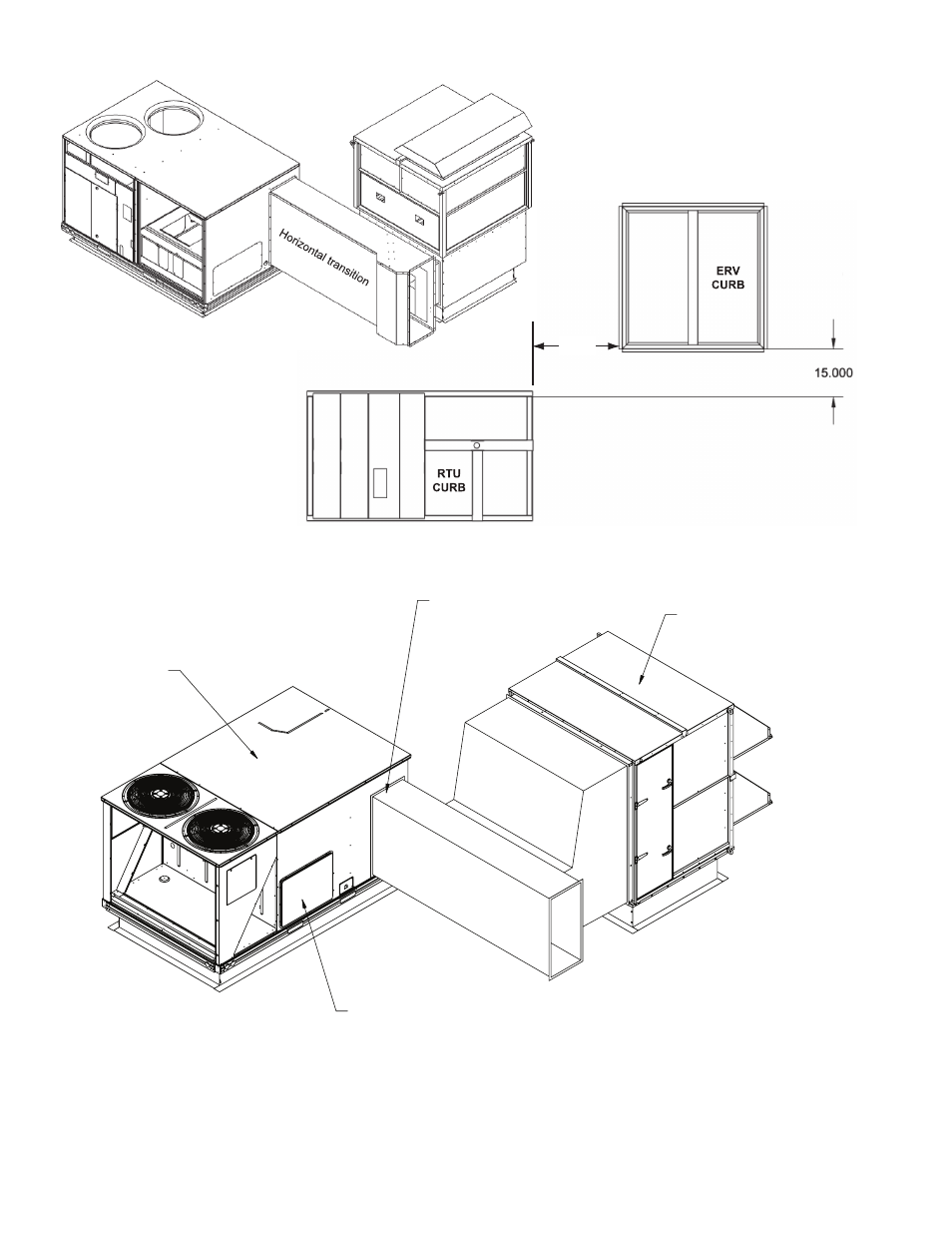

Fig. 8 — Typical 62EB-EU Unit Installation with Horizontal Base and Horizontal Transition
25.00
NOTE: All dimensions shown in inches.
a62-378
HVAC UNIT
RETURN AIR OPENING
ENERGY RECOVERY UNIT
HORIZONTAL
TRANSITION
SUPPLY OPENING
a62-443
Fig. 9 — Typical 62E2-E7 Unit Installation
