Crestron Commercial Lighting Design Guide
5
Specifying Crestron Lighting Systems
Distributed Architecture
Product Families: Room Solutions
x Wired in traditional configuration
x Each load is controlled by a local Crestron device
x In some cases, the local device has integrated keypad
x Keypad and touchpanel control are optional, allowing that load to be controlled from any location
In a distributed system, the high-voltage lighting, motor, fan, and switch circuits are wired in the traditional configuration with local
control. Controllable in-wall dimmers or switches replace the standard dimmers or switches and can be retrofitted into a project after
customary high-voltage wiring is completed. Crestron in-wall dimmers communicate with a control processor through either a Cresnet
(low-voltage control wire) or infiNET EX
™ (mesh RF) wireless connection. This design combines the familiarity of local control with the
power and flexibility of automation. In the event of a control system interruption, the user can still operate the lighting locally.
In the commercial space, in-wall solutions are appropriate for offices, small boardrooms, and hospitality. Typically in-wall dimmers or
switches support standard voltages (120/230VAC) and load types (incandescent, magnetic low-voltage). In the case where higher
voltages and loads are required, an expansion module can be added.

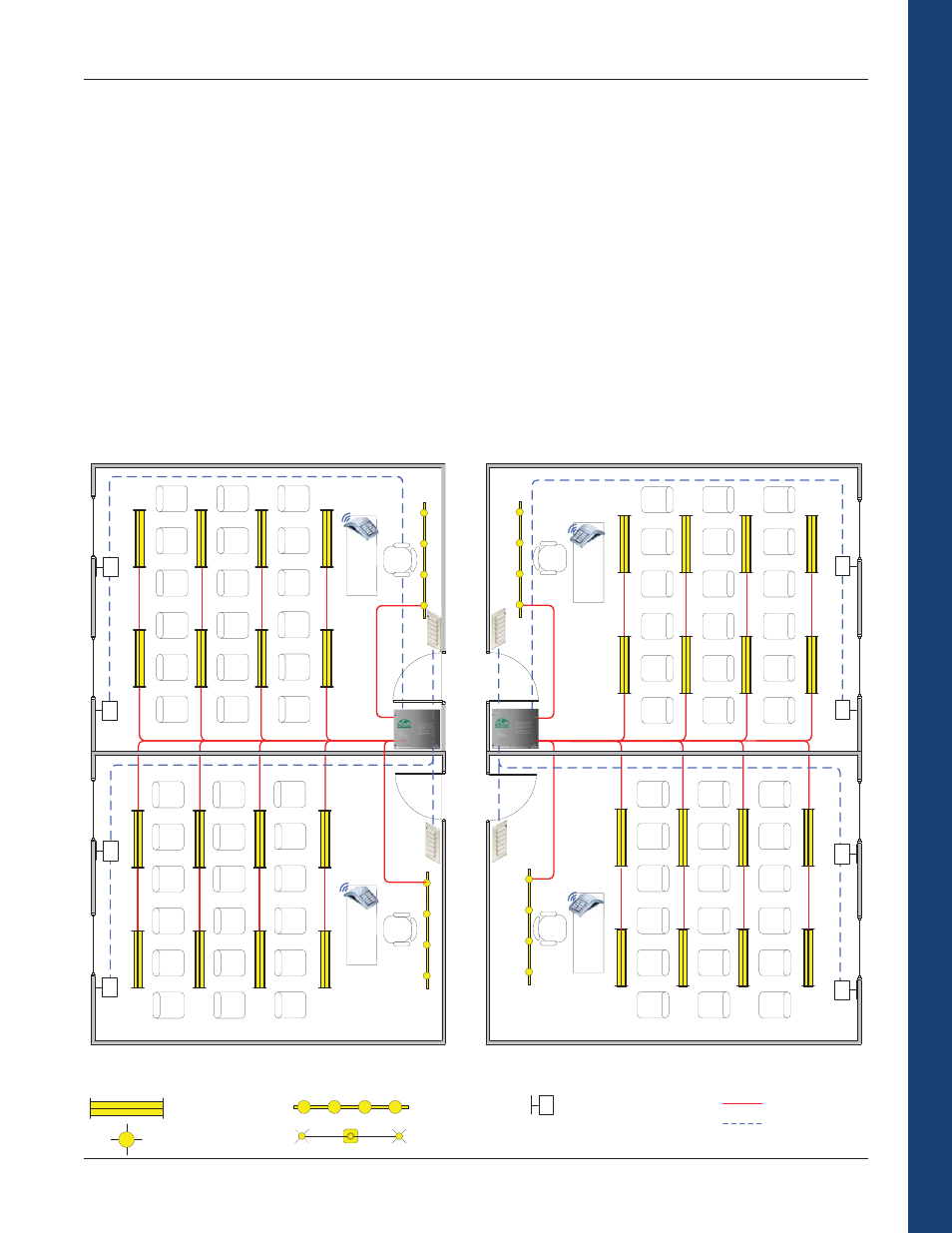

CLASSROOM 1 CLASSROOM 2
CLASSROOM 3 CLASSROOM 4
M
M
M
M M
M
GLPAC-
DIMFLV8-PM
Located in
Ceiling
GLPAC-
DIMFLV8-PM
Located in
Ceiling
HTT-B10EX
HTT-B10EX
Keypad
Keypad
Keypad
HTT-B10EX
HTT-B10EX
M
M
R
Troffer
Recessed
Track
Parking
KEY
Shade Motor 120/277V
Control
M
Keypad
