Crestron Commercial Lighting Design Guide
43
Room Solutions
iLux Room Controllers
CLS-C6 iLux CLSI-C6 iLux – International (230 V)
CLS-C6M iLux w/ Motion Detector CLSI-C6M iLux w/ Motion Detector – International (230 V)
CLS-C6EX iLux w/ infiNET EX CLSI-C6EX iLux w/ infiNET EX – International (230 V)
CLS-C6MEX iLux w/ Motion Detector & infiNET EX CLSI-C6MEX iLux w/ Motion Detector & infiNET EX – International (230 V)
Control System Integration via infiNET EX
TM
iLux Room Controllers with Crestron’s infiNET EX technology can wirelessly link to a 2-series control system. This two-way
communication link allows the iLux functions to be controlled from touchpanels, RF wireless remotes, and even computers. The control
system interface also enables flexibility for integration with other systems such as security, HVAC and energy management, plus remote
monitoring via Crestron RoomView applications.
Note: infiNET EX dimmers and switches are not able to communicate with the iLux directly, since both are “slave” modules.
Built-in Motion Detector
iLux Room Controllers with the built-in infrared motion detector can automate control based on room occupancy. iLux can turn on lights
and open shades automatically when someone enters the room or turn off and close them when the room is left empty.
Multi-Unit Expansion
One CLS-C6 type master will support up to eight additional CLS-C6 type units, allowing up to 54 lighting zones and 54 shade groups.
Commands for typical functions like scene recall, scene off, master dimming, and occupancy status are shared between the CLS-C6
units. Each unit can still support a complete assortment of local devices including keypads, shade controllers, and motion detectors.

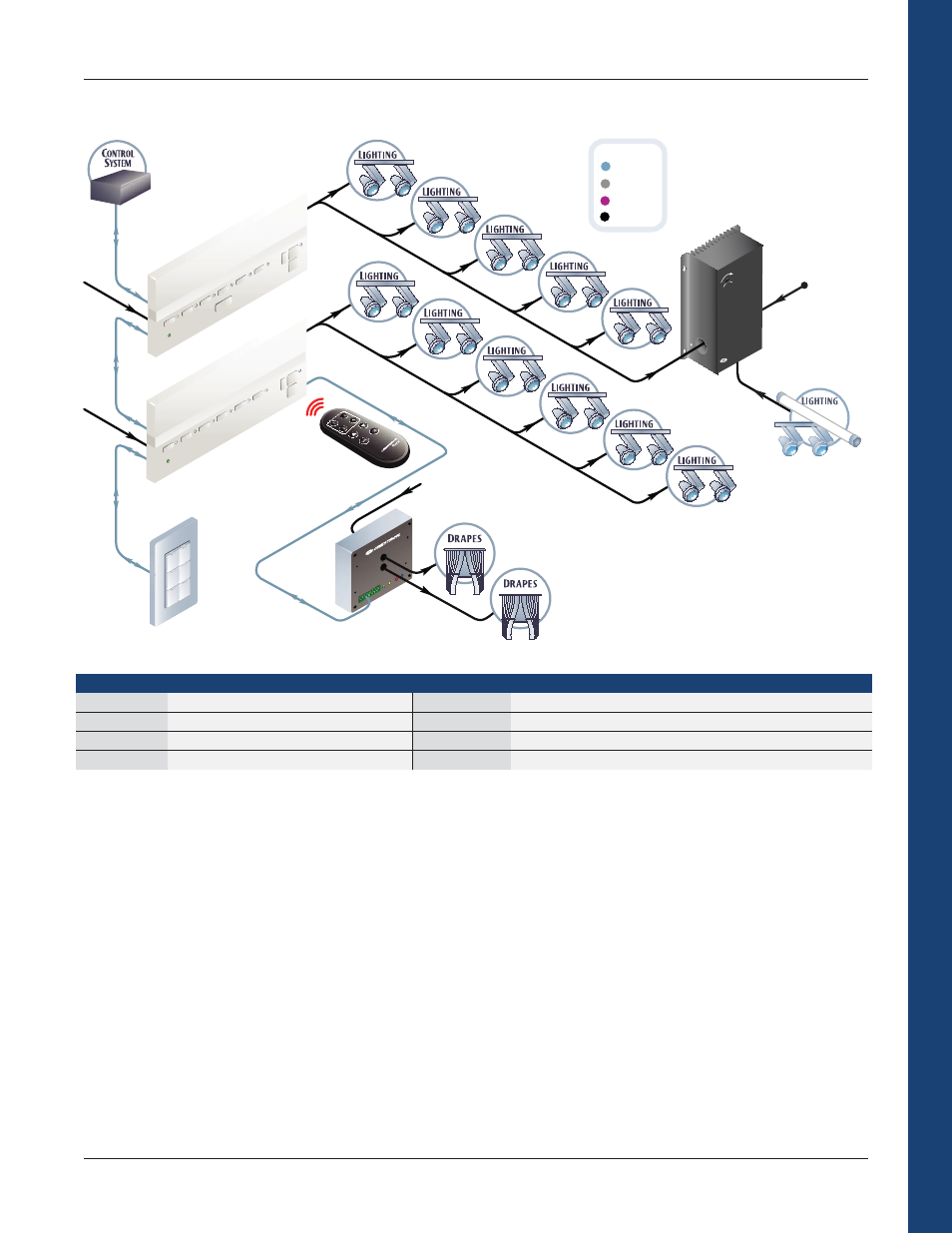

Example iLux Application
CR EST RO N E LEC TRO NIC S I NC. N.J. 07 647 USA
C2N- SD C
NET
24 Y Z G
NET 24 Y Z G
- SETU
P -
PW R NE T
CNX-B6
6-Button
Designer
Keypad
CLS-IRHT8
iLux IR Handheld
Remote
CLS-C6M
iLux Integrated Lighting
System with Motion
Detector
CLS-C6
iLux Integrated
Lighting System
C2N-SDC
Shade and
Drape Controller,
120V AC
CKT
1
CKT
2
CK
T 3
CKT
4
CKT
5
CK
T 6
CKT
1
CKT
2
CKT
3
CKT
4
CKT
5
CK
T 6
120
VA
C
120
VA
C
120 - 277 V
AC
CLS-EXP-DIM
INCAND ES CENT MA X
FLUORE SCEN T O FF
THR ES HO LD
ML V DIMMIN
G
INCAN DESCENT DIMMING
2/3 WI RE FLUO RESC ENT D IMMI NG
INPUT : 12 0VAC 60Hz
OUT PU T: 1 20- 277 VAC 60Hz
E X P A N S I O N M O D U L E
CLS-EXP -DIM
iLux
CRE ST RO N
Incandescent,
magnetic low-voltage,
neon/cold cathode
or 2-wire fluorescent
120
VAC
Color Key
Control
AC
Cresnet
LAN
