Crestron Commercial Lighting Design Guide
44
Room Solutions
Expansion Modules
Expansion modules increase the amount of lighting loads controllable by a single CLS-C6 type unit. Expansion modules are listed in the
table below.
Expansion Module Load Function
CLS-EXP-DIM Supports incandescent, magnetic low voltage, neon/cold
cathode, and 2-wire and 3-wire dimmable fluorescent loads
(16A per load)
120V, 230V, & 277V compatibility Forward Phase Dimming
CLS-EXP-DIMU Supports incandescent, magnetic low voltage, Electronic low
voltage, and 2-wire and 3-wire dimmable fluorescent loads
(16A per load)
120V, 230V, & 277V compatibility Forward and Reverse-Phase Dimming
Auto Load Type Detection
CLS-EXP-DIMFLV Supports 4-wire Fluorescent, Incandescent, MLV and ELV
loads (16A per load)
120V, 230V, & 277V compatibility 0-10V Fluorescent Dimming plus High
Inrush Switching
CLS-EXP-DIMFDB Supports 3-wire Fluorescent Fluorescent Dimming

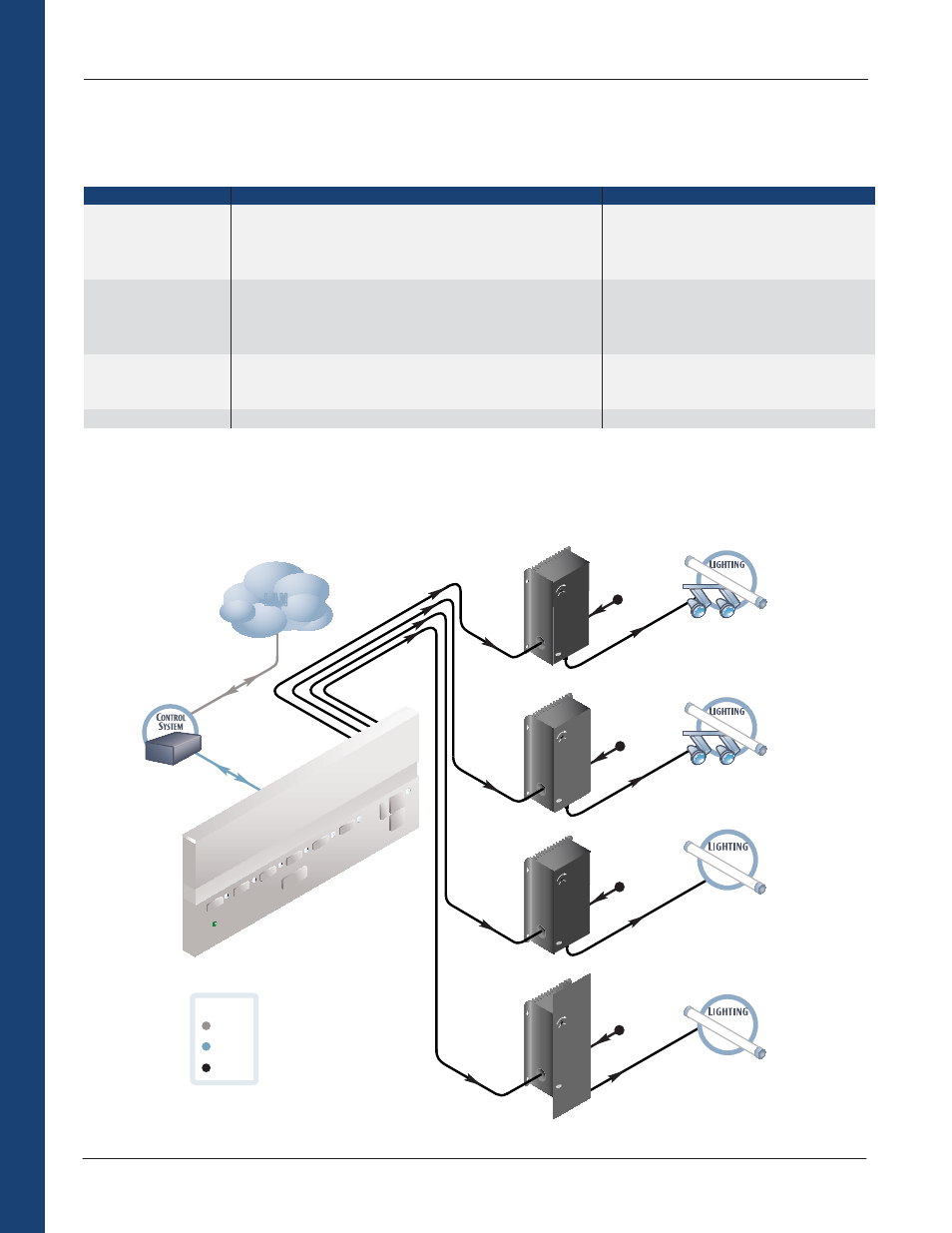

Expansion Module Example
120 - 277 V
AC
120 - 277 V
AC
120 - 277 V
AC
Incandescent,
magnetic low-voltage,
neon/cold cathode
or 2-wire fluorescent
CLS-EXP-DIM
CLS-EXP-DIMU
CLS-EXP-DIMFL
V
Expansion
Modules
CLS-C6M
Optional
LAN LAN
Universal Dimming
(Forward and Reverse phase)
Auto Adapt to load type
All 4-Wire Fluorescent
High In-Rush Switching
INCAND ES CEN T MAX
FL UO RES CEN T OFF
THR ES HOLD
ML V DIMMING INCANDESCEN
T DI MMI NG
2/3 WIR E F LUOR ESCEN T D IMMING
INPUT : 12 0VAC 60Hz
OUTPUT : 120 -27 7 V AC 60H z
E X P A N S I O N M O D U L E
CLS-E XP-DIM
iLux
CR ESTRON
INCAND ESC ENT MA X
FL UORES CE NT OFF
THRE SHOLD
ML V DIMMING INCANDESCENT DIMMING
2/3 WIR E F LUORE SCENT D IMMING
INPU T: 12 0VAC 60H z
OU TPU T: 120 -27 7 V AC 60H z
E X P A N S I O N M O D U L E
CLS-EXP -DIMU
iLux
CREST RON
INCANDESCENT MA
X
FL UORES CE NT OFF
THRE SHO LD
ML V DIMMING INCAND ESCEN T DIM MING
2/3 WIR E F LUORE SC ENT D IMMING
INPU T: 12 0VAC 60H z
OUTPU T: 120 -27 7 V AC 60H z
E X P A N S I O N M O D U L E
CLS-EXP -DIMF LV8
iLux
CRE ST RON
DIMMING CONTROL
120 - 277 V
AC
E X P A N S I O N M O D U L E iLux
CRE ST RO N
CLS-EXP-DIMFDB
FL UORE SCEN T OFF
THR ESHO LD
3 WI RE FL UORESCEN T DIM MIN G
INPUT : 120 VA C 60Hz
OU TPUT : 120 -27 7 V AC 60H z
CLS-E XP-DIM F3W
3-Wire Fluorescent
Color Key
AC
Cresnet
LAN
