Crestron Commercial Lighting Design Guide
Processors
DIN-AP2

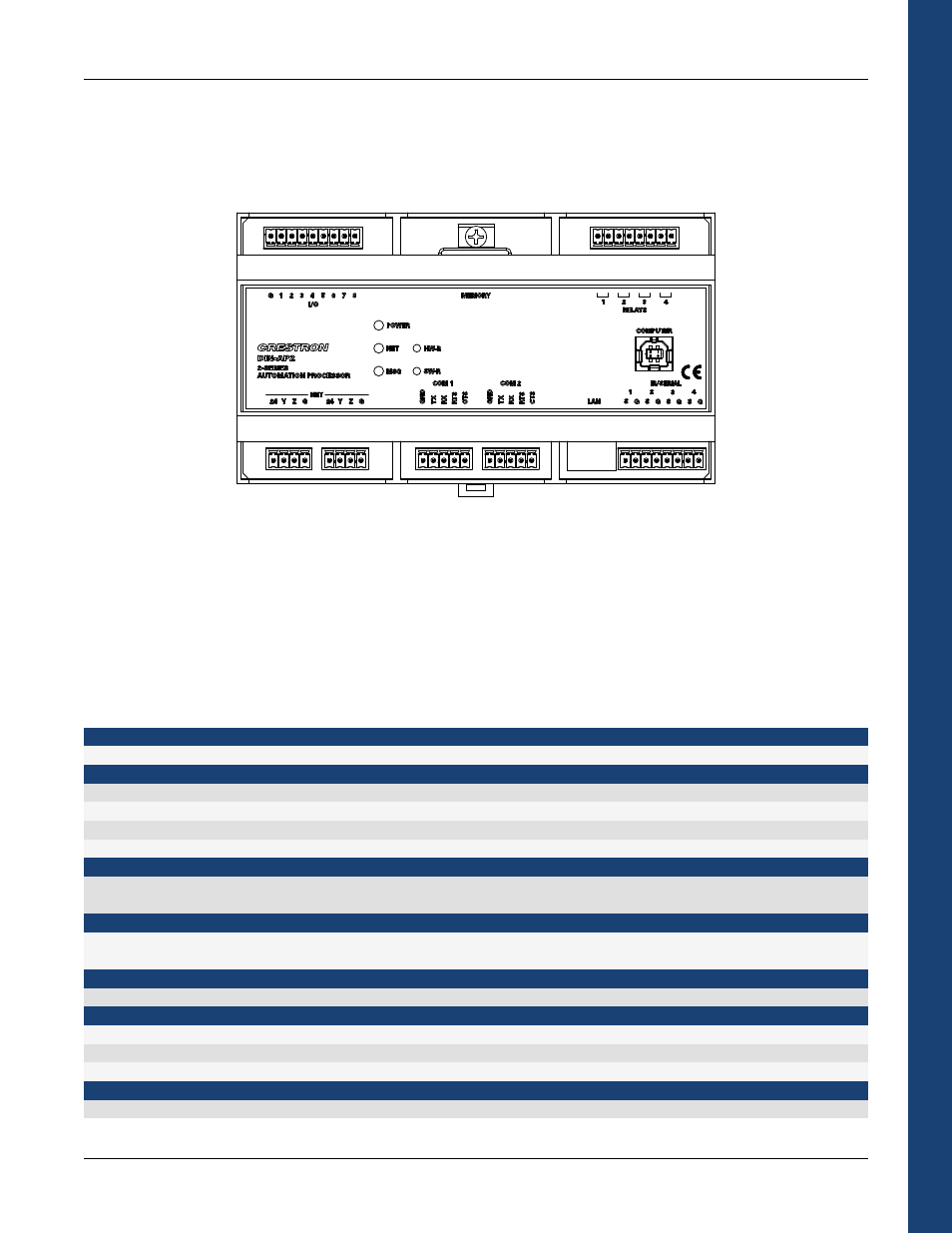

The DIN-AP2 is a 2-Series control processor designed for small to medium-sized lighting and automation applications. DIN rail mounting
enables modular installation alongside Crestron DIN Rail lighting and automation control modules and other third-party DIN rail
mountable devices.
Design Recommendations: The total number of Cresnet devices should not exceed 60. Hub recommended for more than 20 devices.
Dimmed and Switched Load Amounts: Up to 210 loads
Keypad Amounts: 16
Touchpanel Amounts: 2
Control Ports: 2 Cresnet ports, 1 10/100 Ethernet port, 2 bi-directional RS-232 ports, 4 IR/serial ports, 4 low-voltage relays, 8 Versiport
I/O ports
Other: 500 time clock events, up to 30 occupancy sensors and photocell sensors
Power: The DIN-AP2 requires a separate supplemental power supply. It is recommended that the power fed to the DIN-AP2 comes from
a clean and uninterrupted source.
Processor
CPU 32-bit Freescale ColdFire Microprocessor
Memory
SDRAM 32 MB
NVRAM 256 KB
Flash 8 MB
Removable Flash Expandable up to 2 GB using MMC compatible card (not included)
Operating System
Real-time, preemptive multi-threaded/multitasking kernel; FAT32 file system with long names; supports SIMPL™ Windows® and
SIMPL+®
Ethernet
10/100Base-T, auto-negotiating, full/half duplex, static IP or DHCP/DNS, SSL, TCP/IP, UDP/IP, CIP, SMTP, SNMP, built-in web server
and e-mail client; supports Crestron e-Control2 XPanel and RoomView
Applications
Power Requirements
Cresnet Power Usage 8 Watts (0.33 Amps @ 24 Volts DC)
Environmental
Temperature 32° to 104°F (0° to 40°C)
Humidity 10% to 90% RH (non-condensing)
Heat Dissipation 26 BTU/Hr
Weight
9.8 oz (277 g)
