Architectural Dimming
Module Specifications

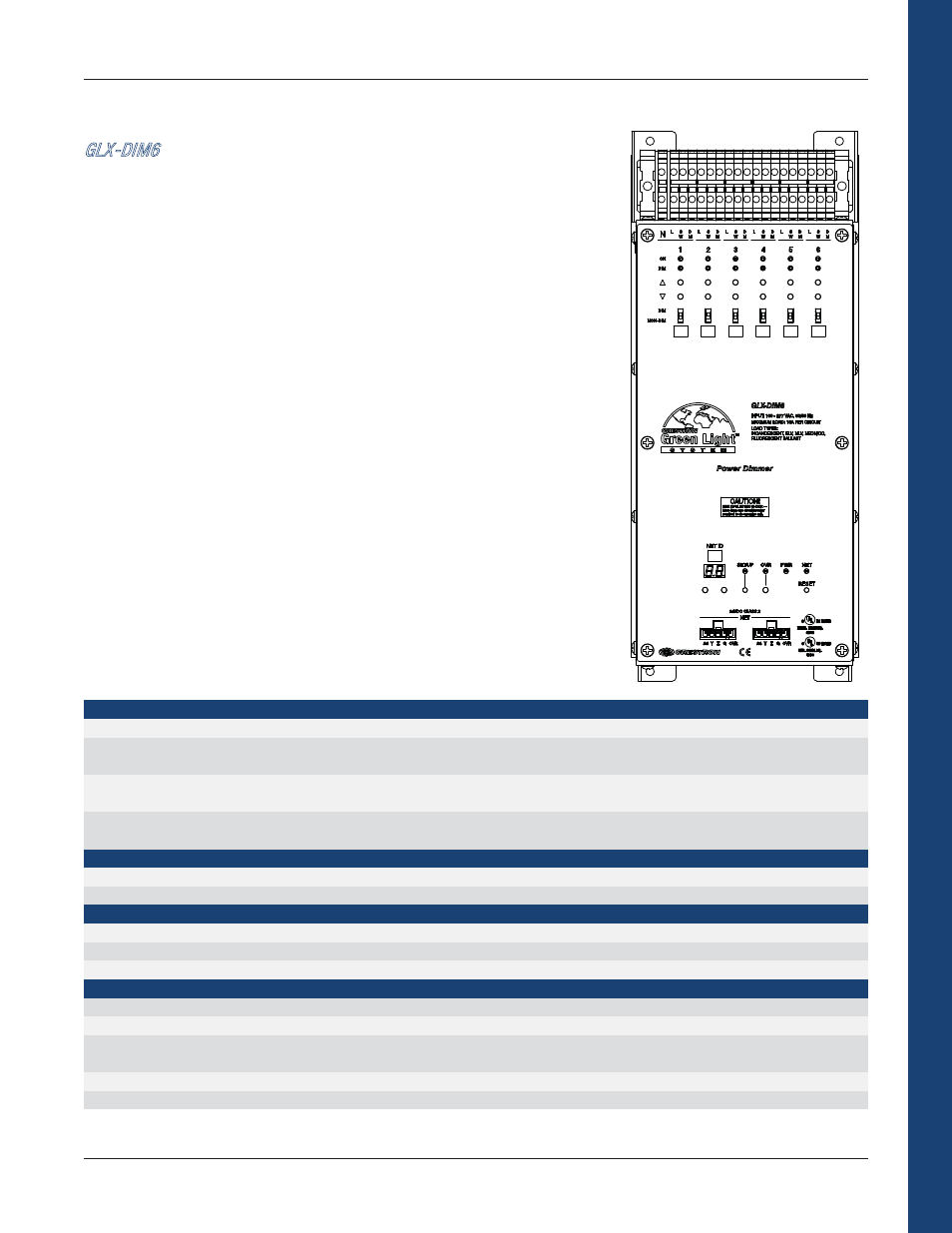

GLX-DIM6
The GLX-DIM6 is a Crestron Green Light architectural dimming module which
features 6 channels of incandescent, magnetic low-voltage, and 2- and 3-
wire fluorescent dimming. The module is part of a complete Crestron
engineered GLPD Green Light architectural dimming panel.
> 6 channels of incandescent, MLV, 2- & 3-wire fluorescent dimming
> Phase-synchronous detection eliminates lamp flicker
> Selectable non-dim mode
> Supports 100 to 277 Volt applications
> 16 Amp load rating per channel
> Short circuit and overload protection
> Positive air gap at each output
> Phase-independent channels
> Cresnet communications
> Redundant power capability—module powered via line or Cresnet
> Local controls for testing and verification
> Local and remote override capability
> Non-volatile power failure memory
Load Ratings
Switch Channels 6
Per Channel 16 Amps at 100-277 Volts AC, 50/60 Hz
Dim Load Types
Incandescent, Magnetic Low-Voltage, Neon/Cold Cathode, 2-wire Fluorescent Ballast, or 3-wire
Fluorescent Ballast
Switch Load Types Incandescent, Magnetic Low-Voltage, Electronic Low-Voltage, Neon/Cold Cathode, Fluorescent
Ballast, High-Intensity Discharge
Power Requirements
Primary 100-277 Volts AC, 50/60Hz, supplied via channel 1 (L1, N1)
Secondary (optional) 9 watts at 24 Volts DC, supplied via Cresnet®
Environmental
Temperature 32° to 104°F (0° to 40°C)
Humidity 10% to 90% RH (non-condensing)
Heat Dissipation 550 BTU/Hr
Electrical Regulatory Certifications
UL508, Section 41 (Endurance Test) and Section 61C (Electronic Ballasts)
UL924, Emergency Power Equipment
IEC60669-2-1, Section 19.102 (Contact mechanisms incorporated in electronic switches, intended for fluorescent lamp circuits or
other capacitive loads)
Module SCCR Rating - 65kA
CE
