5.1.3 Contact SSI bus cover
To program the SSI bus cover with the PC, the lines TxD, RxD and GND must be connected.
Contact assignment:
Encoder function M12 encoder
connector, 5-pin
PC contact
D-SUB, 9-pin
UB Pin 1 -
RxD Pin 2 Pin 3
GND Prg. Pin 3 Pin 5
GND B Pin 4 Pin 5
TxD Pin 5 Pin 2
Br. Pin 4 to 6
Br. Pin 7 to 8
Also connect encoder via the device plug to voltage UB (red) and GND (blue).

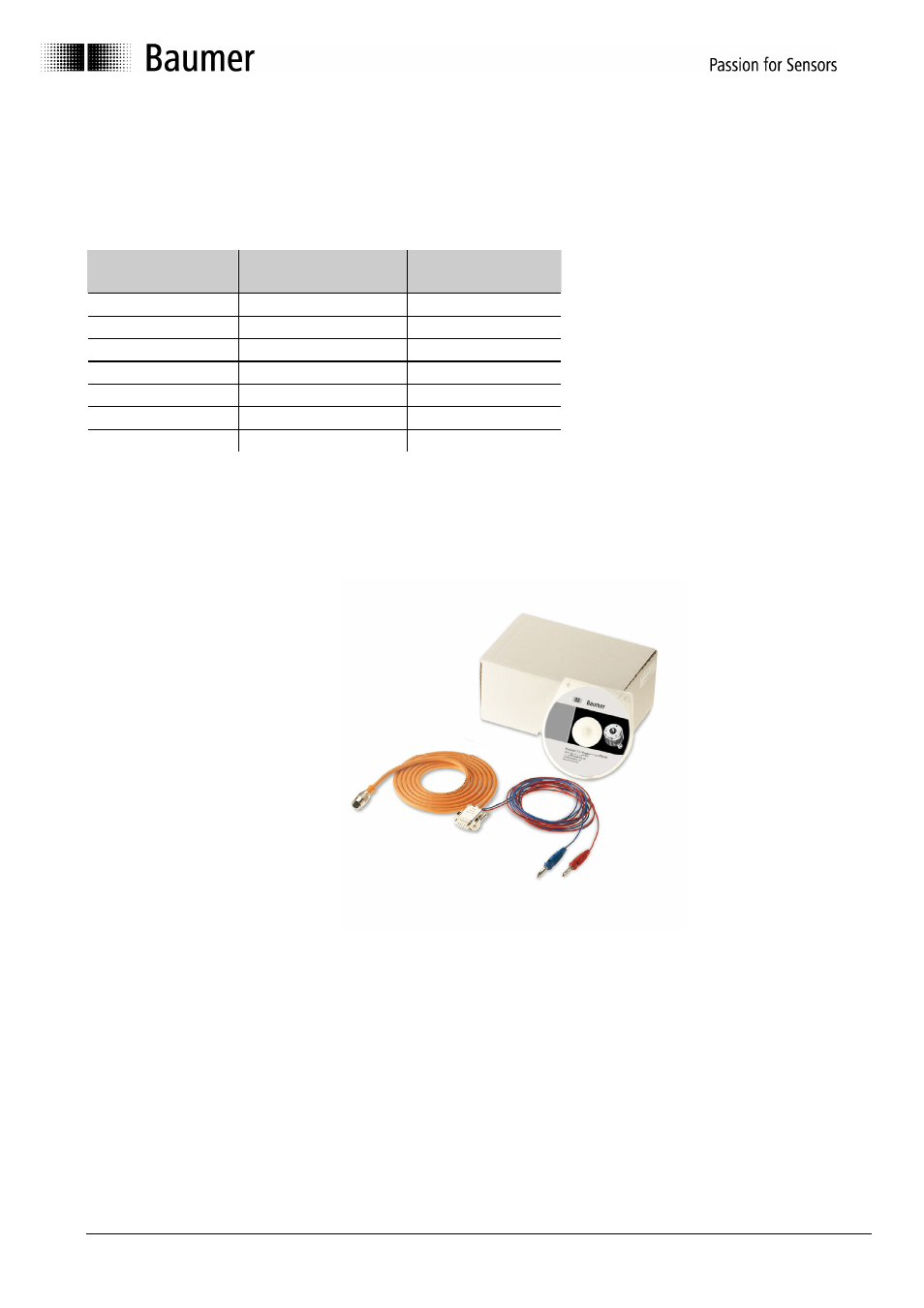

Accessories:
Z 139.008 Programming cable for SSI bus encoders
Programming software ProGeber
Manual on CD
