4.7 Explanation „Teach In“
The „Teach In“ function serves to scale the encoder automatically. This facilitates the
programming of the encoder for the user.
(The function may vary according to the corresponding encoder model).

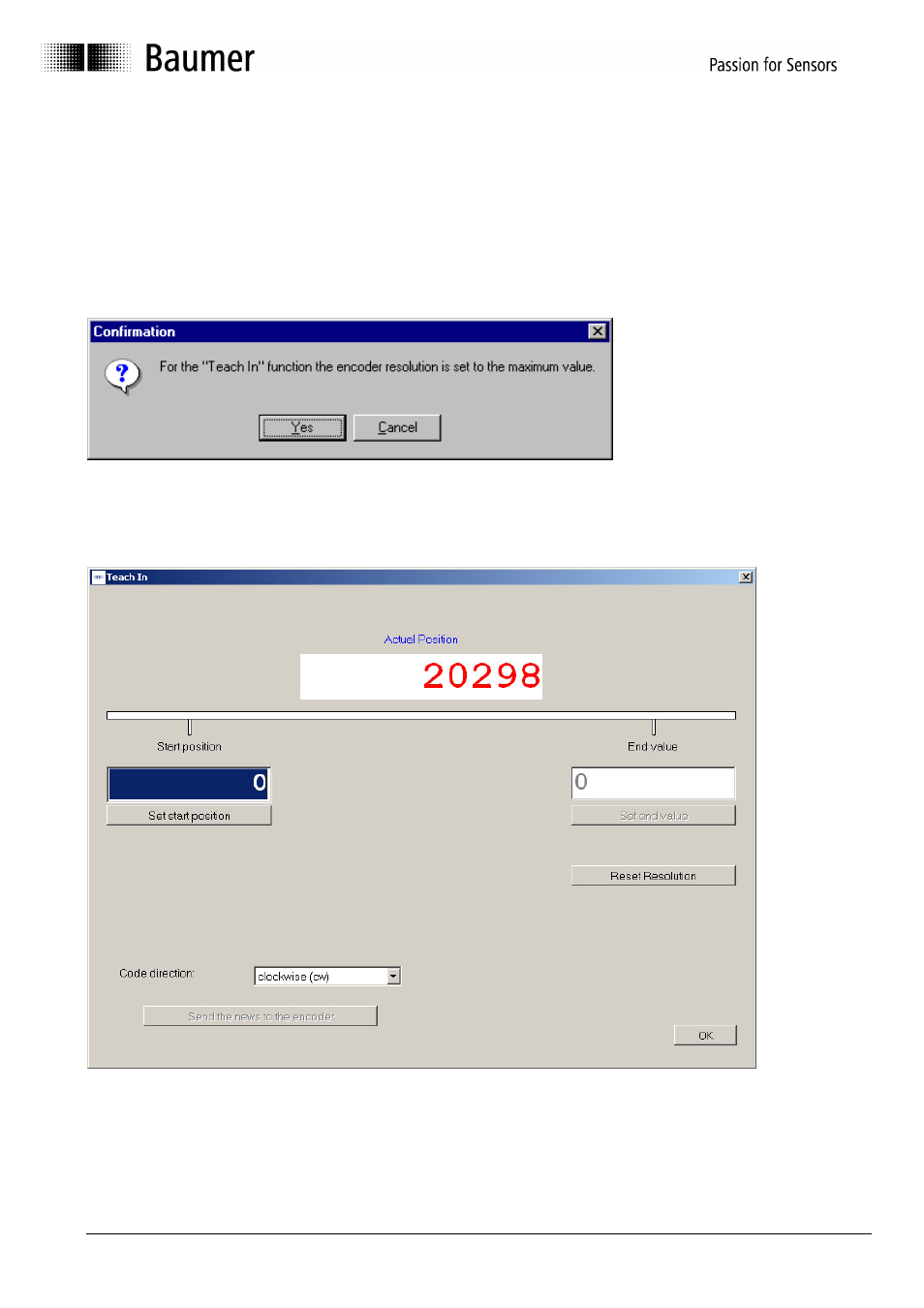

When the „Teach In“ function is selected, a message appears saying that the resolution of the
encoder will be set to the maximum value:
Click „Yes“ to confirm the setting of the encoder to the maximum resolution. The following
window will be displayed:
In the field „current position“, the current value of the encoder with max. resolution is
displayed.
