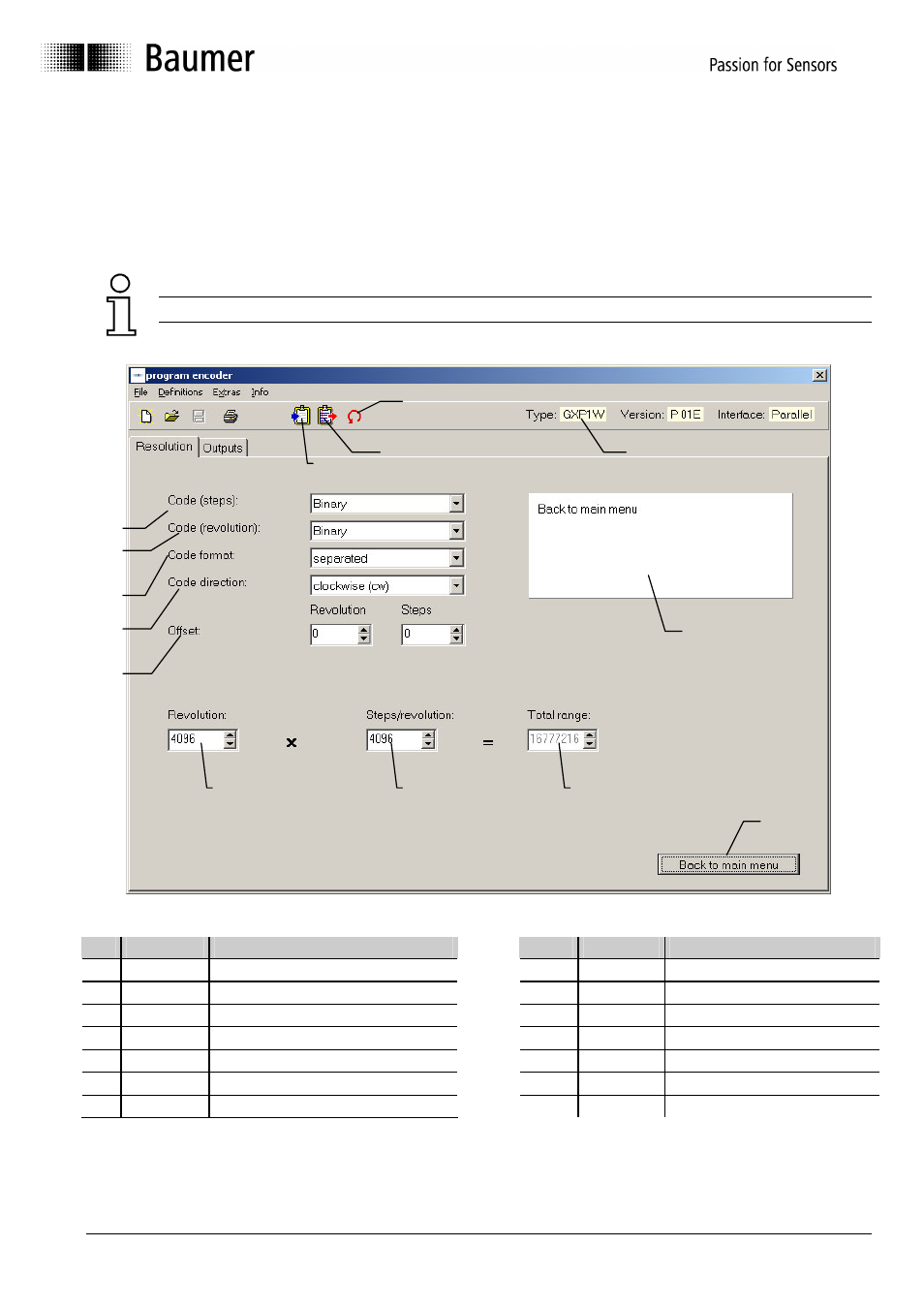

4.2 Explanation of programming mask „resolution“
The programming mask, with which the resolution of the encoder can be set, is explained in
detail below. The mask below shows the maximum possible settings. It may look different
according to the encoder model. Only parameters that are supported by the selected encoder
are being offered.
The mask may vary according to the corresponding encoder model.
N° Chapter Field N° Chapter Field
1 4.2.1 Code (steps) 8 4.2.8 Entire resolution
2 4.2.2 Code (revolution) 9 4.2.9 Back to main menu
3 4.2.3 Code format 10 4.2.10 Dialog window
4 4.2.4 Counting direction 11 4.2.11 Display type of encoder
5 4.2.5 Offset or preset 12 4.2.12 Read encoder data
6 4.2.6 Revolutions 13 4.2.13 Send encoder data
7 4.2.7 Steps / revolution 14 4.5 Position display
1
2
3
4
5
12
13 11
10
8 7 6
9
14
