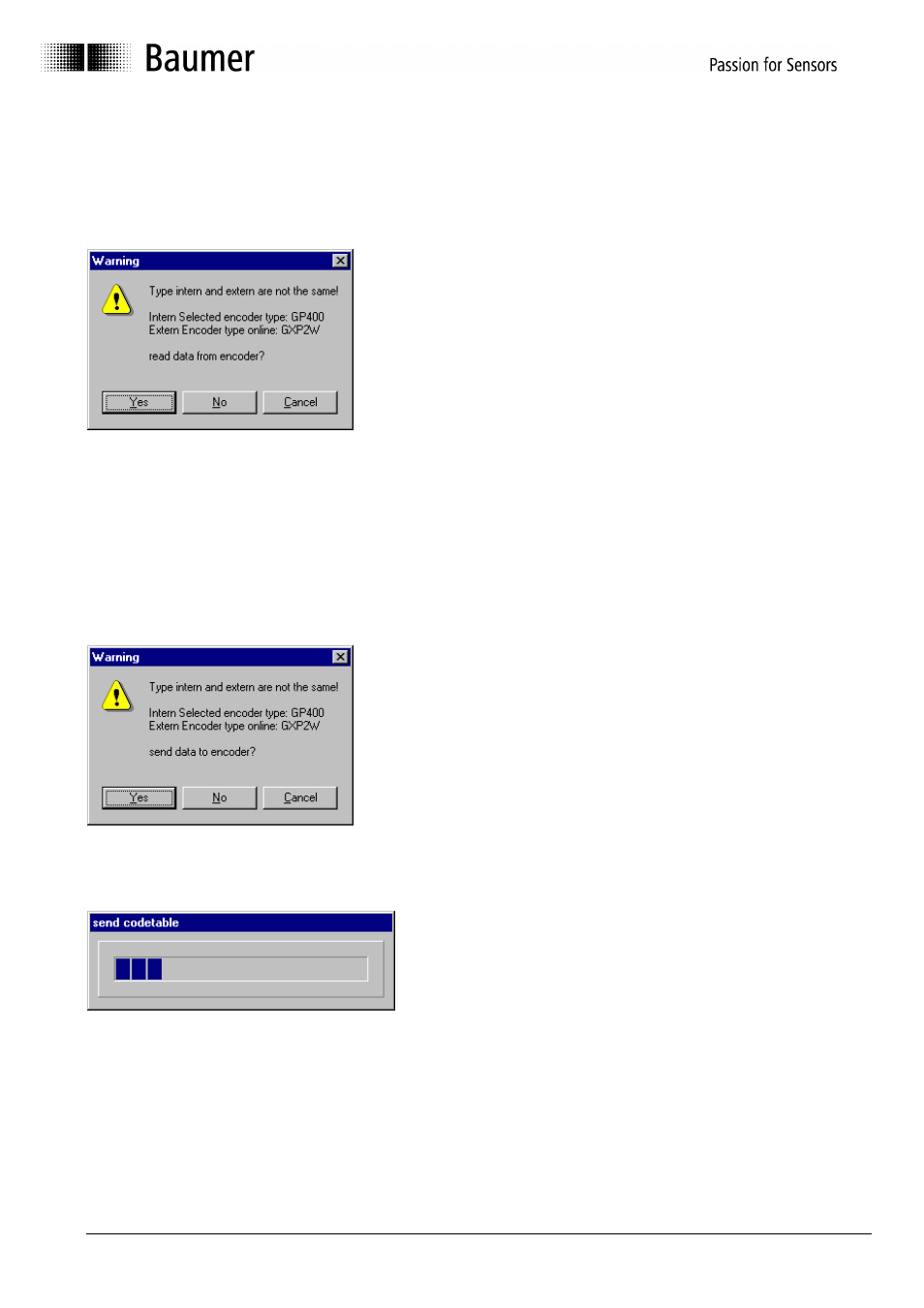

4.2.12 Read encoder data
The connected encoder is read out. Before the register card for „resolution“ and „outputs“ is
overwritten, it can be saved. If the connected type of encoder is not identical with the selected
one, the following error message will be displayed:
If the selected type of encoder and the connected one are identical, the data will be read in
and displayed.
4.2.13 Send encoder data
The encoder connected to the interface is programmed with the set parameters. If the
connected type of encoder and the selected one are not identical, the following error message
will be displayed:
During the data transmission, the data is stored in the encoder while being protected against
power failure. The transmission takes a few seconds and is displayed as follows:
