Chapter 1: CFX Automation System II Installation
6 | CFX Automation System II 6 |
Install the CFX System(s)
1. Install the CFX System(s) in the desired positions.
■ n
Single CFX System. Align the right side feet of the CFX System in the mounting plate
such that the CFX System front panel is facing forward (Figure 2)
■ n
Dual CFX Systems. Align the front feet of the CFX Systems in the mounting plate such
that the CFX Systems’ front panels are facing the plate handler (Figure 2)
2. Connect CFX System(s) power cord(s) and communication cable(s). For detailed
instructions on installing the CFX Systems, refer to the CFX Systems instruction manual
(bulletin #10021337).
3. Install the plate lifter (Figure 5) in all 384-well CFX Systems configured with the plate handler.
The plate lifter aids in the removal of 384-well plates by gently lifting the plate slightly out of
the reaction block when the heated lid is opened.
Note: The plate lifter is not required for 96-well CFX Systems. Save unused plate lifters for
potential future use with 384-well CFX Systems.
■ n
Place the plate lifter around the outside of the 384-well block, with the lifters facing up
(Figure 5)
■ n
Gently press down on the long edges of the plate lifter until the four notches on the short
side of the plate lifter push against the 384-well block
■ n
Examine the plate lifter to ensure that it is properly installed
Level the Plate Handler
WARNING! This step requires two people. The plate handler weighs 110 lb (55 kg). When
lifting, grasp only the bottom of the plate handler. Do not lift the system by the arm.
Note: The bench top must be able to support the weight of the computer, the plate handler
and the CFX System(s) without sagging. An uneven surface will result in the misalignment of the
plate handler.

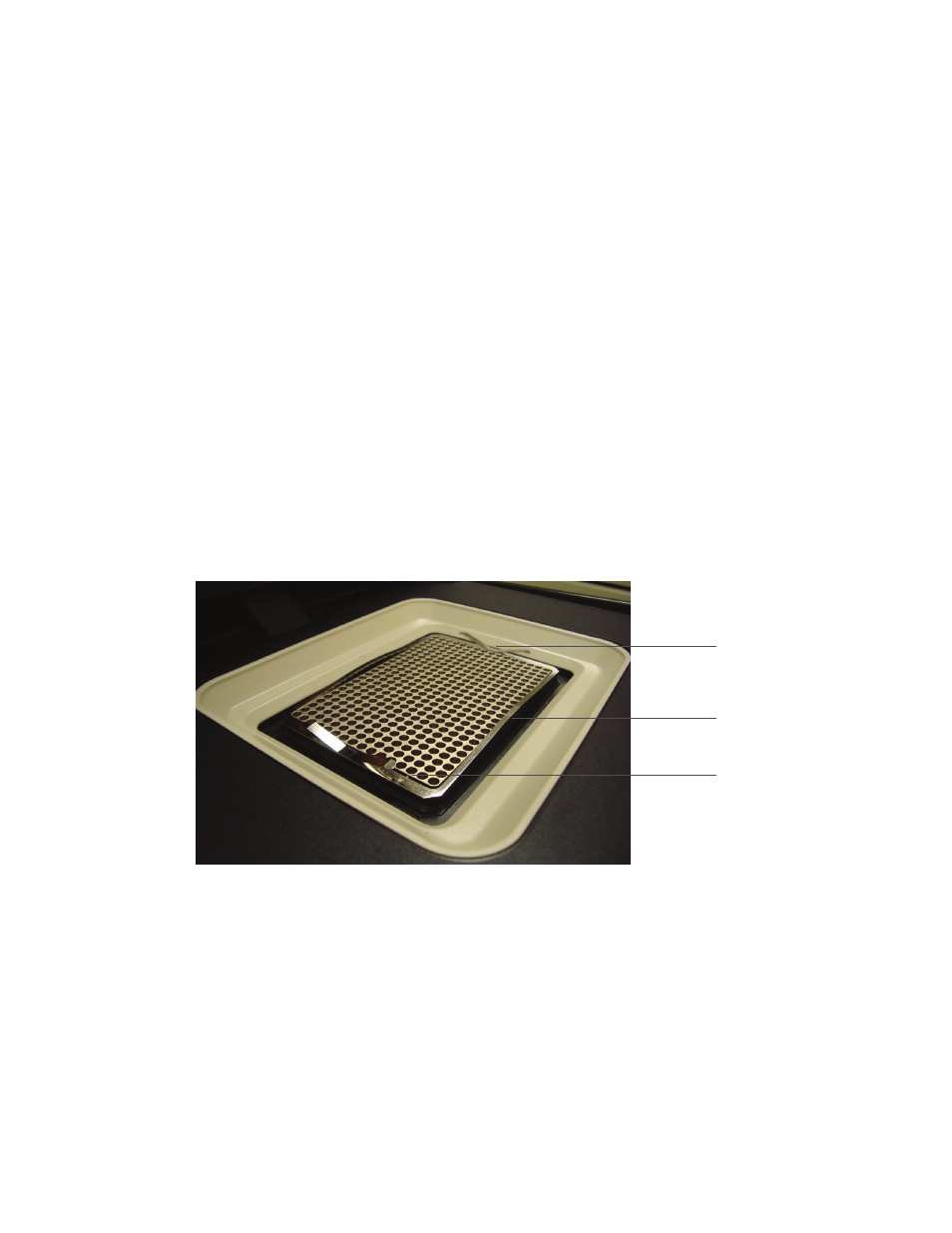

Fig. 5. Plate lifter for 384-well CFX Systems.
Lifters face upward
Press down here
Notches push into block
