Amico SSM Monitor Arms (Side to Side) - Manual (Page 21)

www.amico.com 18
WARNING: DO NOT adjust the rotation tension bolt.
If there are problems associated with the head rotation
please contact Amico Accessories or refer to the
troubleshooting section (Page 29) for more information.

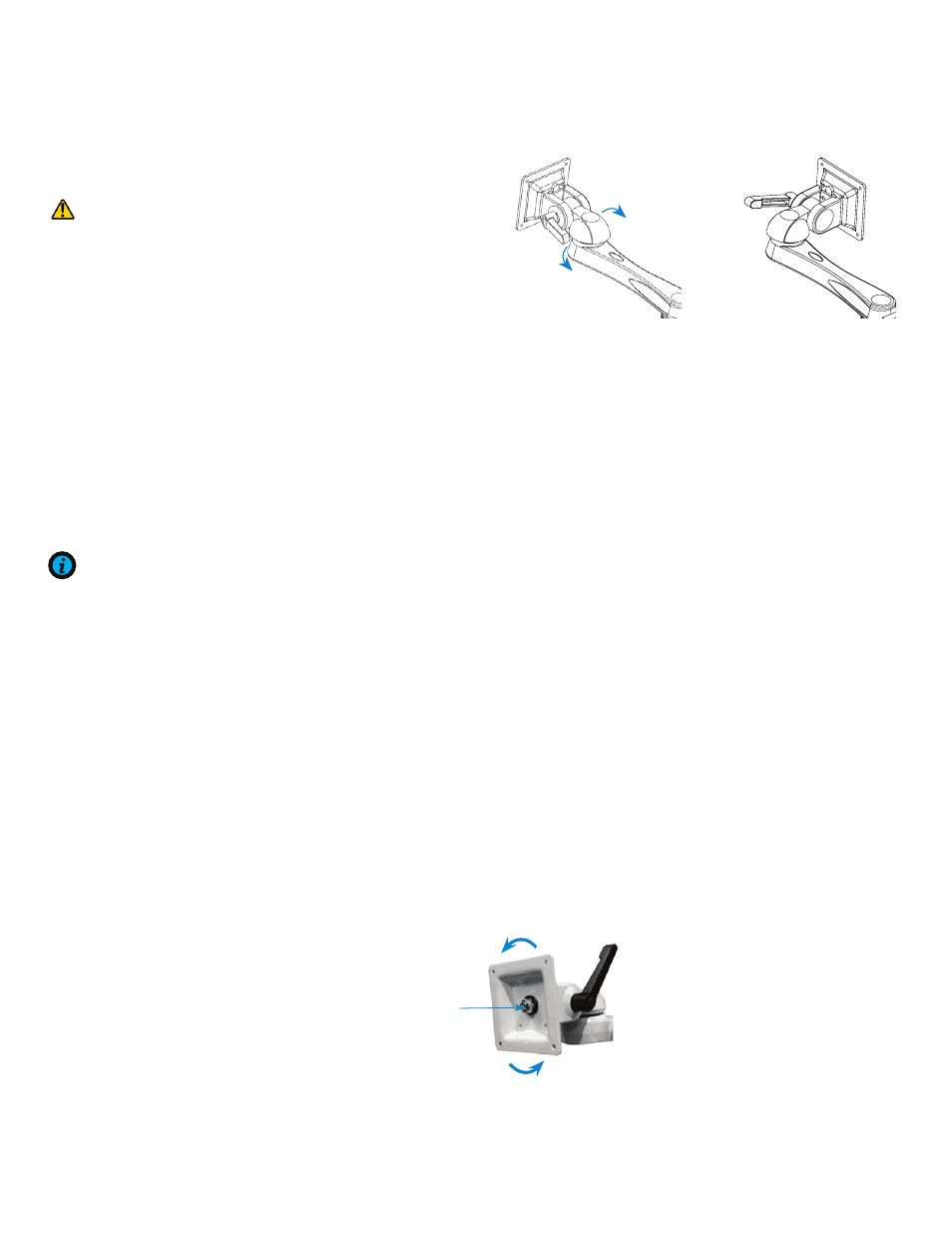

1. The monitor rotates at the front of the arm. To rotate
the monitor, push the corners of the device or the
head while holding the SSM arm. If the SSM is not
held in place, the monitor head will rotate with the
swivel post.
(Figure 1)
(Figure 1)
Head Rotated
Section 4: Adjustments
NOTE: It is recommended to make the adjustments with the monitor mounted.
1. To adjust the orientation, turn the monitor. The monitor can turn up to 135 degrees in either left or right. The
stopper is built so that it cannot rotate further than 135 degrees. (Figure 1)
2. To adjust the tension of the portrait and landscape feature for VESA 75 plate, The monitor must be removed
from the Monitor Head. Remove the four VESA 75 screws from the monitor. Turn the Rotational Tension Bolt
(Figure 1) in the center of the VESA adapter clockwise to tighten the tension. Turn counterclockwise to loosen
the tension. After tension is adjusted, remount the monitor. (Refer to Page 17)
3. To adjust the tension of the portrait and landscape feature for VESA 100 plate, The monitor must be removed
from the Monitor Head. Remove the four inner screws that secure the VESA 100 plate to the VESA 75 plate.
There is no need to remove the VESA 100 plate from the monitor. Turn the Rotational Tension Bolt
(Figure 1) in
the center of the VESA adapter clockwise to tighten the tension. Turn counterclockwise to loosen the tension.
After tension is adjusted, remount the monitor. (Refer to Page 14)
(Figure 1)
Rotational Tension Bolt
Rotation (Monitor Head)
Portrait and Landscape Adjustment
