13 Amico Accessories
Section 3: Monitor Installation
NOTE: Setting the VESA shelf horizontally can make the mounting procedure easier.
NOTE: If the original monitor bolts are too large, determine the screw size and consult with Amico Accessories
1. Determine the monitor mounting configuration. VESA 75 (75 mm x 75 mm M4 thread) or VESA 100 (100 mm x
100 mm M4 threads)
2. If a VESA 75 configuration is present on the monitor then lift the monitor to match the mounting holes on the
VESA 75 shelf (Figure 1) . Fasten 2 M4 screws by hand through the back of the VESA 75 shelf and into the rear
of the monitor. Secure the 2 remaining screws through the holes on the back of the VESA 75 shelf and into the
monitor. Ensure all screws are secured. Be sure not to force the screw in, as it may strip the head. The VESA 100
adapter will not be required. Tighten using a cross pattern.
3. If a VESA 100 configuration is present on the monitor then attach the back of the VESA 100 adapter to the front
of the VESA 75 shelf. This is done by inserting 4 M4 screws through the holes on the back of the VESA 75 shelf,
into the inner threads from the back of the VESA 100 adapter
(Figure 2 and 3) Lift the monitor to match the
mounting holes on the VESA 100 adapter. Secure 4 M4 screws provided by the monitor manufacturer through
the back of the VESA 100 adapter and into the monitor. Ensure all screws are secured; be sure not to force the
screw in, as it may strip the head. Tighten using a cross pattern.

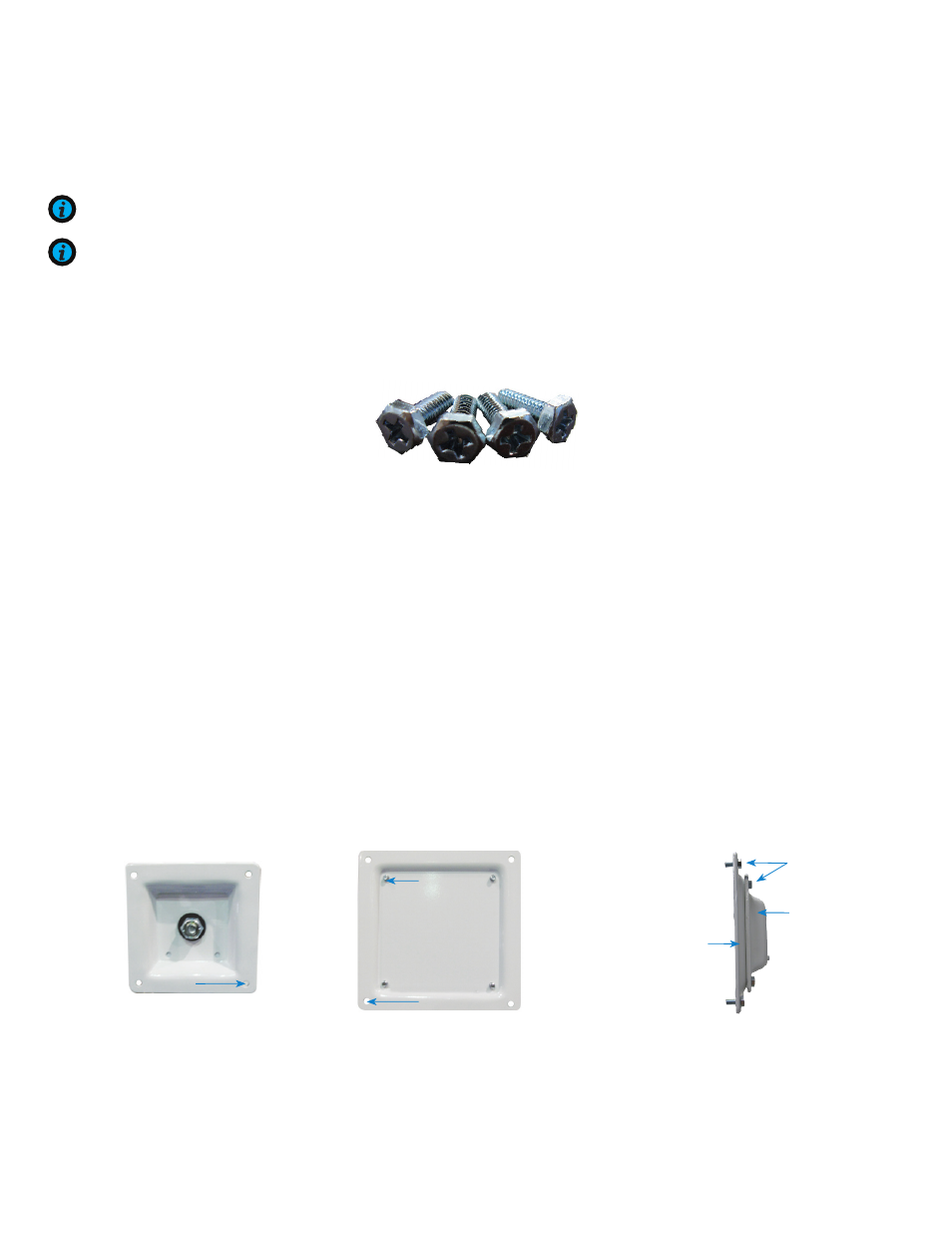

(Figure 1)
Front of the VESA 75 shelf
M4 mounting hole
Screws
(Figure 3)
Side of the VESA 75 and VESA 100 together
VESA 100
VESA 75
(Figure 2)
Front of the VESA 100 adapter
M4 mounting hole
M4 inner threads
M4 screws for VESA
Monitor Mounting: VESA 75/100
