Section 3: Monitor Installation
WARNING: Ensure the mounting shelf is secure and horizontal to prevent the monitor from sliding and falling.

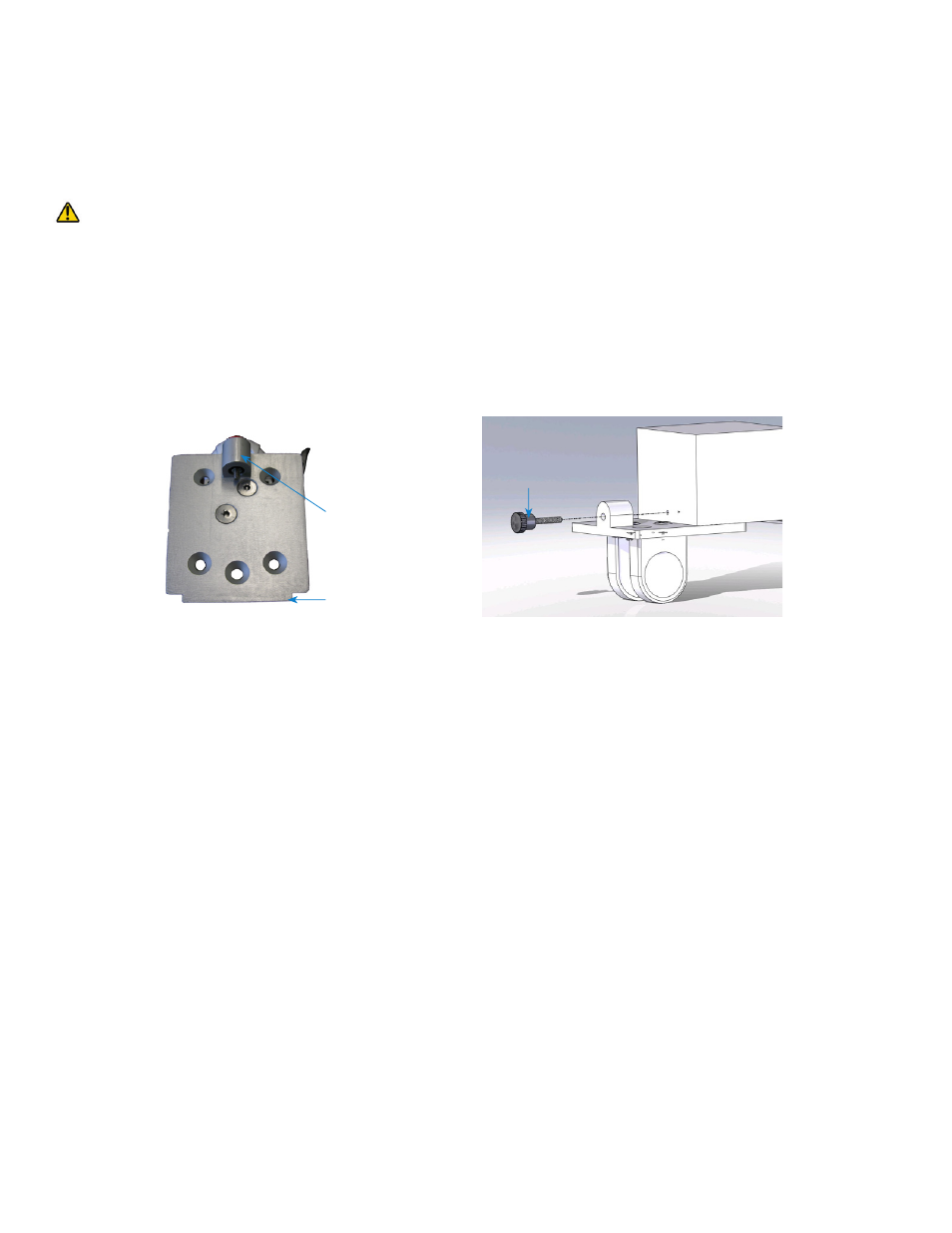

1. To attach the monitor to the Welch Allyn shelf, lift the monitor to match the front lip of the mounting plate.
Slide the monitor laterally until the mounting hole on the monitor aligns with the thumb screw on the adapter.
(Figure 1)
2. Tighten the thumb screw to the tightest possible position. (Figure 2)
(Figure 1)
Thumb screw
Front lip
(Figure 2)
Thumb screw
Monitor Shelf: Welch Allyn
