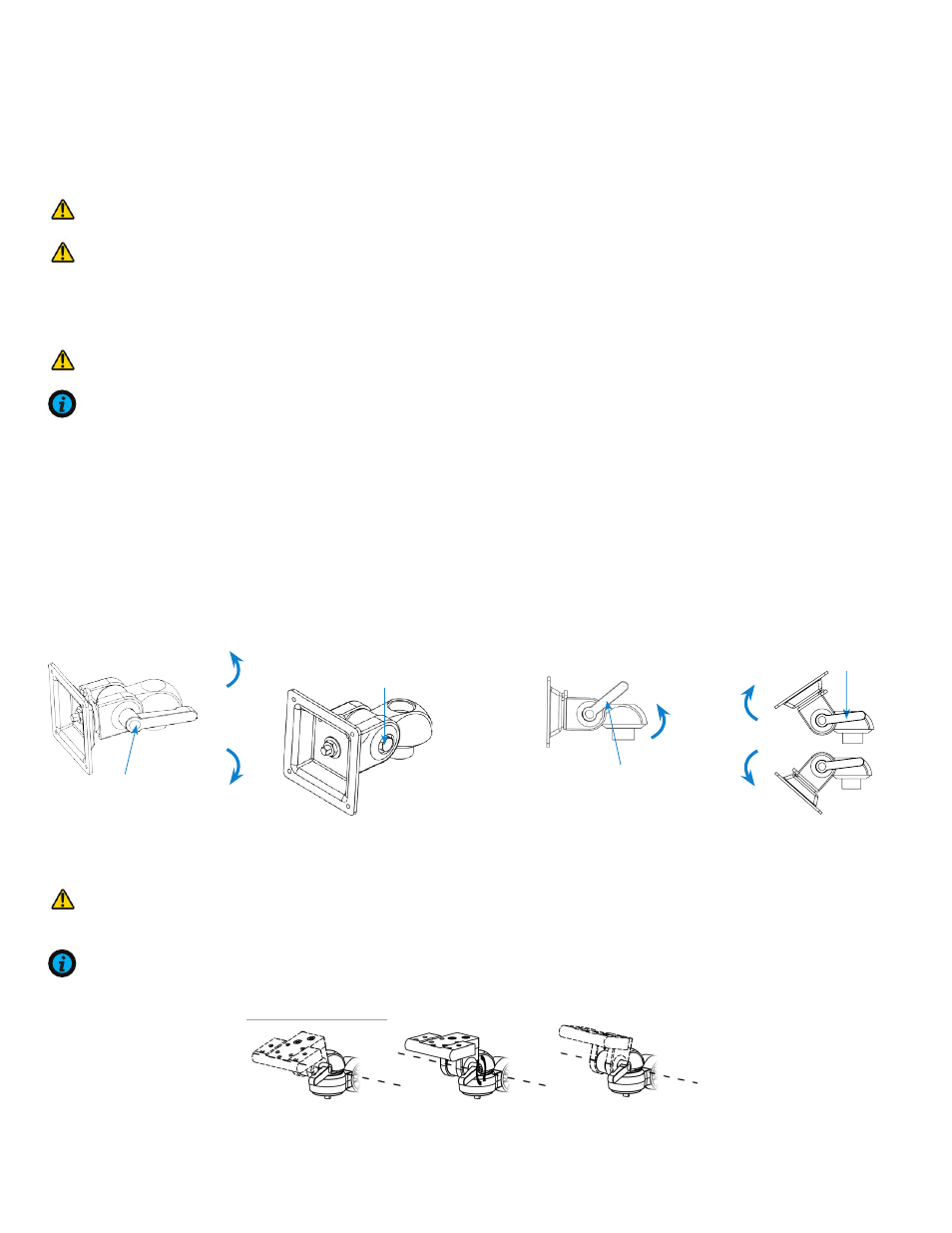

(Figure 3)
Adjustment Lever
(Figure 2)
Loosen Lever
(Figure 1)
12 mm hex nut for heavy duty
or tamper proof applications To loosen
To tighten
4 mm Allen Key
to loosen handle
WARNING: Be sure to support the monitor if adjusting the tilt angle with the monitor mounted.
WARNING: For heavier monitors, it is strongly recommended to check whether the adjustment lever is tightened
to the tightest position with the weight of the monitor attached. If the adjustment lever cannot be tightened
enough to lock the monitor in place. Remove the Adjustment lever using a 4 mm Allen key, and use the 12 mm
hex nut inside to adjust.
WARNING: Never attempt to tilt without first loosening the handle.
NOTE: Tilt of the mounted device can be adjusted. The adjustment lever locks the tilt of the shelf by loosening,
rotating, and then locking the handle. For heavier loads or to prevent tampering, it is recommended to remove
the adjustment handle using a 4 mm Allen key and use the 12 mm hex nut to adjust.
(Figure 1)
1. To tilt, support the monitor first and loosen the Adjustment Lever by turning the lever counter-clockwise, grasp
the top and bottom of the device and tilt it to the desired angle. Re-secure the adjustment lever (Figure 2 &
3)
2. Pull out lever to reposition and lock back into place. Repeat to tighten further. (Figure 1)
Section 4: Adjustments
WARNING: Please, consult with your monitor manufacturer as some recommend 15 degrees for the maximum
tilt.
NOTE: On the SSM-XX(0, 3, 8 and W) models, the angle of the tilt is limited by a locking pin. The maximum tilt set
for the corresponding monitor models is ±30 degrees (See Figure 4) .
(Figure 4)
Monitor Tilt
