Amico SSM Monitor Arms (Side to Side) - Manual (Page 14)

11 Amico Accessories
Section 3: Monitor Installation
WARNING: Ensure the mounting shelf is firmly locked and horizontal to prevent the monitor from sliding and
falling.
NOTE: Philips recommends a Maximum tilt of 15 degrees.
NOTE: It is recommend to use M6 x 20 mm screws with thread locker or patched screws in order to eliminate
possible dangers.

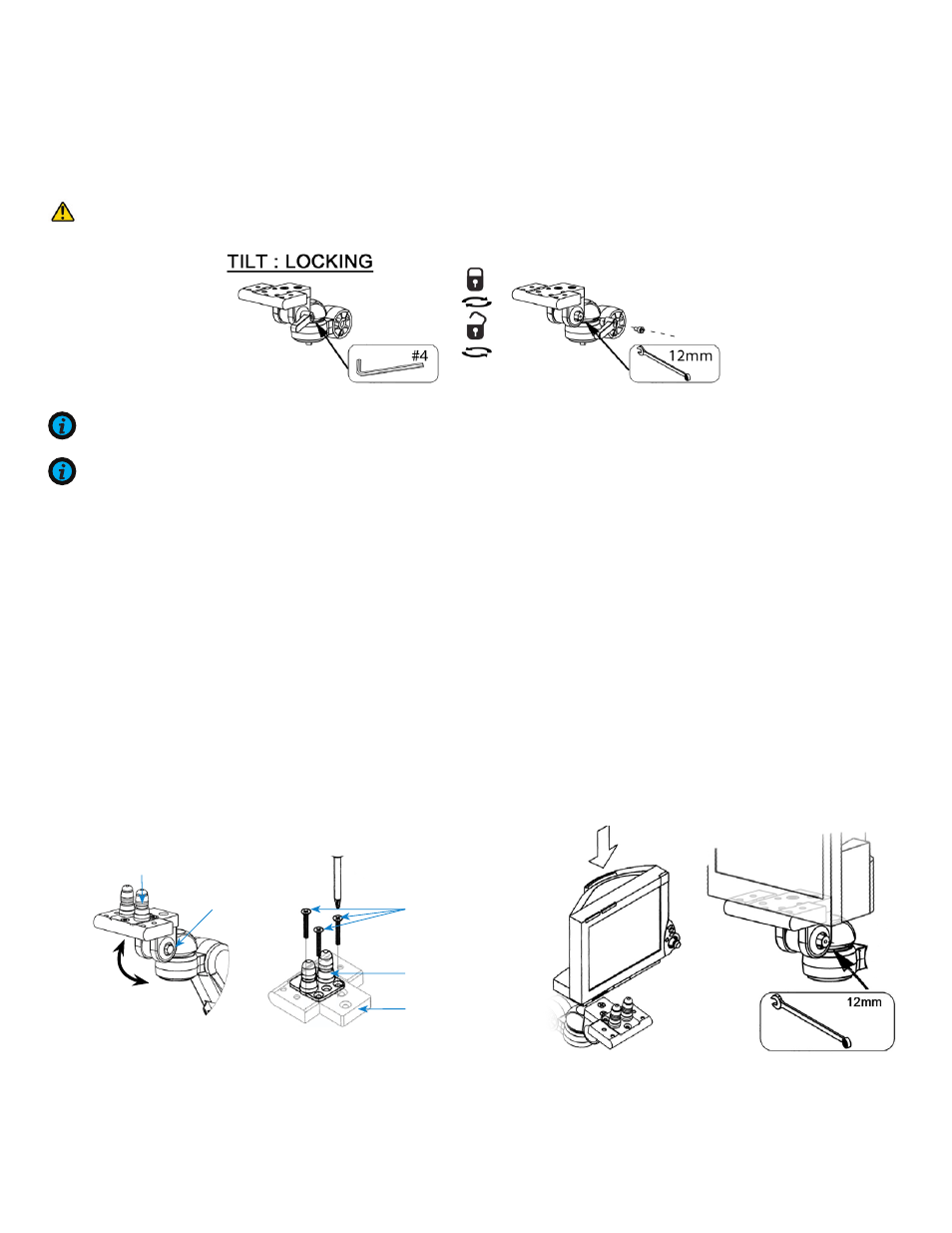

1. Attach the table top mount from Philips (not supplied by Amico) to the mounting shelf by securing the 3 screws
through the shelf (Figure 2).
2. Place the monitor to the table top mount until it clicks (Figure 3) .
3. Tilt the monitor to the desired angle and re-adjust the tension as needed with a 12 mm wrench (Figure 4).
(Figure 3) (Figure 4) (Figure 2)
Mounting shelf
Three 20 mm
M6 screws
Table top mount
To loosen
To tighten
12 mm hex nut
(Figure 1)
1. 2.
Monitor Shelf: Philips Intellivue
Philips Table Top Mount
(not supplied)
