Section 3: Monitor Installation
WARNING: Ensure the mounting shelf is secure and vertical to prevent the monitor from sliding and/or falling.
NOTE: Quick installation system: On the back of the mounting plate there is a plunger that secures the plate to
the mounting adapter. Simply slide and align the adapter to the shelf and the plunger will automatically engage
and lock.
1. First, install the mounting adapter to the back of the monitor (Please refer to the adapter installation manual
provided with the adapter).
2. Lift the monitor and slide the mounting adapter plate on to the mounting shelf. Slide the monitor down until
the mounting hole on the mounting adapter aligns with the plunger (Figure 1) . When the hole and the
plunger are perfectly aligned the plunger will automatically lock. If the plunger does not lock automatically
then lock the plunger manually by turning it. Tighten the locking screws by hand to the tightest possible
position (Figure 2).

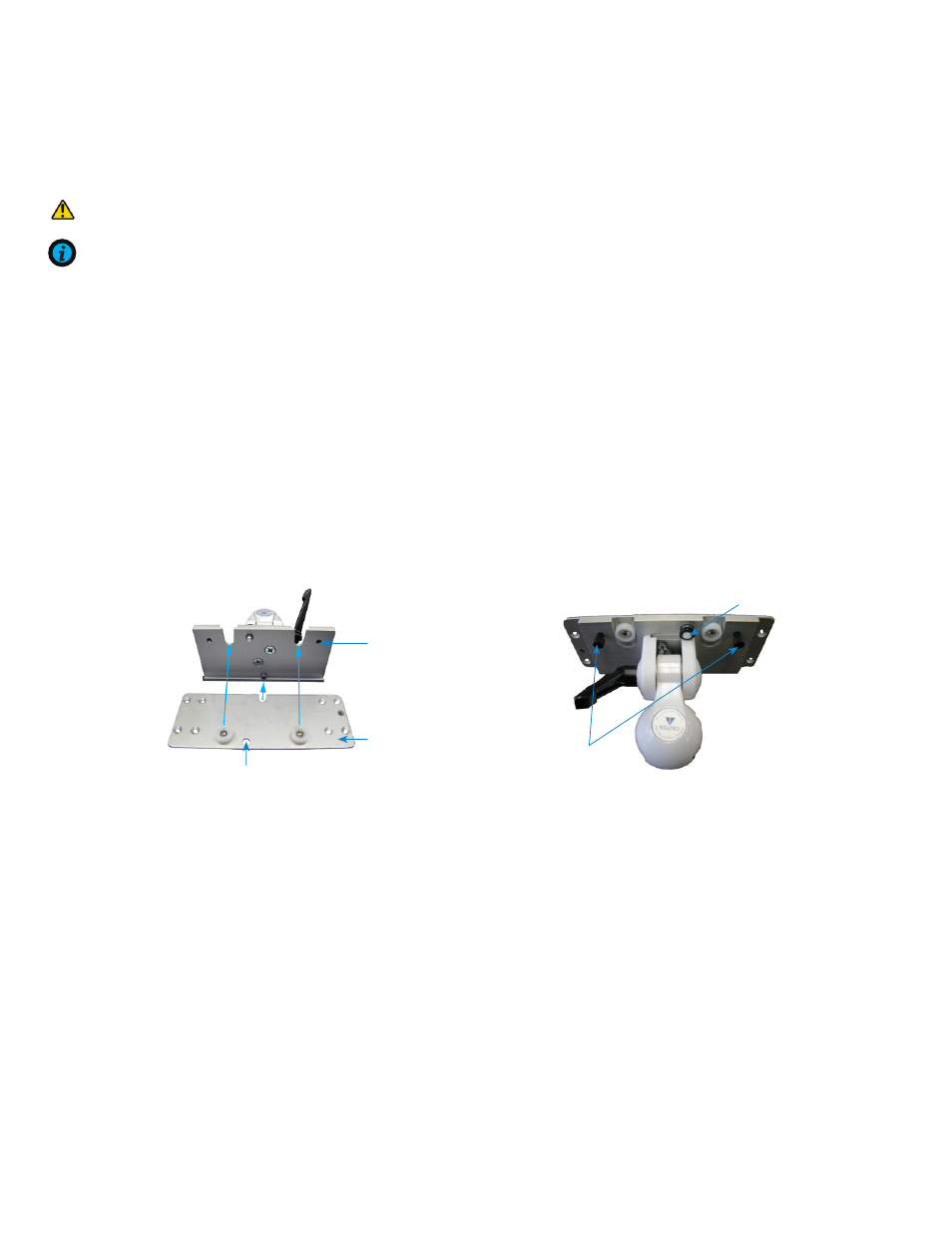

(Figure 1)
Mounting shelf
Mounting adapter
plate
Mounting hole
(Figure 2)
Locking screws
Plunger Lock
Monitor Shelf: 6” Drop On
