Install SMV Reflector
Refer to Figure 42
155. Select one:
407-512D SMV POST 2 1/2 U-BOLT
and two sets:
802-091C HHCS 1/2-13X1 1/2 GR5
804-015C WASHER LOCK SPRING 1/2 PLT
803-020C NUT HEX 1/2-13 PLT
156. With the SMV reflector up and facing rear, mount
the SMV post on the rear face of the wing
rest .
Mount Ground Drive Wheel
If the implement is an anhydrous model, or was ordered
without a ground drive pump, continue at section “Final
Setup” on page 32.
Sharp Object Hazard:
Use a hoist or two people. Wear gloves. The wheel is heavy
and the tines are sharp.
Refer to Figure 43
157. Select one:
407-473D GROUND DRIVE WHEEL
and three sets:
802-331C RHSNB 1/2-13X1 3/4 GR5
804-015C WASHER LOCK SPRING 1/2 PLT
803-020C NUT HEX 1/2-13 PLT
158. At the ground drive hub , orient the wheel so that
at the top, the vertical face of the top tooth is to the
rear, and the longer angled face is to the front.
159. Secure the wheel to the hub with bolts , lock
washers and nuts .

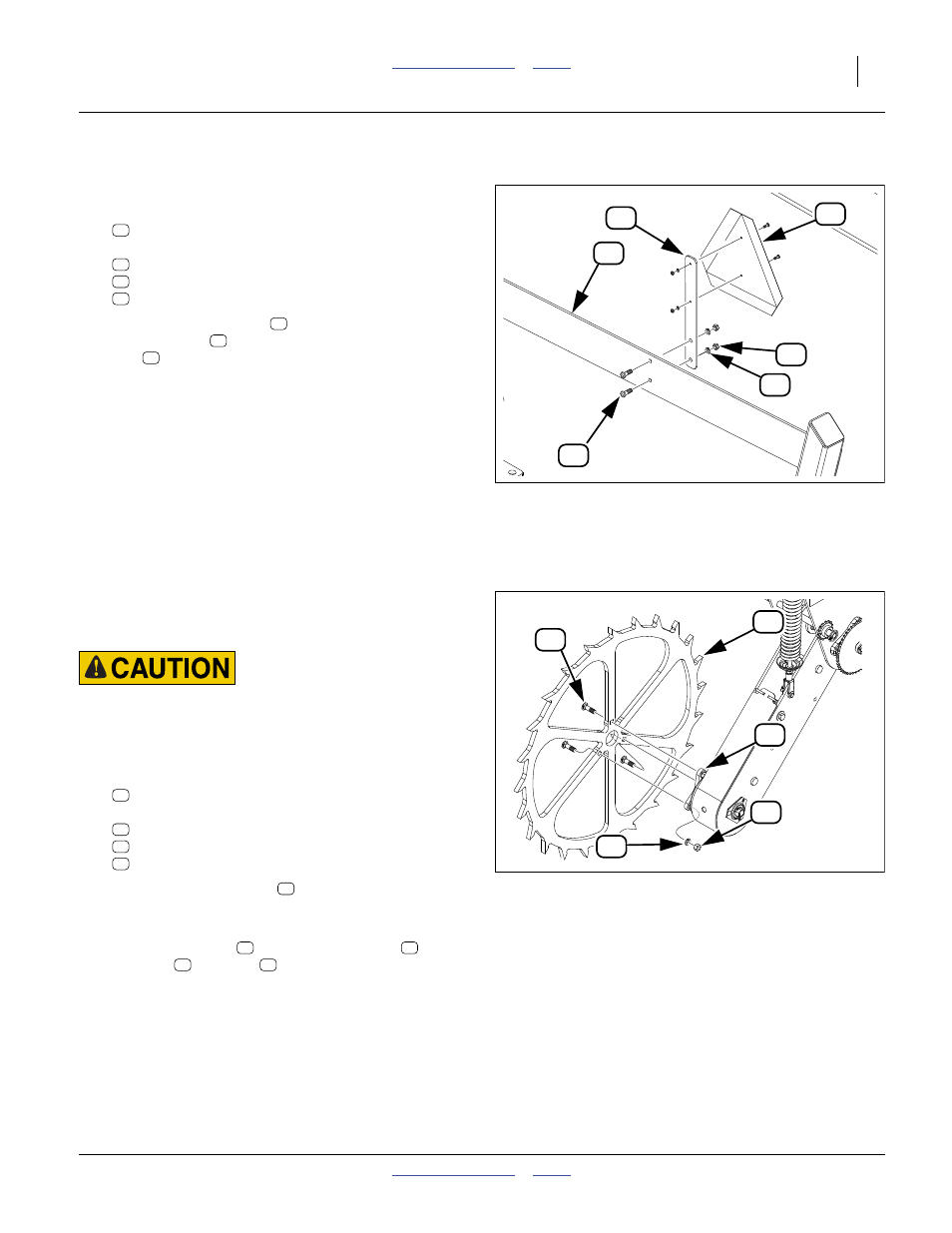

Figure 42
Install SMV Reflector
31024
35
62
53
56
79
32
35
53
62
56
79
35
32
Figure 43
Install Ground Drive Wheel
31719
31
54
56
62
26
31
54
62
56
26
31 54
62 56
