Great Plains Manufacturing, Inc. Table of Contents Index Install Components 19
08/30/2011 Table of Contents Index 407-313Q
Dismount Transport Rest

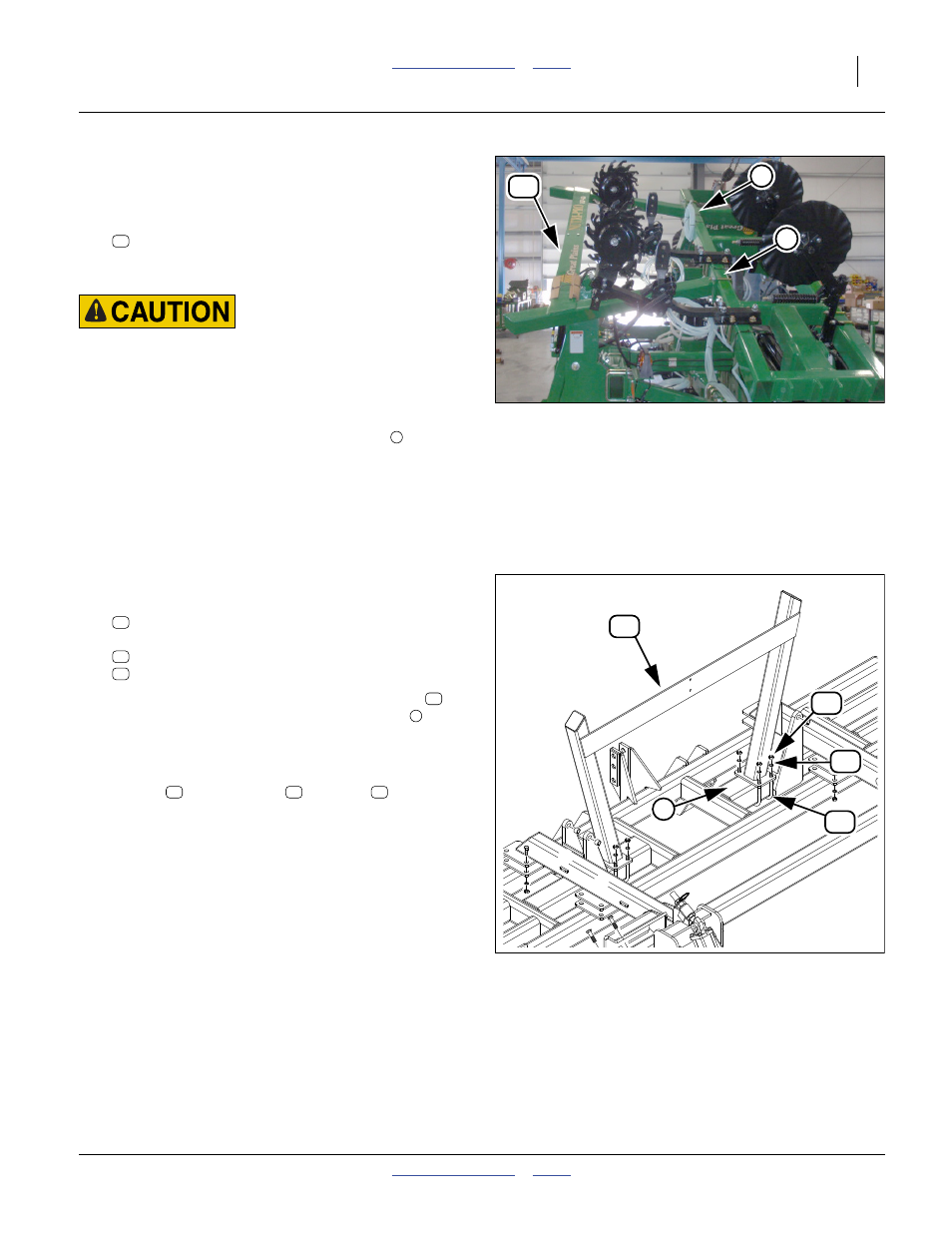

Refer to Figure 24 and Figure 25 (depicting wings still folded)
85. With the wings unfolded, attach hoist lines at each
end of the cross plate of the:
407-478H NP40 WING REST
Loop them around both the riser tubes below and
the plate to keep them from slipping.
Sharp Object Hazards:
Keep feet and legs clear of anhydrous knives and disc sealers.
On NP40A, this dismount requires working in between row
implements. Knives and sealers are sharp and can cause
injury.
86. Loosen the nuts on the shipping U-bolts . Check
that the hoist is supporting the full weight of the free
end of the rest.
87. Have workers support the base ends of the rest
while removing the U-bolts completely.
Install Transport Rest
Refer to Figure 25
88. Select two:
806-039C U-BOLT 5/8-11 X 6 1/32 X 7 3/4
and eight sets:
803-021C NUT HEX 5/8-11 PLT
804-022C WASHER LOCK SPRING 5/8 PLT
89. With the cross plate to the rear, hoist the rest to
implement center, over the middle tool bars of the
mainframe.
90. Check that the rest’s base plates are equal dis-
tances from implement center-line. Secure with
U-bolts
, lock washers and nuts
Do not install the SMV reflector until “Install SMV
Reflector” on page 31.
Note: The removed U-bolts are used only for shipping,
and are returned to Great Plains. The transport
rest is installed with different U-bolts.
Figure 24
Transport Rest in Over-Fold
31709
32
5
5
32
5
Figure 25
Transport Rest
31025
32
6
57
64
72
72
57
64
32
6
72 64 57
