Install Tongue
If the implement is a 2-point or 3-point model, continue at
“Install SMV Reflector” on page 31.

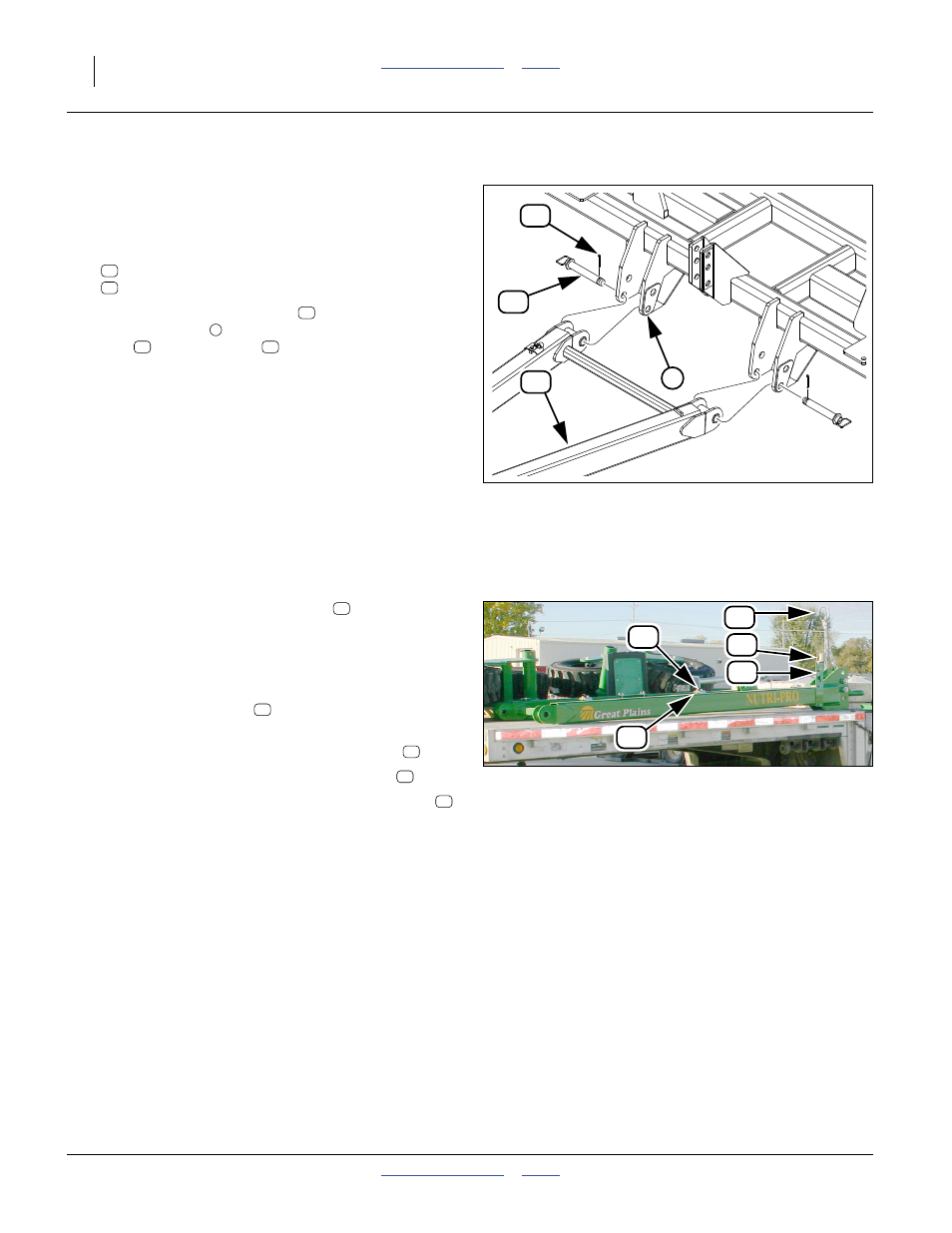

Refer to Figure 40
147. Select two sets:
805-168C PIN HITCH 1 7/16 X 8 3/8 PLT
805-185C PIN COTTER .186 WIRE DIA
148. Raise the rear of the tongue into alignment with
the lower holes of the 3-point hitch. Secure with
pins and cotter pins .
Route Hoses and Cables
Refer to Figure 41
149. Loosen fasteners at hose clamps
on tongue.
150. Route implement hydraulic hoses under clamps,
leaving enough slack at pins for tongue to dip well
below level on hills afield.
151. Route lighting harness and controller harness
(Option) through clips on top of hose clamp
stacks.
152. Coil excess hose and cable in the wire loop .
153. Store the lighting connector in the rain cap .
154. Store two hydraulic hoses in the caddy keyholes .
