26 NP30 or NP40 Table of Contents Index Great Plains Manufacturing, Inc.
407-313Q Table of Contents Index 08/30/2011

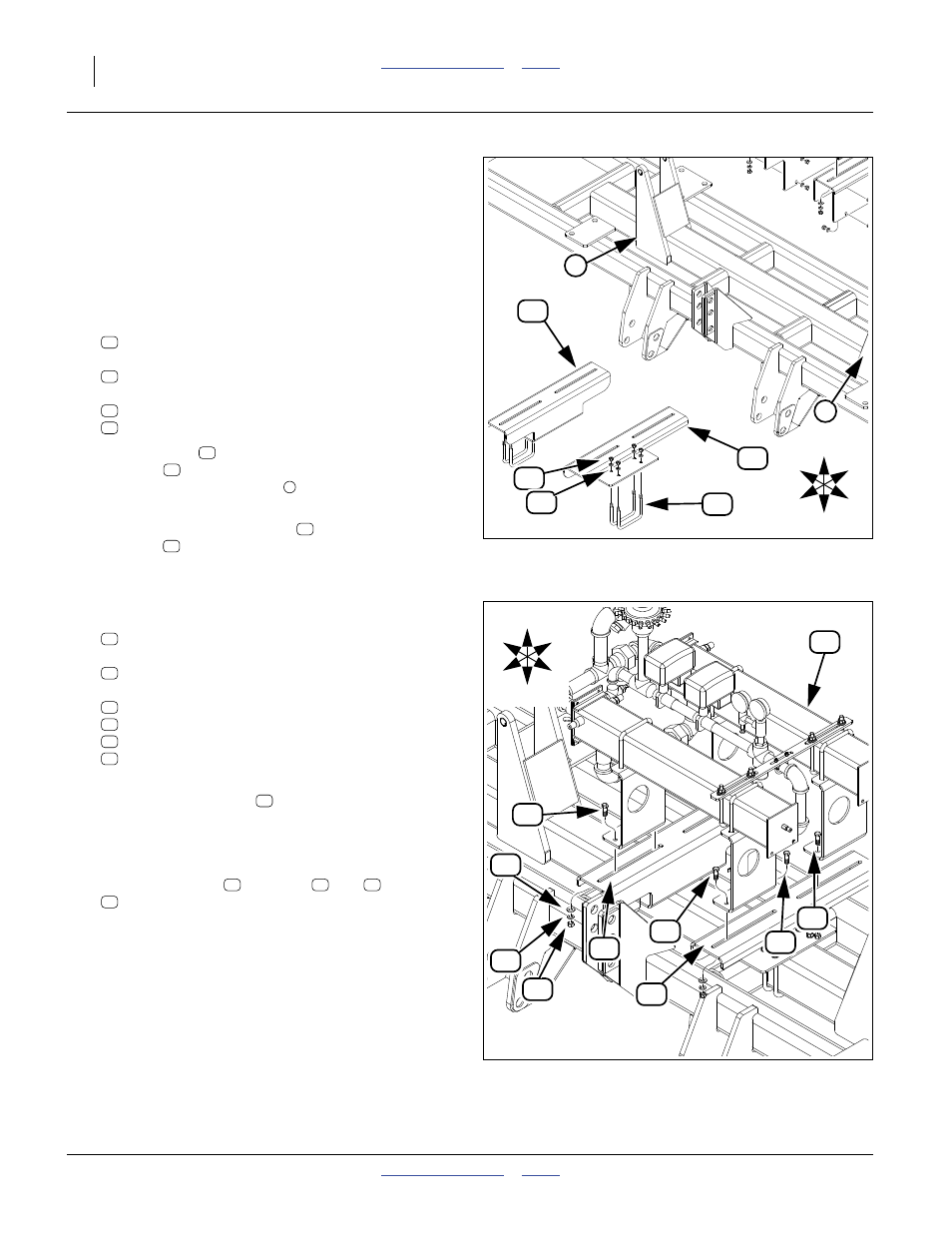

Mount Raven Accuflow Cooler
The Raven Accuflow cooler (single or dual) is shipped
assembled and crated separately from the Nutri-Pro
machine. It must be mounted on the machine.
Attach Accuflow Frame Mount Brackets
Attach the two Accuflow frame mount brackets to the
center section.
Refer to Figure 34
124. Select two:
407-689D ACCUFLOW FRAME MOUNT BRACKET
and four each:
806-060C U-BOLT 1/2-13 X 6 1/32 X 7 1/4
and eight each:
803-020C NUT HEX 1/2-13 PLT
804-015C WASHER LOCK SPRING 1/2 PLT
125. Using U-bolts , attach both frame mount
brackets to middle of the 6x6 frame tube, posi-
tion inside of cylinder lugs .
126. Secure loosely (until coolers are positioned cor-
rectly in next step) with nuts and lock spring
washers .
Attach Cooler Assembly
127. Select cooler (either single or dual):
407-341L SINGLE COOLER ASSY
or
407-477L RAVEN DUAL COOLER ASSY
and eight (for dual cooler), four (for single):
802-091C HHCS 1/2-13X1 1/2 GR5
804-016C WASHER FLAT 1/2 SAE PLT
804-015C WASHER LOCK SPRING 1/2 PLT
803-020C NUT HEX 1/2-13 PLT
128. Install the cooler assembly in the slots on the mount
brackets just attached and center left to right on
the machine.
Note: When installing the single cooler assembly attach it
in the forward most slots of the brackets.
129. Secure with bolts , washers and ,and nuts
, making sure of clearance around transport rest.
Figure 34
Accuflow Frame Mount Brackets
32772
73
36
36
56
62
3
3
U
D
F
B
L
R
36
73
56
62
73
36
3
56
62
Figure 35
Cooler Assembly and
Center Section
32773
53
63
62
56
53
53
53
33
36
36
U
D
F
B
L
R 28
33
53
63
62
56
36
53 63 62
56
