Side gauge wheel adjustment – Great Plains YP825A Operator Manual User Manual
Page 76
72
YP425A, YP625A and YP825A
Great Plains Manufacturing, Inc.
401-651M
2014-08-15
Side Gauge Wheel Adjustment
Refer to Figure 81 and Figure 82
Disc-to-wheel angle and clearance ideally has the wheel
just touching the disk when the wheel is raised to
planting depth (is up against the stop set by the “T”
handle. The goal is to have both disks and wheels turn
freely, but keep soil and trash from getting between them.
These two adjustments interact with each other.
Changing one requires at least checking the other.
In addition to changing the disk angle due to changing
depth or new field conditions, these two settings may
need attention over time as the disk and wheels wear
from normal use. This adjustment will also need to be
made if any opener components are replaced.
For 2 inch (5.1 cm) planting depth, adjust side gauge
wheel angle so wheels contact row unit disks at the
bottom of wheel. Check with row units in soil so wheels
are held up.
At the same time, keep side gauge wheels close to
opener disks so openers do not plug with soil or trash.
Note: Wheels should be out far enough so disks and
wheels turn freely.
Refer to Figure 84 on page 73
To adjust side gauge wheels:
1.
Raise the planter and install lift cylinder locks.
2.
Loosen hex-head bolt
. Move wheel and arm out
on O-ring bushing.
3.
Loosen pivot bolt
Turn hex adjuster
so indicator
notch
is at 5 o’clock to 7 o’clock.
Note: Use this as the starting point for adjustment.
4.
Move wheel arm in so side gauge wheel contacts
row unit disk. Tighten hex-head bolt
to clamp arm
around bushing and shank.
Refer to Figure 83
5.
Check wheel-to-disk contact at 2 inches (5.2 cm)
planting depth. Lift wheel 2 in., check contact and
release. When let go, wheel should fall freely.
• If wheel does not contact disk at bottom to area where
blade leaves contact with soil, move hex adjuster until
wheel is angled for proper contact with disk.

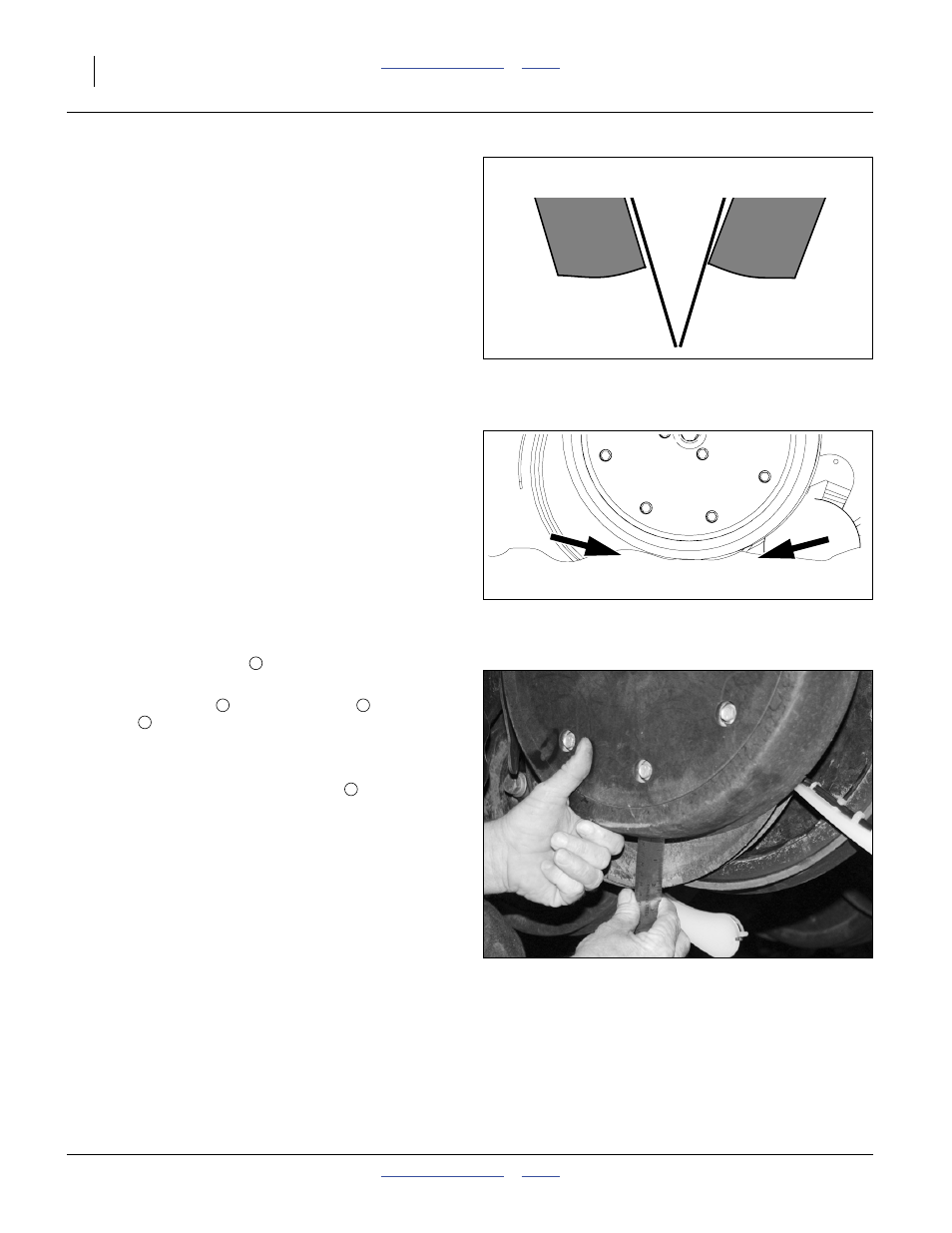

Figure 81
Disk/Gauge Wheel Alignment
Side Gauge
Wheel
Side Gauge
Wheel
Incorrect
Correct
Opener
Disks
Figure 82
Opener-Gauge Wheel Contact
22531
Contact Within this Area
Figure 83
Checking Wheel/Disc Contact
26129
1
2
3
4
1
