YP625A and YP825A Fertilizer Plumbing (YP625A S/N B1044Q+) (YP825A S/N B1015S+)
(YP625A shown - 625 & 825 systems differ only in tank capacity and drop line count)
Figure 133

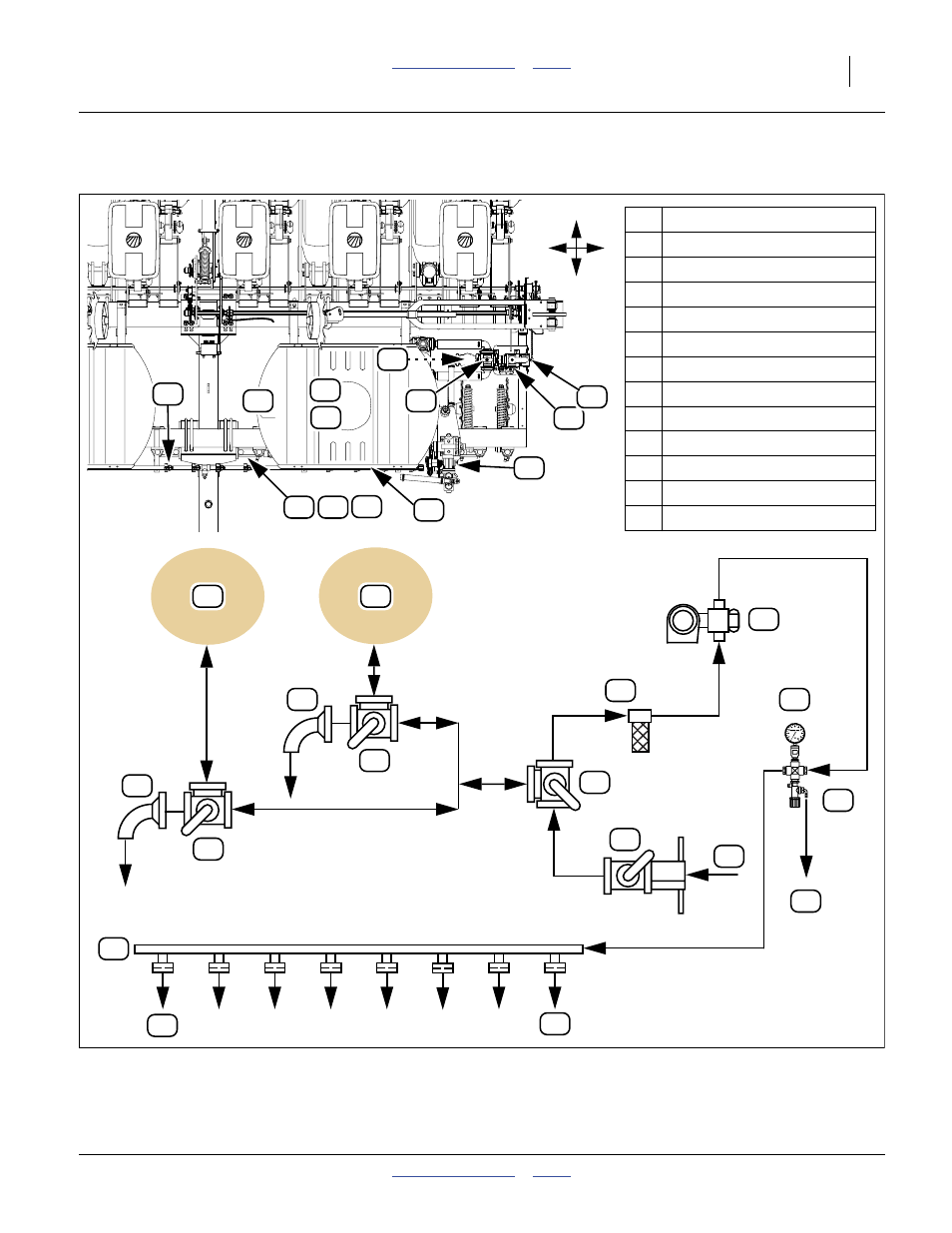

Fertilizer Plumbing - Dual Tank System
31976
31976
F
B
L R
12
11 23
15
17
13
14
16
22 19 20 21
18
.eps
85%
11 Quick-Fill Inlet
12 Inlet Shutoff Valve
13 Main Selector Valve
14 Tank Discharge Line Valve
15 Tank
16 Tank Drain Line
17 Strainer
18 Pump
19 Relief Valve
20 Pressure Gauge
21 Relief Dump Line
22 Boom
23 Drop line Orifices
