Refer to Figure 13
2. Move the hydraulic lever to activate the tool
bar lock cylinders, transport lock cylinders,
Refer to Figure 14
3. the caster and the swivel lock cylinders thus
allowing the drill to be folded.
Refer to Figure 15
4. Remove lock channels from all six wheel cyl-
inders. Store lock channels.
5. Activate hydraulics to unfold drill.
6. Lower drill.
Rephasing Lift System
Over a period of normal use the cylinders may get
out of phase. This will cause some drill sections to
run higher than others. To rephase cylinders:
1. Raise the implement completely and hold the
hydraulic remote lever on for several seconds
until all cylinders are fully extended. Do this
every 3 0r 4 times you raise drill out of ground.
2. When all cylinders are fully extended, mo-
mentarily reverse hydraulic remote lever to re-
tract system 1/2 inch to maintain levelness.

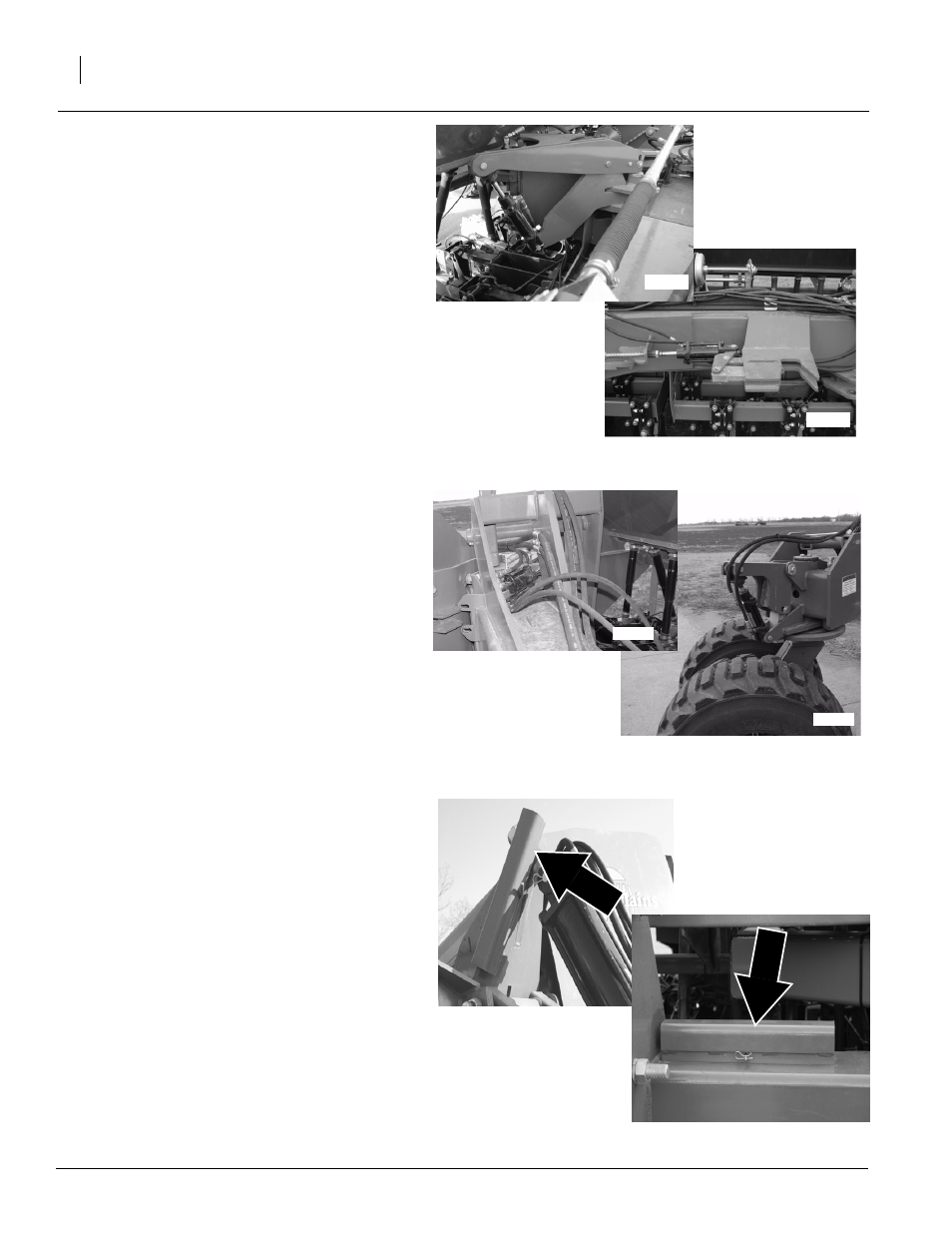

Figure 13
Tool Bar Lock and Transport Lock Cylinders
21845
21841
Figure 14
Caster and Swivel Lock Cylinders
21843
21842
20268
20269
Figure 15
Removing lock channels
