Electrical Hookup

Refer to Figure 7
Your fertilizer applicator is equipped with systems that
require separate electrical connections. For future
reference, note any optional connectors on this checklist.

Lighting connector (standard)

Console flow harness connector (optional)

Console pressure connector (optional)

Console speed connector (optional, and only if

sensor/radar is mounted on implement)

❑ ___________________________
Make sure tractor is shut down with accessory power off
before making connections.

These connections may be made in any order. The key
requirement is that all connections be made prior to
fertilizer applicator movement.

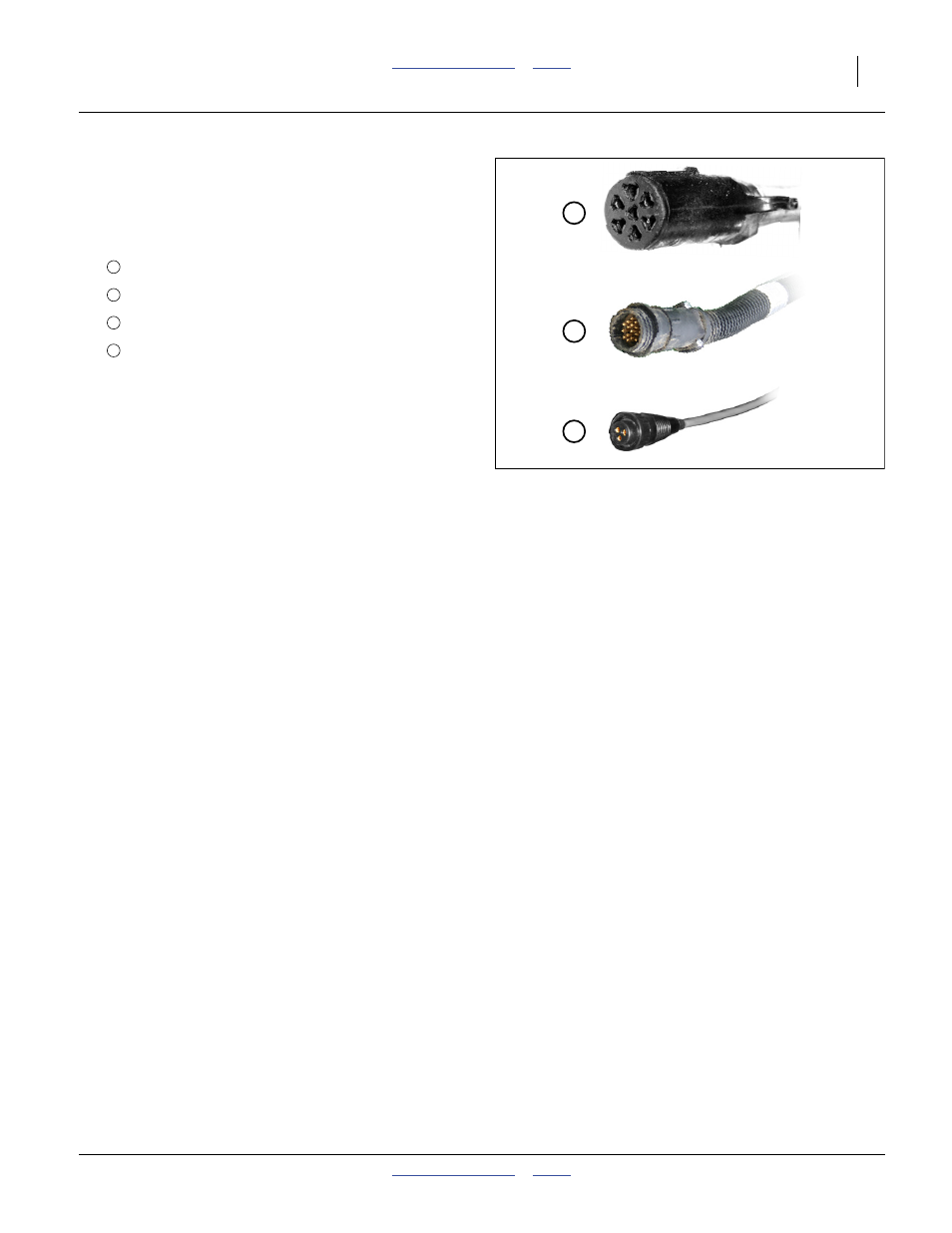

Figure 7

Connector Identification

25236
31083
32019

1

2

3

1

2

3
