Great Plains Manufacturing, Inc.
Appendix B - Option Setup
111
2012-03-28
407-776M
Console Installation

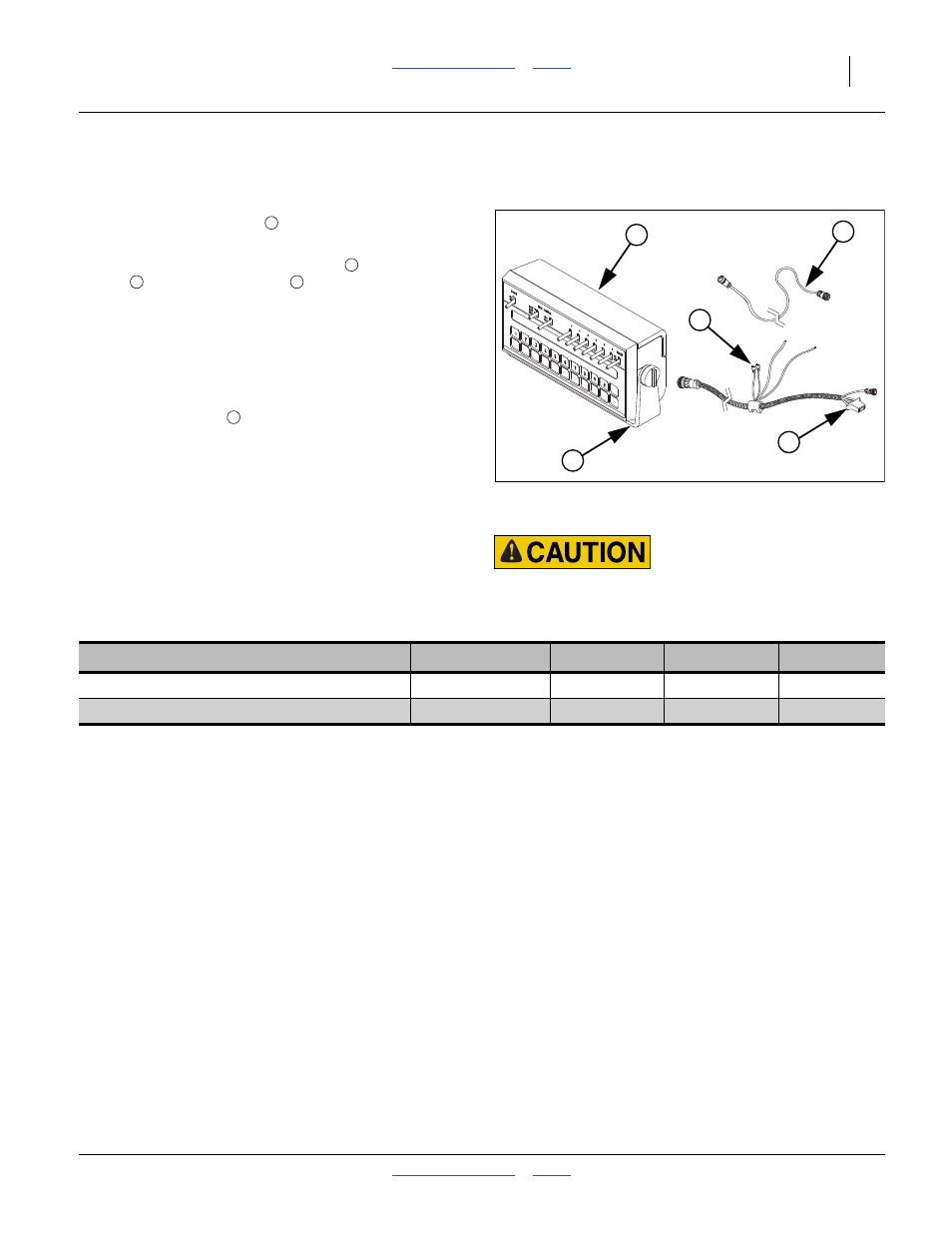

Refer to Figure 65
The applicator’s optional Raven SCS-450 flow controller
system includes a console
that needs to be mounted
in the cab of the tractor to be used with the applicator.
The monitor includes cables for power
, speed
sensor
and sensor harness
. Installation
instructions are found in the included 016-0159-831
Raven SCS-450 Installation, Operation and Service
manual manual.
Power color code is:
+ positive: red
- negative: black
The included bracket
requires customer-supplied
fasteners.
The SCS 450 requires some initial data about your
sprayer and tractor prior to first use.
This data is retained as long as the SCS 450 remains
connected to battery power. If power is removed for
electrical work, long term tractor parking or welding, the
data is lost and must be re-entered.
Consult the Raven manual for display interpretation and
keyboard procedures.
The following data is needed for Raven setup:
Model
Description
BOOM CAL
SPEED CAL METER CAL VALVE CAL
40-Foot, 16-Row, 30 inch
480in (1219.2 cm)
598
a
a. Suggested initial value. Refine using calibration procedure in Raven SCS 450 manual.
Cable Tag
b
b. This value is printed on a durable tag attached to the meter cable.
Body Label
c
c. This value, for example “2123”, is printed on the label on the valve body.
42.5-Foot, 17-Row, 30 inch
510in (1295.4 cm)
598
a
Cable Tag
b
Body Label
c
Transport and Field Safety Risk:
Mount the module so it is easy to monitor during application,
but does not interfere with safe operation of the tractor in the
field or on public roads.
Figure 65
SCS-450 Tractor Components
27271
1
3
4
2
5
1
2
3
4
5
