62 YP1220 Great Plains Manufacturing, Inc.
401-506M 03/14/2012
Row-Unit Side Wheels

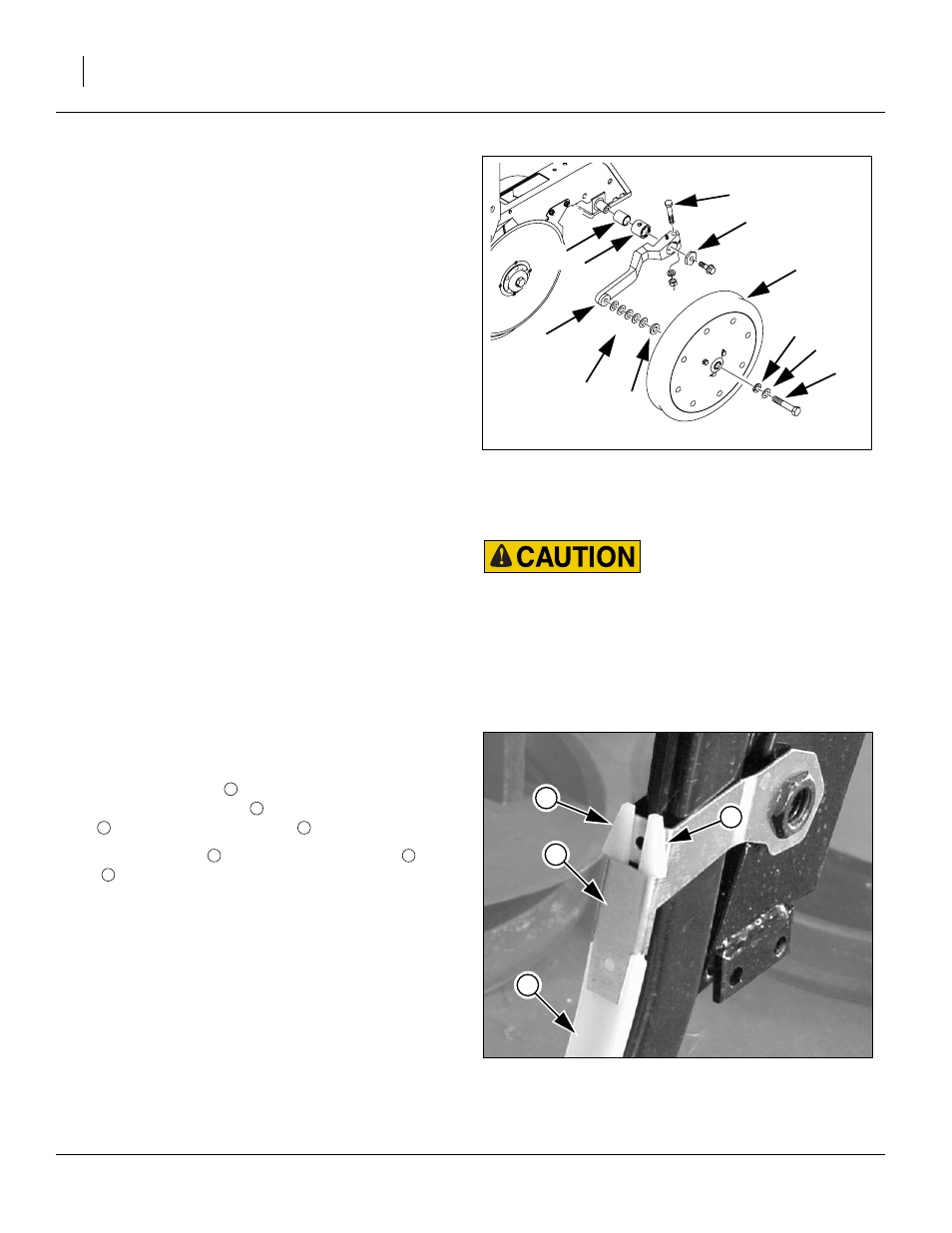

Figure 72
1.
Lift opener side wheel off the ground. Move tire in
and out to check for end play. Check for roughness in
bearing by rotating wheel. If bearings are rough,
inspect and replace if necessary.
2. The side wheels are preset at the factory. However,
because of normal wear it may become necessary to
make adjustments so the wheel remains close to the
disk. To prevent plugging, loosen clamp bolt
➆
and
slide arm inward to take up gap between side wheel
and disk blade. If more adjustment is needed, go to
step 3.
3. Remove bolt
➉
and wheel
➁
. Remove shims
➀
from
the inside of wheel
➁
and place them on the outside
of wheel. Always place removed shims from the
inside to the outside. When installed, wheel should
turn freely and not hit the arm at the curve. Do not
add any more shims than necessary.
4. Disassemble side gauge wheel arm
➂
from unit.
Remove bushing
➃
from sleeve
➄
and check for
wear. If necessary, replace bushing.
5. When reinstalling side gauge wheels, align tab on
hex adjustment
➅
with notch in bushing. Replace
bolt and tighten.
6. Adjust side gauge wheels. See “Side Gauge Wheel
Adjustments” on page 45.
Sharp Object Hazard:
Disk edges are sharp. Be careful when working in this area.
Seed Flap Replacement
Refer to Figure 73
To replace a seed flap
use a needle nose or similar
tool and squeeze the tabs together. Pull plastic seed
flap down out of metal bracket .
Push new seed flap up through metal bracket until
tabs on seed flap snap in place.
Figure 72
Adjusting Gauge Wheel Spacing
21894
➃➄
➆
➅
➂
{
➇
➀
➁
➉
➀
➈
Figure 73
Seed Tube Flap
19398
3
2
1
2
1
2
1 3
1 3
2
