Optional Monitor Mounting Plate
The Yield-Pro Planter® is supplied with an optional
mounting plate that may be used to mount the Point Row
Monitor, the Electro-hydraulic Control Valve, and the
DICKEY-john® Seed Monitor.
Refer to Figure 14
1.
Attach large suction cup included with mounting
plate to the top hole on the plate using bolt and lock
washer.
2. Place DICKEY-john® mounting bracket on mounting
plate. Secure bracket to plate in bottom two holes
directly below the suction cups. Use bolts and nuts to
install.
3. Remove mounting bracket from electro-hydraulic
valve control. Install mounting bracket to mounting
plate.
4. Attach point row monitor to mounting plate with 10-
32 x
5 ⁄
8
machine screws, lock washers, and nuts. Let
wires fall in the front of the plate.
5. Secure electro-hydraulic valve control to mounting
bracket on plate using 10-32 x
5 ⁄
8
machine screws,
lock washers, and nuts. Let wires fall in the front of
the plate.
6. Attach DICKEY-john® Monitor to DICKEY-john®
mounting bracket on plate. Thread monitor wires
through slot in plate. Trap all other wires between
DICKEY-john® monitor and mounting plate.

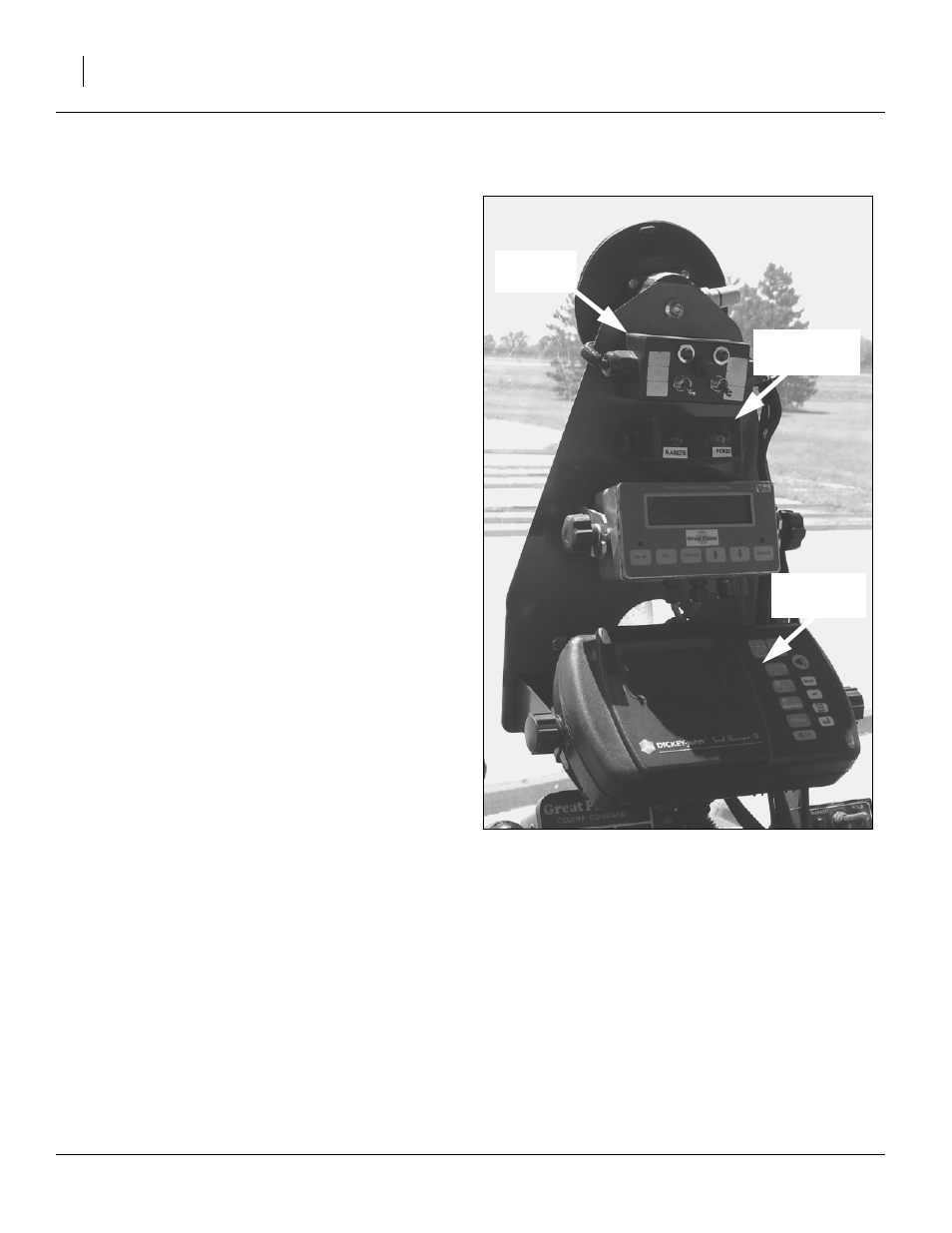

Figure 14
Optional Monitor Mounting Plate
23283
Point Row
Monitor
Electro-hydraulic
Valve Control
DICKEY-john®
Monitor
