16 YP1220 Great Plains Manufacturing, Inc.
401-506M 03/14/2012
Tongue Height
3. Set the initial tongue height, using 3 point or cylinder
of hydraulic tongue. Distance
➀
, measured at top of
tongue tube is:
46in above ground level.
4. Connect other hydraulic hoses to tractor remotes.
See “Hydraulic Hose Hookup” on page 13
5. Plug the planter light cable to the tractor.
6. Connect monitor lead to monitor harness.
7. Plug electric clutch cable to the switch control box
cable.
Note: Switch control boxes should be mounted in your
tractor cab in a location with easy access. Route
wiring harnesses with enough slack to allow for
tractor movement, especially on articulating trac-
tors.
Refer to Figure 8
8.
Remove the lower pin
➀
holding the parking stand
➁
. Swing the parking stand back and up until it is
above the rear hole
➂
. Place the holding pin in the
rear hole and allow the parking stand to rest on it.
This will be the transport position for the parking
stand.
9. Adjust the top link of a 3-point long enough so the
ball swivel does not bottom out when fully raised.
10. Secure hoses so they do not get caught in ball
swivel. Failure to do so could cause hose to be
crushed requiring hose replacement.

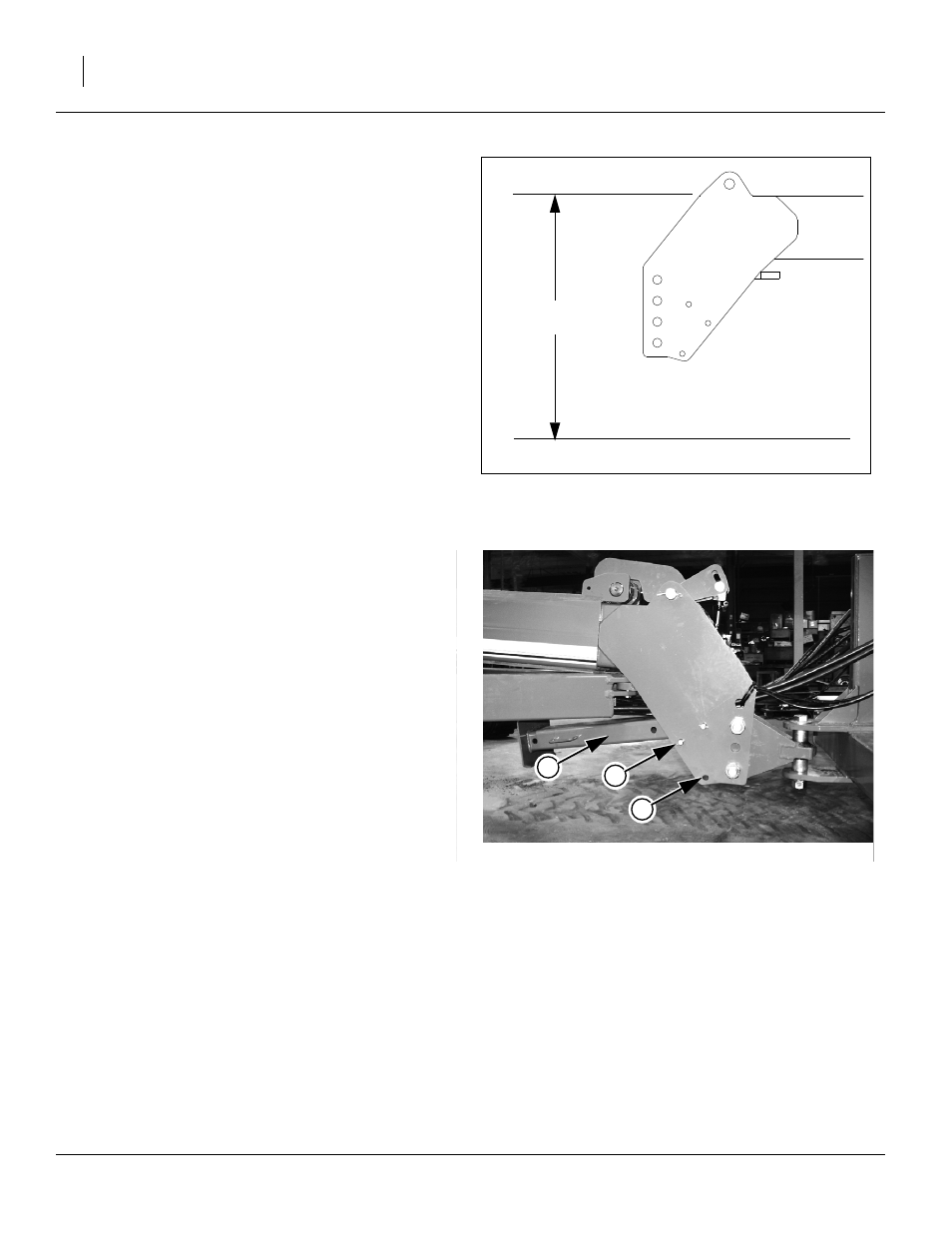

Figure 7
Base Height
27457
➀
Figure 8
Storing Parking Stand
22813
1
3
2
