Great Plains Manufacturing, Inc. Operating Instructions 25
03/14/2012 401-506M
Refer to Figure 18 through Figure 21 on page 23.
9.
Remove lift cylinder transport lock channels from
gauge wheels and center frame. Return transport
lock channels to storage area.
10. Activate lift hydraulics and lower planter.
11. Set electronic valve selector switch in tractor to
“MARKER” to activate marker hydraulics.
12. Switch drive-line clutches on.
Changing the Seed Box or Hopper
1. Shut off fan before changing boxes.
2. Park the planter on level ground with enough room to
maneuver a tractor with front-end loader around it.
3. Place tractor in park, shut off engine, and remove the
key.
4. Close the slide gate.
Refer to Figure 25
5.
Remove the walkboard lock pin
➀
.
6. Swing walkboard
➀
all the way to the right.
Note: If planter is lowered, walkboard
➀
will stay open by
itself once fully opened.
Refer to Figure 26
7.
Remove the pins restraining the seed box or bulk
hopper on the frame. (There are two lock pins one
each on diagonal corners).
Refer to Figure 27
Align the forks with the slots in the rear of the seed box or
hopper and slowly drive forward until forks are com-
pletely under the seed box or hopper.
Slowly lift the empty seed box or hopper from the planter.
Carefully install full seed box or an empty hopper on the
planter. Install box restraining pins in opposite corners.
Note: Bulk hopper frame has two sets of lifting points.
One set is for normal loading and is tubes. The oth-
er set is to allow picking it up from the side for plac-
ing in storage near a wall.
Tipping and Overload Hazard:
Never attempt to move a seed hopper while loaded. It exceeds
the lifting capacity of front end loaders and most fork lifts.
Always fill seed hopper with seed after it has been securely
placed back on the air box.
Note: It may be necessary to adjust the seal on top of air
box to get full contact with the bottom of seed box or
hoppers. This is a one-time adjustment.

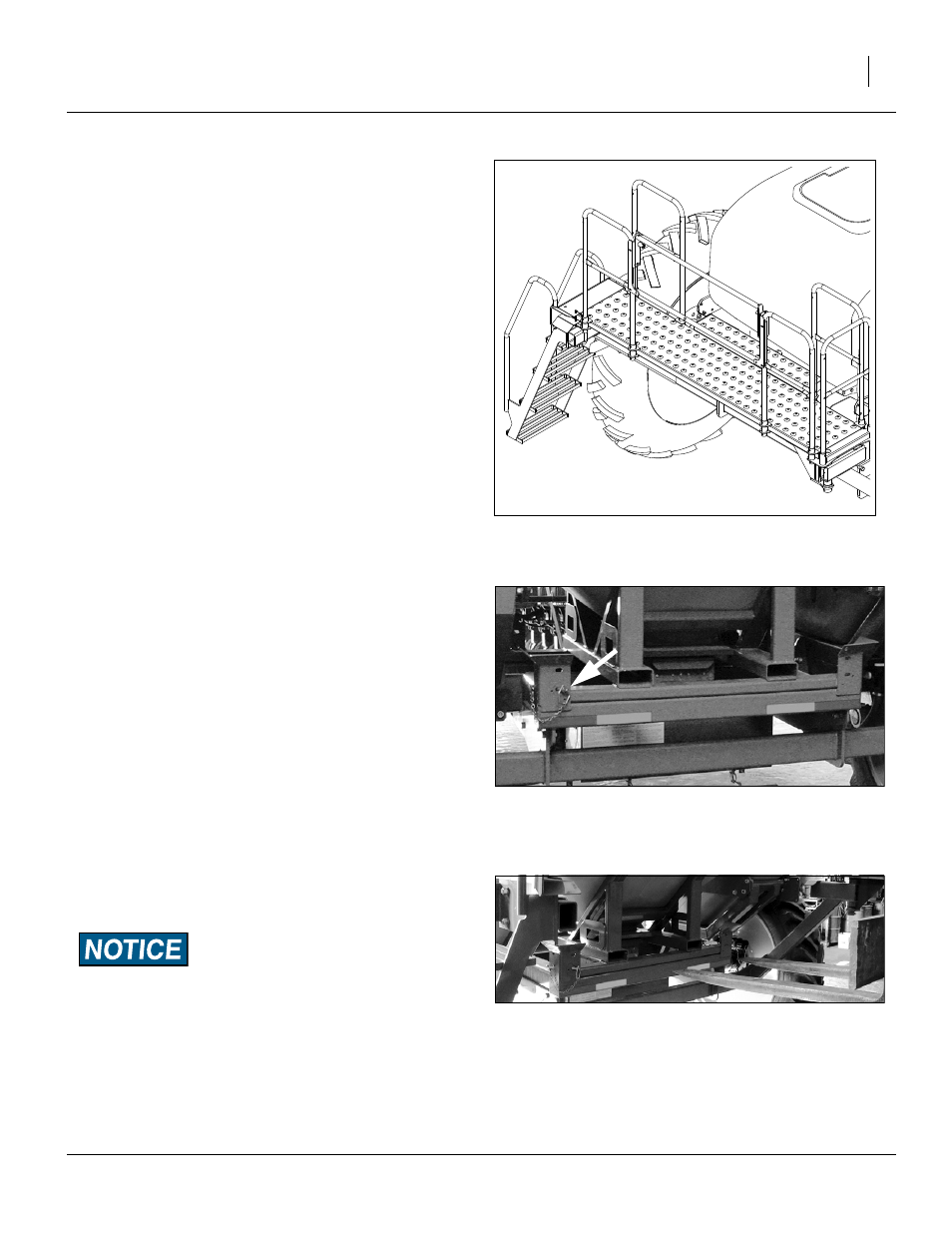

Figure 25
Walkboard Lock Pin
27453
Figure 26
Seed Box Pins
25036
Figure 27
Fork-Lifting Seed Box
25036
