Great Plains Manufacturing, Inc.
Operating Instructions
27
2013-09-24
196-444M
Transport

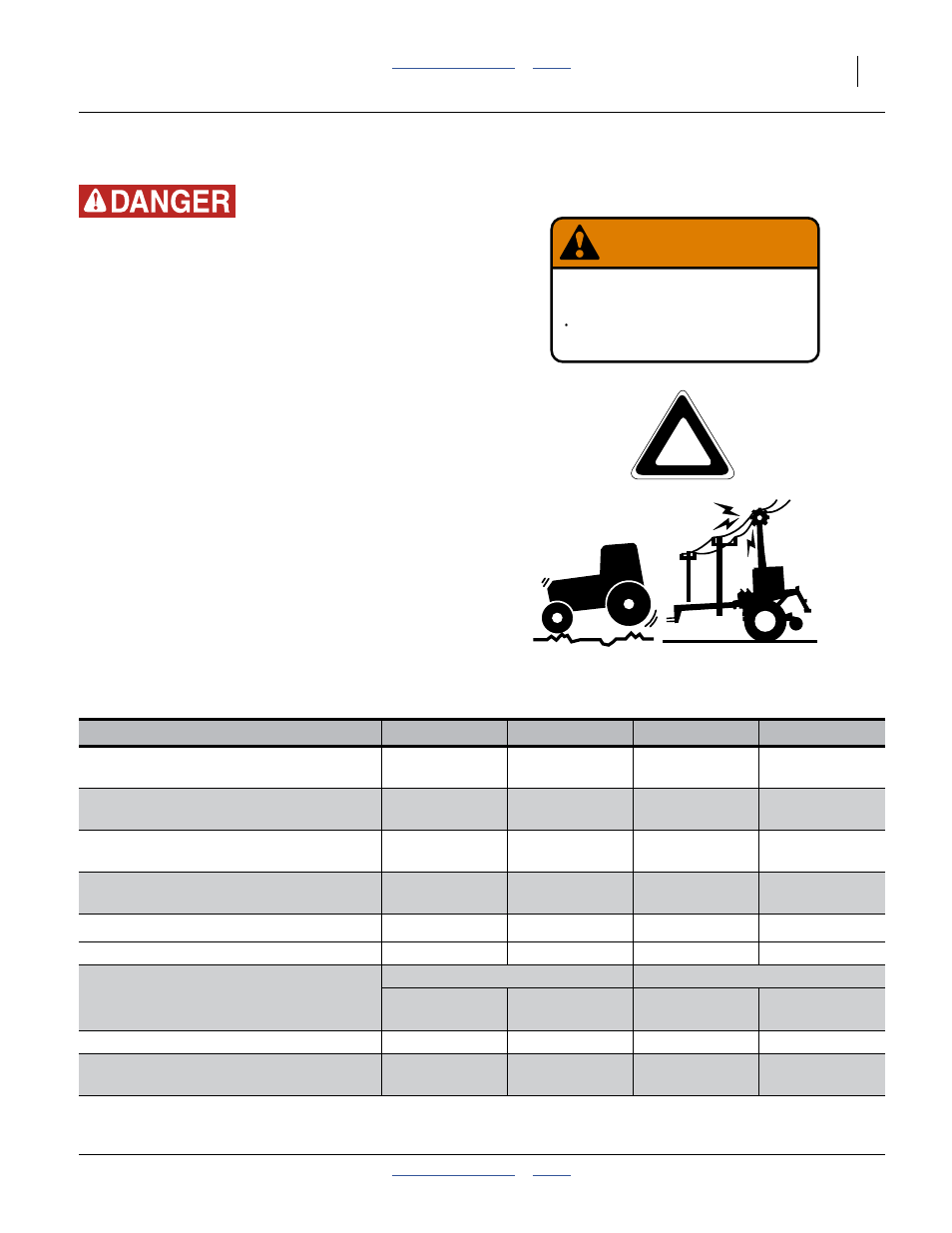

Electrocution Hazard: To prevent serious injury or death from
electric shock, keep clear of overhead power lines when
transporting, folding, unfolding or operating all air drill
components. Machine is not grounded. At higher voltages,
electrocution can occur without direct contact.
Great Plains recommends transporting the complete air
drill assembly with cart empty. Although designed for
highway movement when loaded, the additional weight
of seed may cause the complete air drill assembly to
exceed the rated ability of the tractor, makes the
complete air drill assembly more difficult to control and
stop, and increases wear on cart tires and wheel
bearings.
Towing the drill at high speeds or with a vehicle that is not
heavy enough can lead to loss of vehicle control. Loss of vehi-
cle control can lead to serious road accidents, injury and
death. To reduce the hazard:
▲ Do not exceed 20 mph (32 kph).
▲ Do not tow a complete air drill assembly that weighs more
than 1.5 times the weight of the towing vehicle. (The tractor
must weigh at least
2
⁄
3
or 67% of the complete air drill
assembly weight - see table below.)
Drill and Cart Weights* for 3N-4010HDA
Rows
7.5 in (18.9 cm)
10 in (24.8 cm)
7.5 in (18.9 cm)
10 in (24.8 cm)
Base 3N-4010HDA
(implement only)
30896 lbs
14014 kg
28736 lbs
13034 kg
30896 lbs
14014 kg
28736 lbs
13034 kg
Add for Frame-Mounted Coulters
a
a. For Unit-Mounted Coulters, use 2640 lbs (1197kg) for the model -6675 and 1920 lbs (871kg) for the -4810.
4026 lbs
(1826 kg)
2928 lbs
(1328 kg)
4026 lbs
(1826 kg)
2928 lbs
(1328 kg)
Add for Dual Markers
1860 lbs
844 kg
1860 lbs
844 kg
1860 lbs
844 kg
1860 lbs
844 kg
Add for extra Weights
(maximum of 3 sets)
1000 lbs per set
(454 kg) per set
1000 lbs per set
(454 kg) per set
1000 lbs per set
(454 kg) per set
1000 lbs per set
(454 kg) per set
Your Weight Kits
b
b. Cells left blank. Enter the values for your configuration.
Total: Your Implement Only
ADC2350B Air Cart
Cart Empty
Cart Full
9800 lbs
4445 kg
9800 lbs
4445 kg
34000 lbs
15422 kg
34000 lbs
15422 kg
Total: Your Assembly Configurationb
Example:
Maximum Possible Configurations
49703 lbs
22545 kg
46445 lbs
21067 kg
73903 lbs
33522 kg
70645 lbs
32044 kg
818-188C Rev. C
Do Not exceed 20 mph maximum transport
speed. Loss of vehicle control and/or machine
can result.
To Prevent Serious Injury or Death:
EXCESSIVE SPEED HAZARD
WARNING
