Page 24
20
3N-4010HDA
Great Plains Manufacturing, Inc.
196-444M
2013-09-24
Install Seed Monitor Terminal
The ADC2350B cart’s standard seed monitor system
includes a virtual terminal that must be mounted in the
tractor cab. As supplied by DICKEY-john, the kit includes
an “H” bracket for any modules, and a ball swivel for
mounting the bracket in the tractor.
Mount the modules so that they are easy to observe during
planting, but do not interfere with safe operation of the tractor
in the field or on public roads.
The ball swivel includes four 10-32 screws. You or your
dealer must provide the mounting holes for the screws.
Your dealer may have alternate suction cup or clamping
brackets available if you prefer to avoid drilling holes.
See the DICKEY-john manual for harness connections.
The monitor needs to be configured with information
about your air drill, after hitching and electrical
connections. See “Setup Seed Monitor for Air Drill” in
air cart Operator manual.
Once configured for your air drill and your material, the
seed monitor performs the following functions:
On the Air Cart:
• Fan Speed monitoring
• Hopper material level monitoring
• Hopper air pressure monitoring
• Meter rate monitoring
• Ground speed monitoring
On the Drill:
• Drill lift switch monitoring
• Seed flow blockage detection (optional)

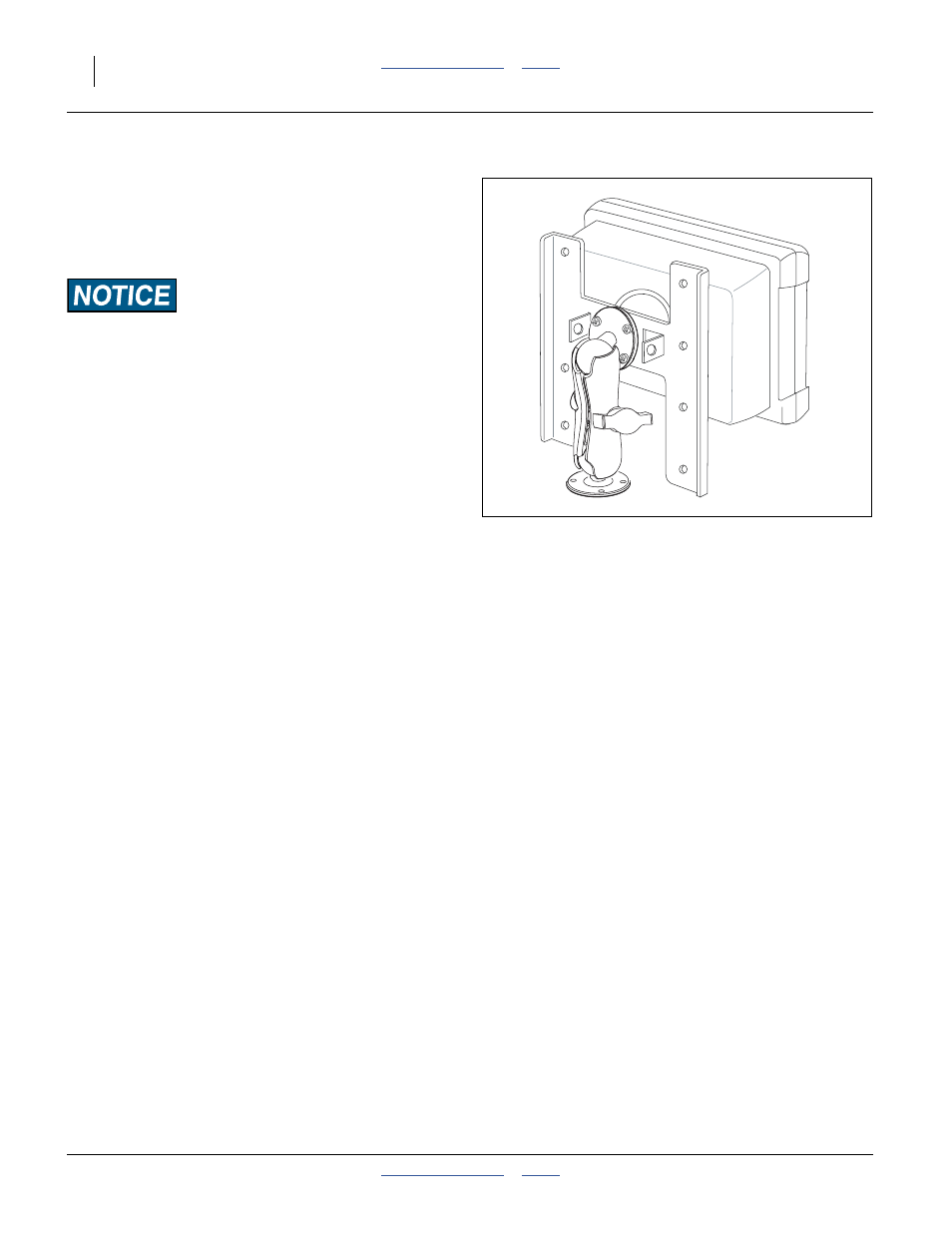

Figure 12
Terminal and Mount Hardware
26429
