Integrating Panorama with DigiLinX
5-3
All specifications subject to change without notification. All rights reserved. Copyright © 2006 NetStreams
Main +1 512.977-9393 / fax +1 512.977.9398 / Toll Free Technical Support +1 866-353-3496
3600 W. Parmer Lane, Suite 100; Austin, TX 7872
The following procedures show how to integrate Panorama and DigiLinX systems.
Figure 5-2 shows Panorama integrated with DigiLinX using VP700s for IR pass-
through. If using VP500, there is no IR pass-through from the displays and you do not
need to connect IR extension cables between the Panorama and the MediaLinX.
For more detail on the ports on the rear panel of the PAN6400 VDC, see

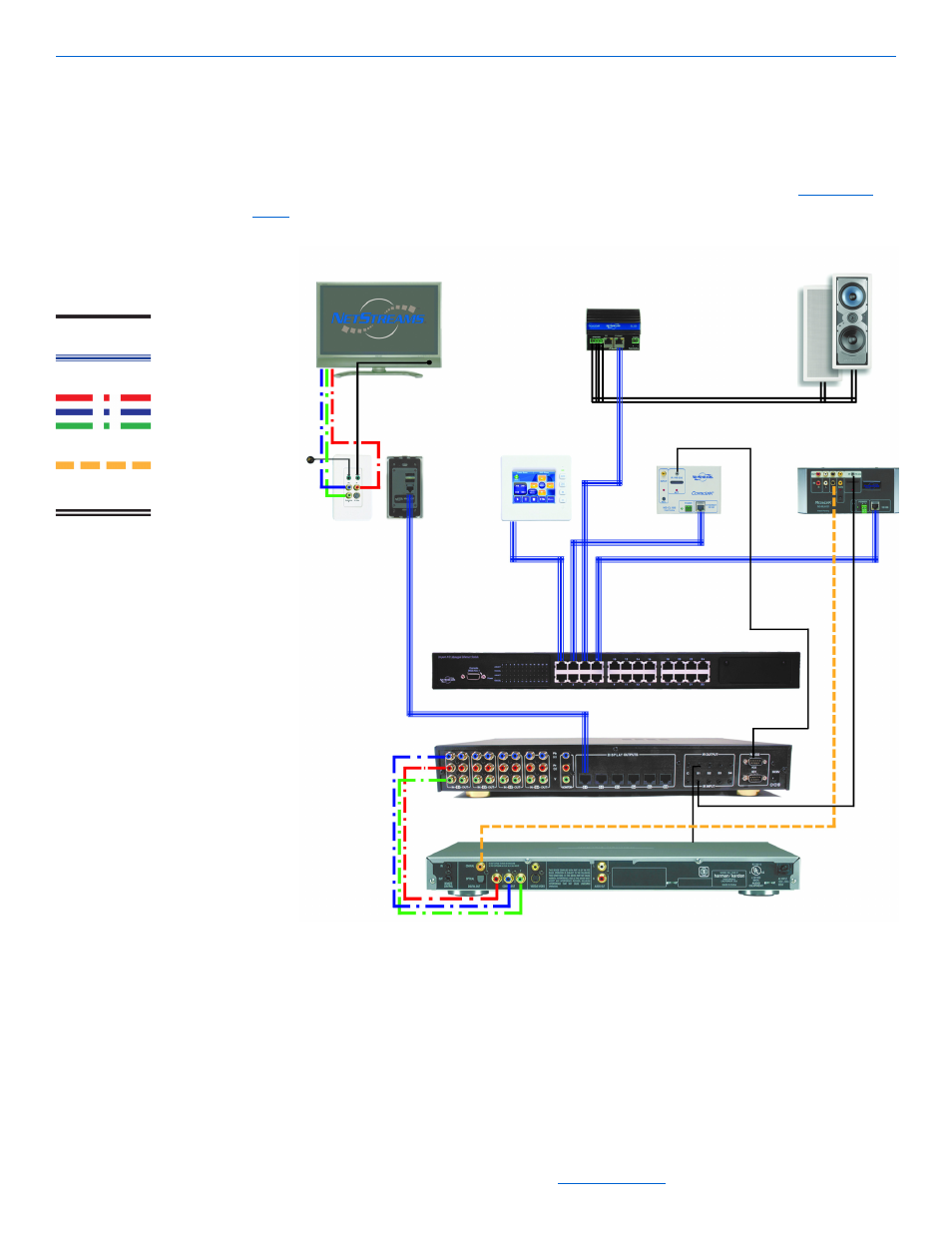

Figure 5-2
Integrated with DigiLinX with IR pass-through from displays
The following procedure focuses on the steps integral to integrating Panorama and
DigiLinX. For complete instructions on installing a DigiLinX system, see the DigiLinX
Installation & Design Guide from the dealer section of the NetStreams
Legend
IR Emitter and
null modem
CAT5
Component
Coaxial audio
Speaker
PAN6400 VDC
Source
Display
PANVP700
Speakers
TouchLinX
SpeakerLinX
MediaLinX
SwitchLinX
IR
Receiver
ControLinX
w
Front
Back
IR Emitter
IR Emitter
e
r
t
y
u
i
o
a
s
s
s
s
